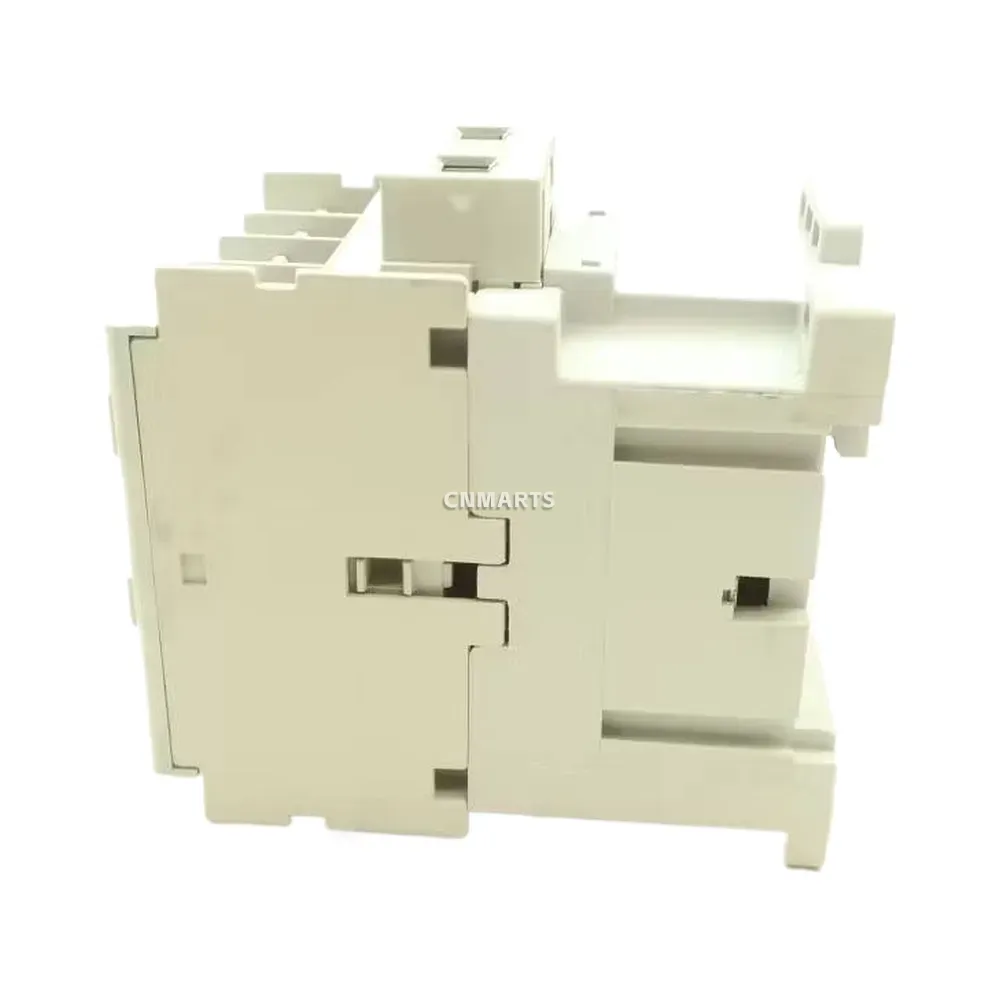

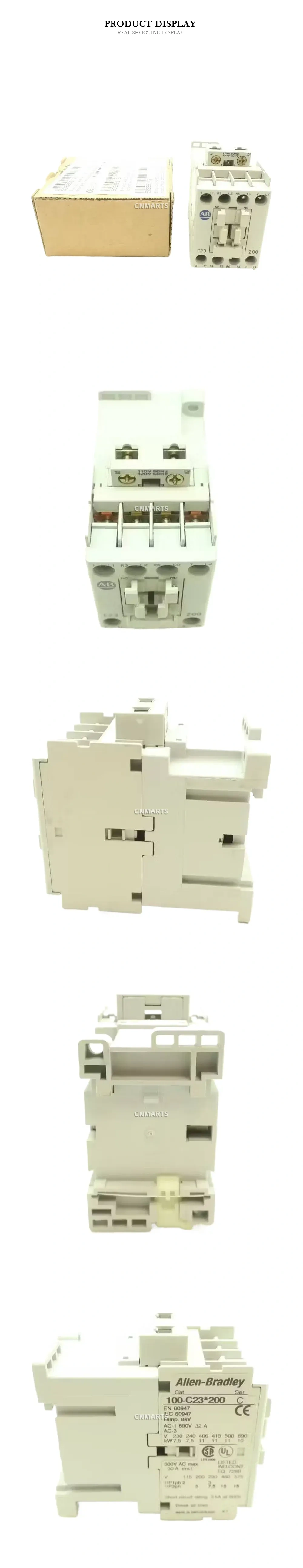

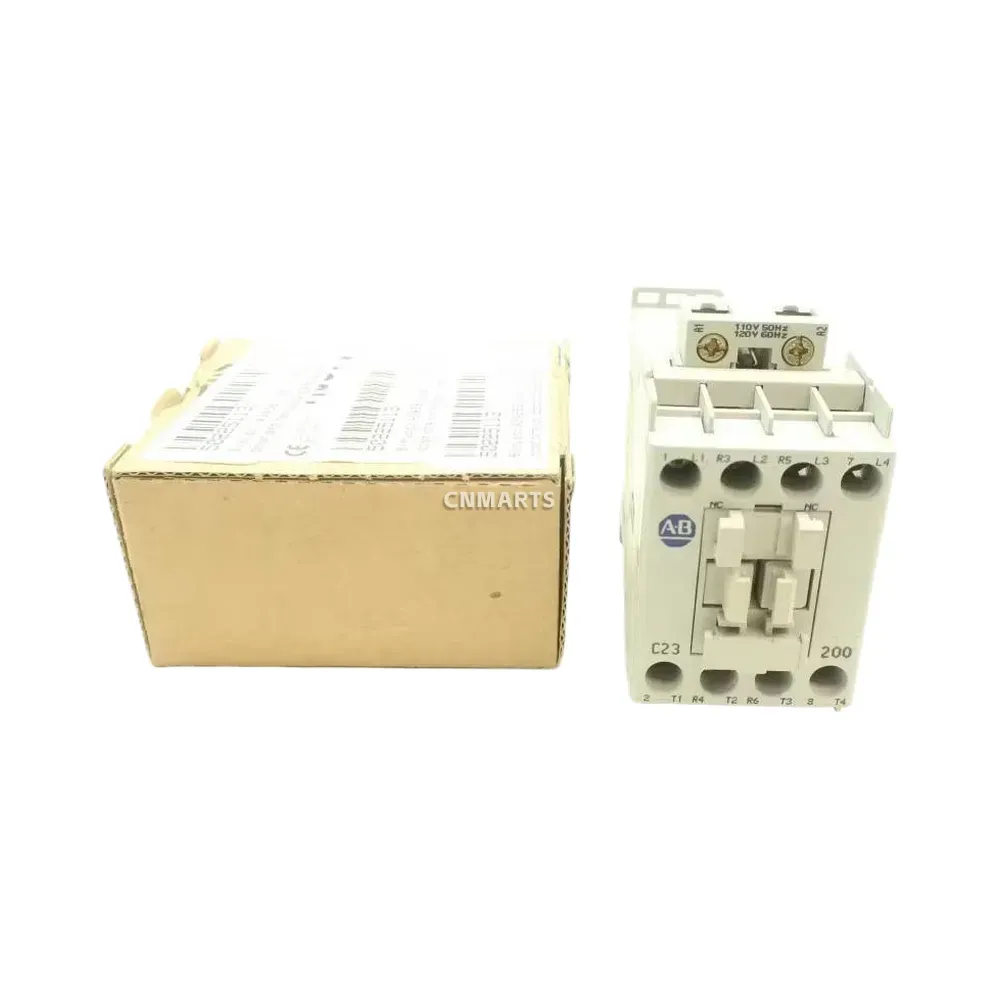

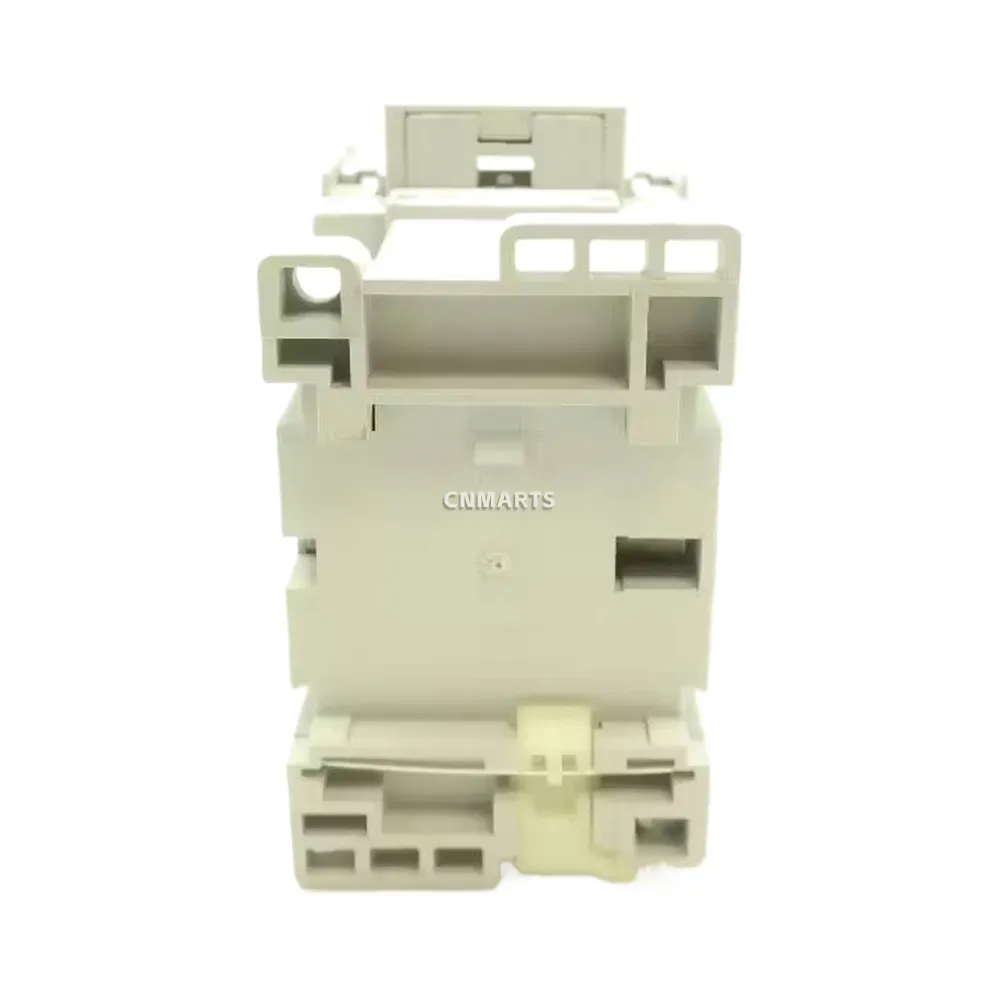

Allen-Bradley 100-C23D200 AC Contactor
The Allen-Bradley 100-C23D200 is a robust and highly reliable Bulletin 100-C IEC AC contactor designed for demanding industrial motor control applications. Built on the compact C23 frame, this contactor features an AC control coil rated for 110V at 50Hz and 120V at 60Hz. It is engineered to comply with stringent EN 60947 and IEC 60947 standards, offering an 8 kV rated impulse withstand voltage (Uimp) for enhanced electrical safety. The unit delivers exceptional performance with an AC-1 rating of 32 A at 690V and AC-3 motor load ratings up to 11 kW at 400/415/500V. Additionally, it is UL Listed and CSA certified, supporting up to 15 HP in 3-phase 575V systems. Complete with normally closed (NC) auxiliary contact blocks, the 100-C23D200 is an ideal solution for versatile and efficient industrial automation.
Technical Specifications:
- Brand: Allen-Bradley
- Model/Catalog Number: 100-C23D200 (Series C)

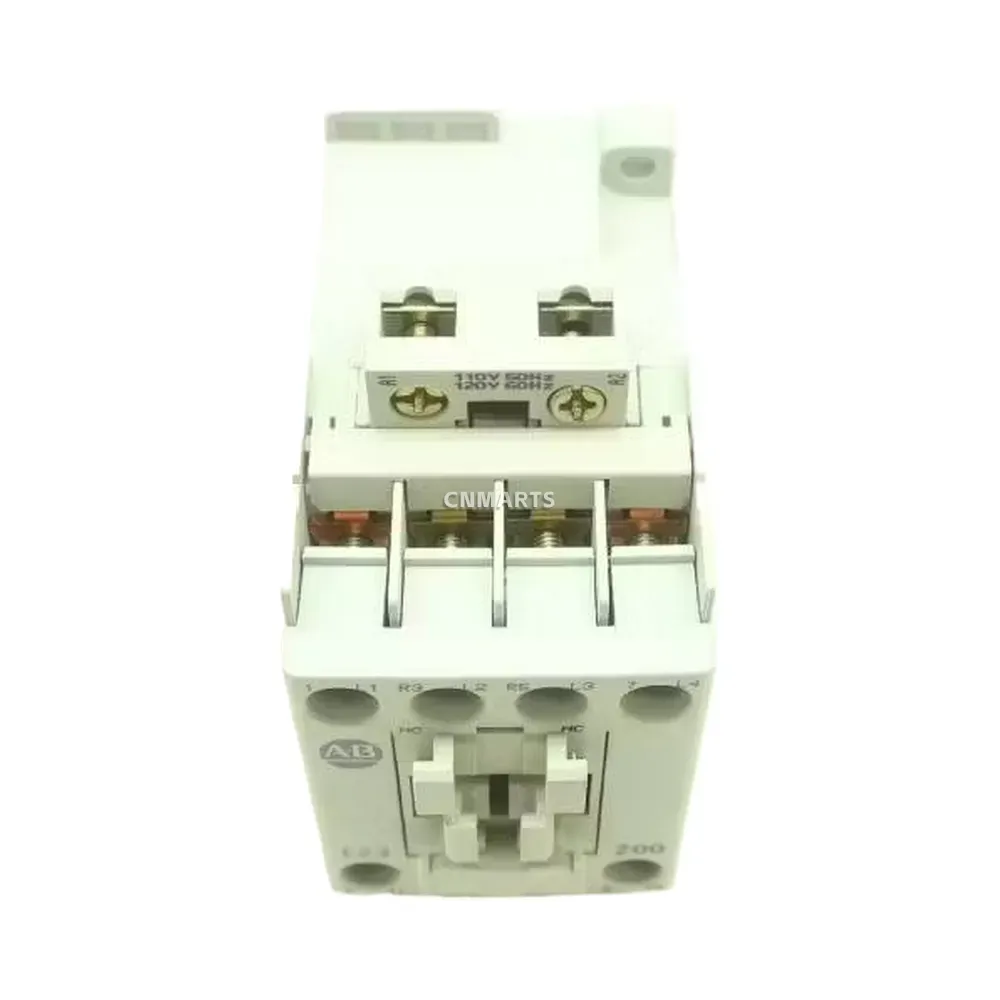

- Control Coil Voltage: 110V AC 50Hz / 120V AC 60Hz
- AC-1 Rating: 32 A at 690V
- AC-3 Motor Ratings: 7.5 kW @ 230/240V; 11 kW @ 400/415/500V; 10 kW @ 690V
- UL/CSA Horsepower (3-Phase): 5 HP @ 200V; 7.5 HP @ 230V; 10 HP @ 460V; 15 HP @ 575V
- UL/CSA Horsepower (1-Phase): 2 HP @ 115V

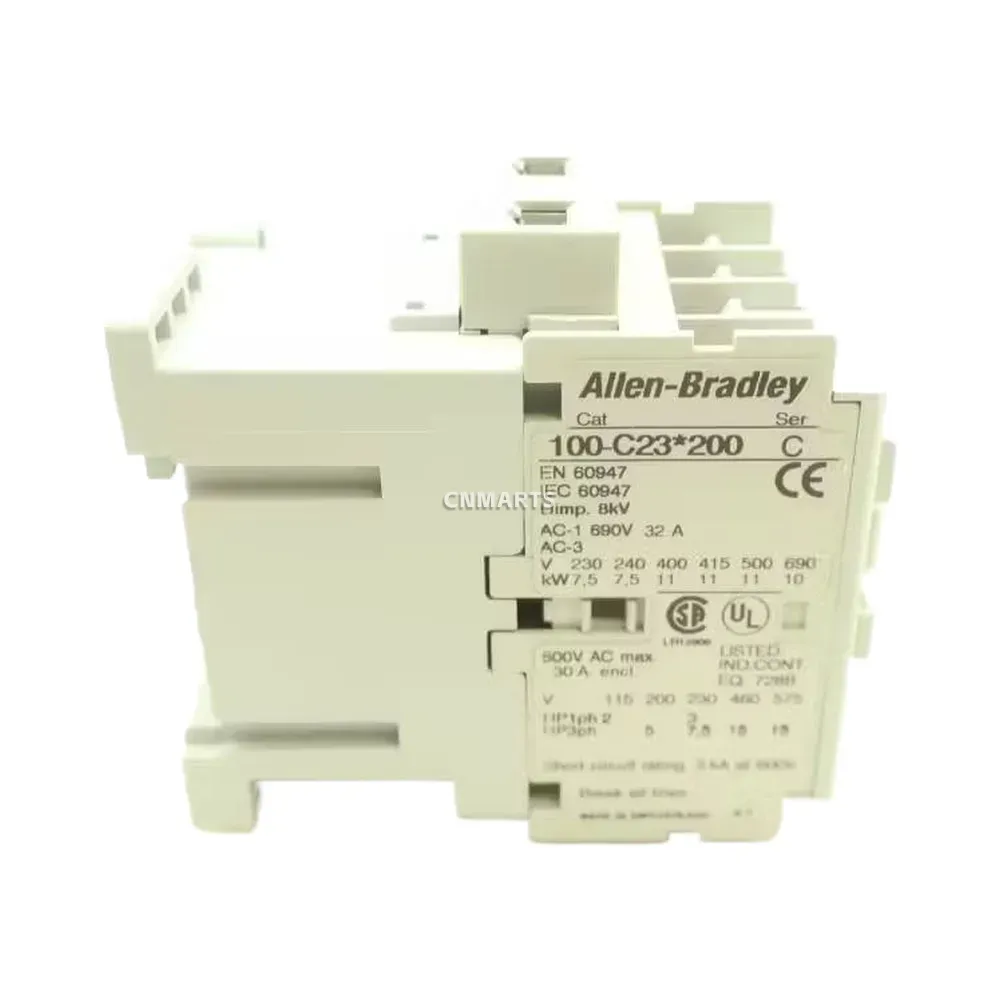

- Rated Impulse Withstand Voltage (Uimp): 8 kV
- Short Circuit Rating: 5 kA at 600V
- Certifications: CE, CSA, UL Listed (IND. CONT. EQ. 7288), EN/IEC 60947
| Brand | Allen-Bradley |
|---|---|
| Model | 100-C23D200 |
