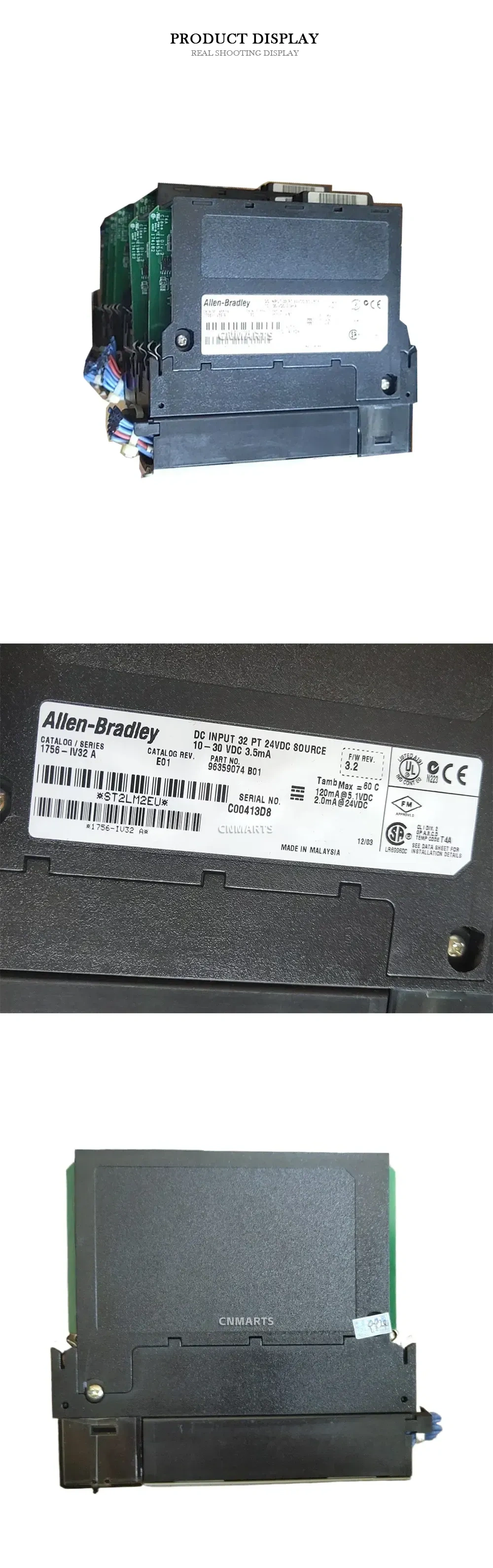

Allen-Bradley 1756-IV32 A DC Input Module
The Allen-Bradley 1756-IV32 Series A is a robust and highly efficient ControlLogix 32-point DC sourcing input module designed for industrial automation systems. Operating across a voltage range of 10 to 30 VDC, this module delivers precise digital signal monitoring for your programmable logic controller (PLC) chassis. It features a low current consumption of 3.5mA per point and operates safely in ambient environments up to 60°C. Engineered for reliability, the 1756-IV32 carries comprehensive global certifications including UL, CE, CSA, and FM approval for Class I, Division 2 hazardous locations, making it an ideal choice for demanding manufacturing and processing applications.
Technical Specifications:
- Brand: Allen-Bradley
- Model/Catalog Number: 1756-IV32 Series A
- Module Type: ControlLogix DC Sourcing Input Module
- Number of Inputs: 32 Points
- Operating Voltage Range: 10-30 VDC
- Nominal Input Current: 3.5mA per point
- Backplane Current Draw @ 5.1VDC: 120mA
- Backplane Current Draw @ 24VDC: 2.0mA
- Firmware Revision: 3.2
- Maximum Ambient Temperature: 60°C
- Certifications & Approvals: UL Listed (Ind. Cont. Eq. N223), CE, FM Approved, CSA LR69960C, CL I DIV 2 GP A,B,C,D TEMP CODE T4A
| Brand | Allen-Bradley |
|---|---|
| Model | 1756-IV32 A |
