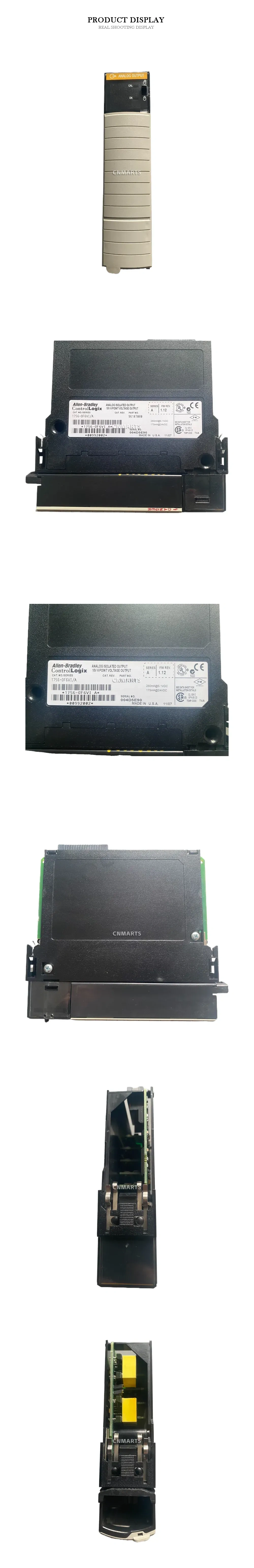

Allen-Bradley 1756-OF6VI/A Analog Isolated Output Module
The Allen-Bradley 1756-OF6VI Series A is a highly reliable ControlLogix analog isolated voltage output module designed for demanding industrial automation applications. This module features 6 individually isolated voltage outputs capable of delivering precise 10V signals to field devices. It is engineered with built-in calibration (CAL) and module status (OK) indicators for simplified troubleshooting, monitoring, and maintenance. With a backplane current requirement of 250mA at 5.1VDC and 175mA at 24VDC, it integrates seamlessly into standard ControlLogix chassis configurations. Built for both standard and hazardous industrial environments, this module carries comprehensive certifications including UL, CE, FM, and CSA Class I, Division 2 with a T4A temperature code.
Technical Specifications:
- Brand: Allen-Bradley
- Catalog Number: 1756-OF6VI/A (Series A)
- Module Type: Analog Isolated Voltage Output Module
- Platform: ControlLogix
- Number of Outputs: 6 Isolated Points (10V Voltage Output)
- Backplane Current (5.1V DC): 250 mA
- Backplane Current (24V DC): 175 mA
- Indicators: Calibration (CAL) and Status (OK)
- Firmware Revision: 1.12
- Certifications: UL Listed (N223), CE, FM, CSA CL1 DIV2 GP A,B,C,D
- Temperature Code: T4A
| Brand | Allen-Bradley |
|---|---|
| Model | 1756-OF6VI/A |
