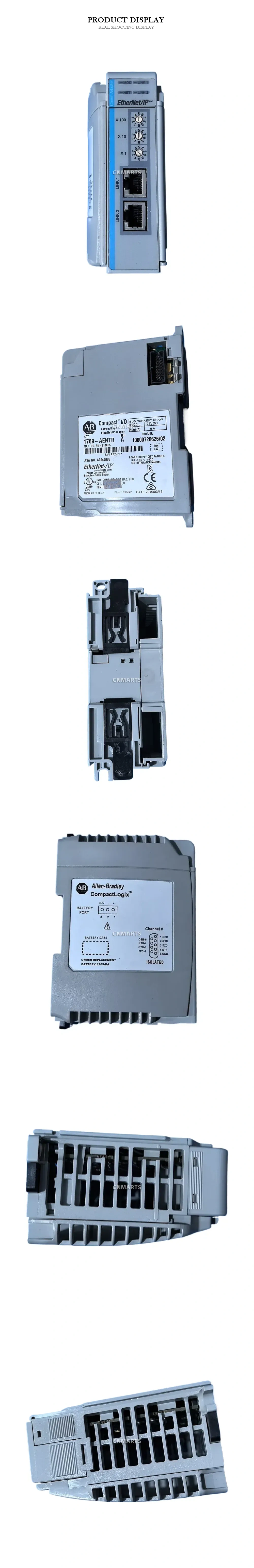

Allen-Bradley 1769-AENTR CompactLogix EtherNet/IP Adapter
The Allen-Bradley 1769-AENTR is a high-performance CompactLogix EtherNet/IP communication adapter module designed to seamlessly integrate your 1769 Compact I/O system into an EtherNet/IP network. This robust module features dual RJ45 Ethernet ports (LINK 1 and LINK 2), which enable flexible network topologies including Device Level Ring (DLR), linear, and traditional star configurations. It is equipped with three user-friendly rotary switches for quick and easy node address configuration (x100, x10, x1) and features comprehensive diagnostic LEDs for Module (MOD), Network (NET), and Link activity monitoring. Engineered for demanding industrial environments, the 1769-AENTR supports an operating temperature range of 0°C to 60°C and is certified for use in Hazardous Locations (Class I, Division 2). Drawing just 500mA at 5VDC from the backplane, it ensures highly efficient power consumption for your advanced automation control systems.
Technical Specifications:
- Brand: Allen-Bradley
- Model/Catalog Number: 1769-AENTR
- Module Type: CompactLogix EtherNet/IP Communication Adapter
- Communication Ports: Dual RJ45 Ethernet (LINK 1, LINK 2)
- Bus Current Draw: 500mA @ 5VDC / 0A @ 24VDC
- Backplane Power Consumption: 5Vdc at 500mA
- Addressing: Three rotary switches (x100, x10, x1)
- Operating Temperature: 0°C to +60°C (32°F to 140°F)
- Firmware Revision (FRN): 1.001 (Series A)
- Certifications: UL/cUL Listed, CE, EtherNet/IP Conformance Tested, Class I, Div 2, Groups A, B, C, D (Hazardous Locations)
| Brand | Allen-Bradley |
|---|---|
| Model | 1769-AENTR |
