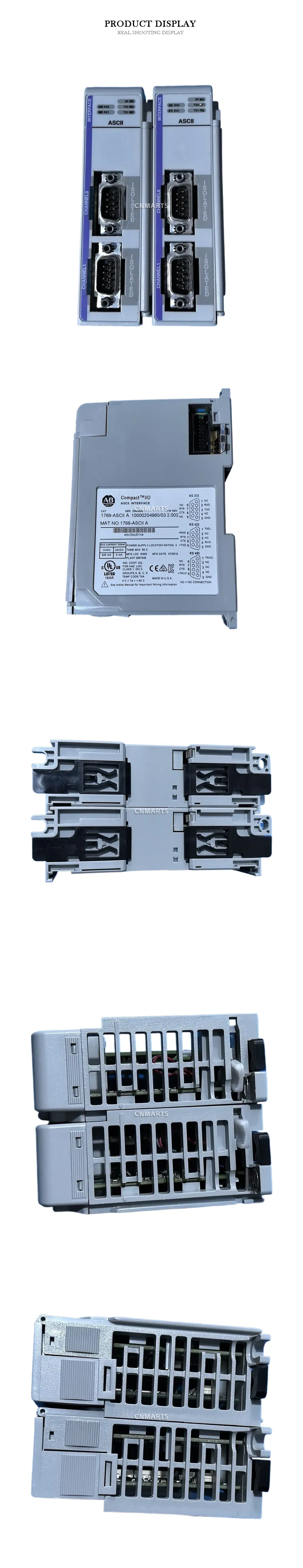

Allen-Bradley 1769-ASCII A Compact I/O ASCII Interface Module
The Allen-Bradley 1769-ASCII Series A is a highly versatile Compact I/O ASCII Interface Module engineered for seamless serial communication in industrial automation systems. Designed to integrate perfectly with CompactLogix and MicroLogix 1500 controllers, this module provides two fully isolated communication channels (Channel 0 and Channel 1) that support RS-232, RS-422, and RS-485 protocols. It is the ideal solution for connecting your control system to various serial devices such as barcode scanners, weigh scales, printers, and RFID readers. Built for robust and safe performance, the 1769-ASCII operates efficiently within a 0°C to 60°C temperature range and holds a Class 1, Division 2 rating for use in hazardous locations, ensuring reliable operation in the most demanding industrial environments.
Technical Specifications:
- Brand: Allen-Bradley
- Model/Catalog Number: 1769-ASCII Series A
- Module Type: Compact I/O ASCII Interface Module
- Communication Protocols: RS-232, RS-422, RS-485
- Number of Channels: 2 Isolated Channels
- Bus Current Draw (5V DC): 425 mA
- Bus Current Draw (24V DC): 0 mA
- Operating Temperature Range: 0°C to 60°C (32°F to 140°F)
- Hazardous Location Rating: Class 1, Div 2, Groups A, B, C, D (Temp Code T4A)
- Power Supply Distance Rating: 4
| Brand | Allen-Bradley |
|---|---|
| Model | 1769-ASCII A |
