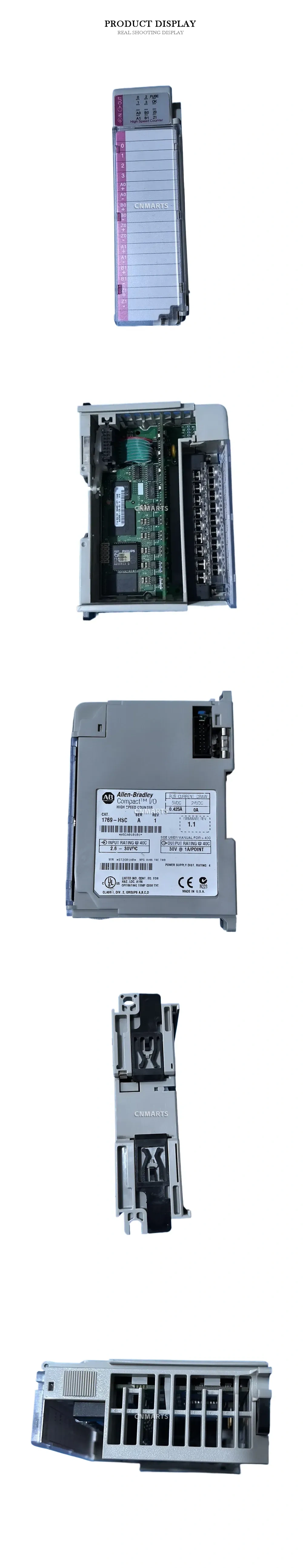

Allen-Bradley 1769-HSC High Speed Counter Module
The Allen-Bradley 1769-HSC is a high-performance Compact I/O High-Speed Counter Module designed for precision counting and control in industrial automation systems. Compatible with CompactLogix and MicroLogix 1500 controllers, this module features a versatile input rating of 2.6 to 30V DC and includes dedicated terminals for differential or single-ended counter inputs (A0, B0, Z0, A1, B1, Z1). It also provides four reliable outputs (0-3) rated at 30V DC at 1A per point. Built for rugged environments, the 1769-HSC is UL Listed for Class I, Division 2 hazardous locations, ensuring safe and consistent operation in demanding manufacturing applications.
Technical Specifications:
- Brand: Allen-Bradley
- Catalog Number: 1769-HSC (Compact I/O Series A)
- Input Rating: 2.6 – 30V DC (@ 40°C)
- Output Rating: 30V DC @ 1A per point (@ 40°C)
- Bus Current Draw: 0.425A @ 5V DC / 0A @ 24V DC
- Firmware Revision: 1.1
- Power Supply Distance Rating: 4
- Hazardous Location Rating: Class I, Div. 2, Groups A, B, C, D (Operating Temp. Code T5C)
| Brand | Allen-Bradley |
|---|---|
| Model | 1769-HSC |
