Allen-Bradley 1769-OB16 Compact I/O 16-Point DC Sourcing Output Module
The Allen-Bradley 1769-OB16 is a highly reliable Compact I/O 16-point DC sourcing output module designed for seamless integration into CompactLogix and MicroLogix 1500 control systems. Operating within a voltage range of 20.4 to 26.4V DC, this solid-state module is engineered to provide efficient control of field devices in demanding industrial automation environments. It features a maximum continuous current of 1.0A per point at 30°C and includes robust surge protection capable of handling 2A for 10ms. With its cULus listing and Class I, Division 2 hazardous location rating, the 1769-OB16 ensures optimal safety, performance, and durability for your manufacturing applications.

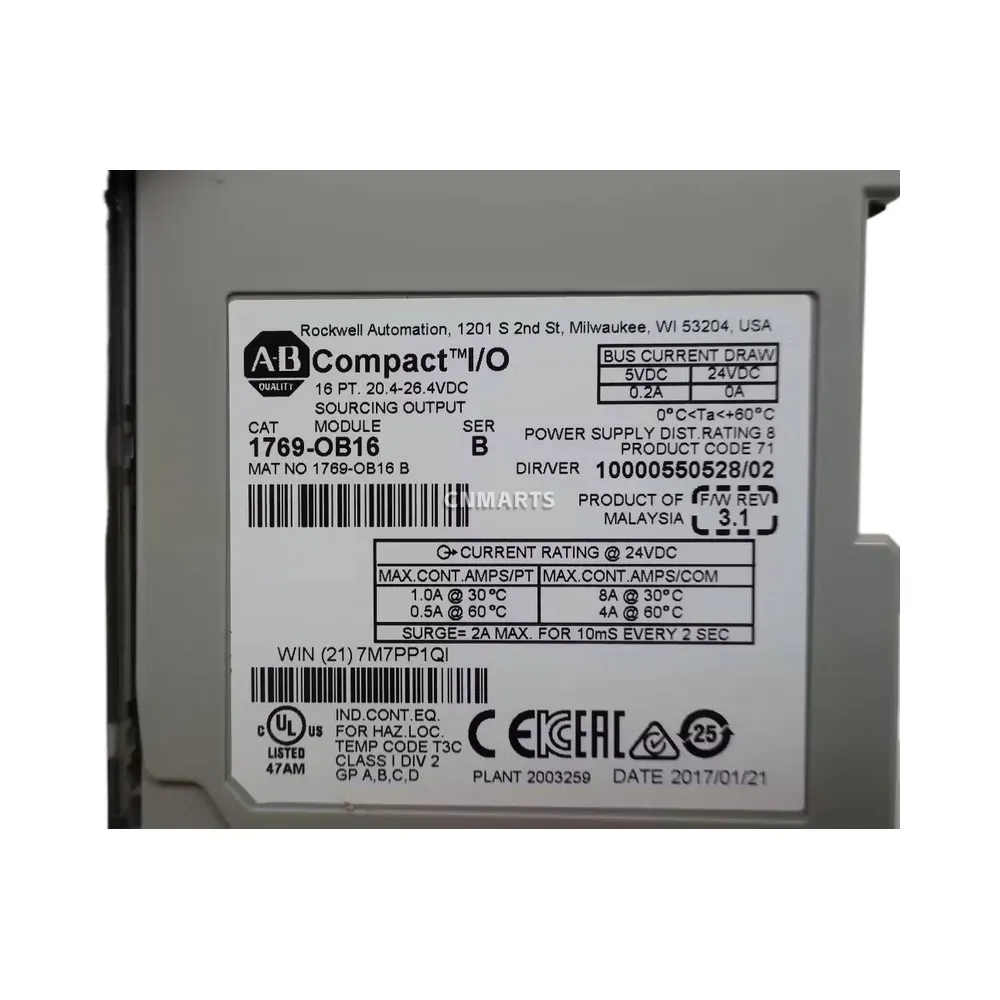

Technical Specifications:
- Brand: Allen-Bradley / Rockwell Automation
- Catalog Number: 1769-OB16 (Series B)
- Module Type: Compact I/O DC Sourcing Output Module
- Number of Outputs: 16 Points
- Operating Voltage: 20.4 – 26.4V DC
- Bus Current Draw: 0.2A @ 5V DC; 0A @ 24V DC
- Max Continuous Current (Per Point): 1.0A @ 30°C; 0.5A @ 60°C
- Max Continuous Current (Per Common): 8A @ 30°C; 4A @ 60°C
- Surge Current: 2A max for 10ms every 2 seconds
- Operating Temperature: 0°C to 60°C
- Power Supply Distance Rating: 8
- Certifications: cULus Listed, CE, EAC, Class I Div 2 Groups A, B, C, D (Temp Code T3C)
| Brand | Allen-Bradley |
|---|---|
| Model | 1769-OB16 |
Only logged in customers who have purchased this product may leave a review.
Shipping policy
If you are buying multiple items, please contact us before checking out so we can get you the best combined rate for shipping.
Our default shipping rate is $100, which is enough to cover the cost of most shipments, but it is not our expected shipping rate. Due to the varying weights and sizes of products and customer locations, please contact us with your location and the products you are interested in to get the best current shipping rates.
ENERAL DELIVERY INFORMATION
Orders will be processed and shipping during standard working hours (0830 – 1700 GMT+8) Monday to Friday (excluding Bank Holidays)
On rare occasions, your order may be handled and/or processed on a Saturday. However, we are unable to ship items on weekends, therefore any orders dealt with on the weekend will be send out the next following working day.
The cut-off point for orders to be shipped the same day is 14:00 – please contact us to confirm stock levels before placing your order
Any orders placed after the cut-off will ship the next working day assuming all parts are in stock and ready for dispatch.
All orders:
- must be paid for in full before any goods are dispatched
- require a signature upon delivery. Please ensure delivery can be made to an address where someone will be available to sign for the delivery
- are packaged with great care, ensuring your order and the contents it contains, makes it safely through the delivery network
Allen-Bradley 1769-OB16 Compact I/O 16-Point DC Sourcing Output Module
Optimize your automated control systems with the Allen-Bradley 1769-OB16 Compact I/O 16-Point DC Sourcing Output Module. Operating at 24V DC, this module delivers reliable performance with up to 1.0A per point and features Class I Div 2 certification for safe use in hazardous industrial environments. Ideal for CompactLogix PLC setups.
