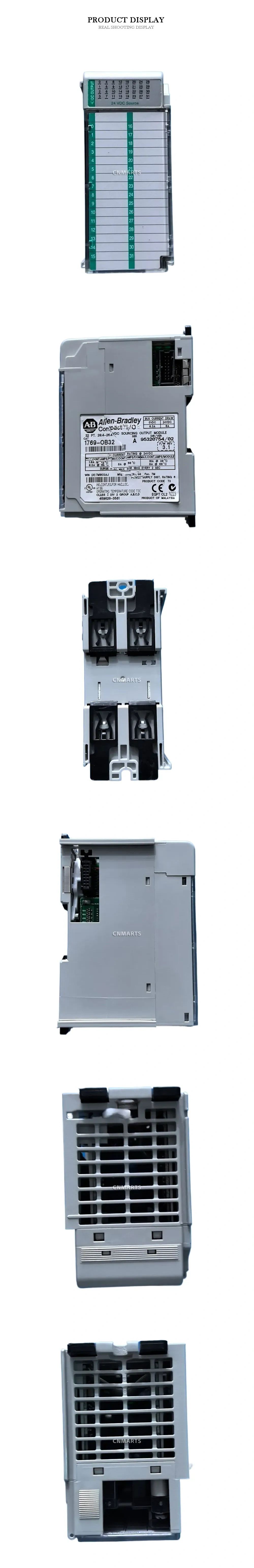

Allen-Bradley 1769-OB32 Compact I/O 32-Point 24VDC Sourcing Output Module
The Allen-Bradley 1769-OB32 is a highly reliable, high-density Compact I/O digital output module designed for seamless integration with CompactLogix and MicroLogix 1500 controller platforms. Featuring 32 points of 24V DC sourcing output, this module is engineered to handle demanding industrial applications while minimizing panel space. It offers robust performance with a maximum continuous current of 16A per module at 30°C and includes built-in surge protection to safeguard your equipment. Certified for use in Class I, Division 2 hazardous locations (Groups A, B, C, D), the 1769-OB32 ensures safe and efficient automation control in rigorous manufacturing environments.
Technical Specifications:
- Brand: Allen-Bradley
- Model/Catalog Number: 1769-OB32 (Series A)
- Module Type: Compact I/O Digital Sourcing Output Module
- Number of Outputs: 32 Points
- Voltage Rating: 24V DC
- Bus Current Draw: 0.3A @ 5V DC; 0A @ 24V DC
- Max Continuous Current per Point: 1.0A @ 30°C; 0.5A @ 60°C
- Max Continuous Current per Module: 16A @ 30°C; 8A @ 60°C
- Surge Current: 2A max for 10ms every 2 seconds
- Power Supply Distance Rating: 6 Modules
- Firmware Revision: 3.1
- Hazardous Location Certification: Class I, Div 2, Groups A, B, C, D (Temp Code T3C)
| Brand | Allen-Bradley |
|---|---|
| Model | 1769-OB32 |
