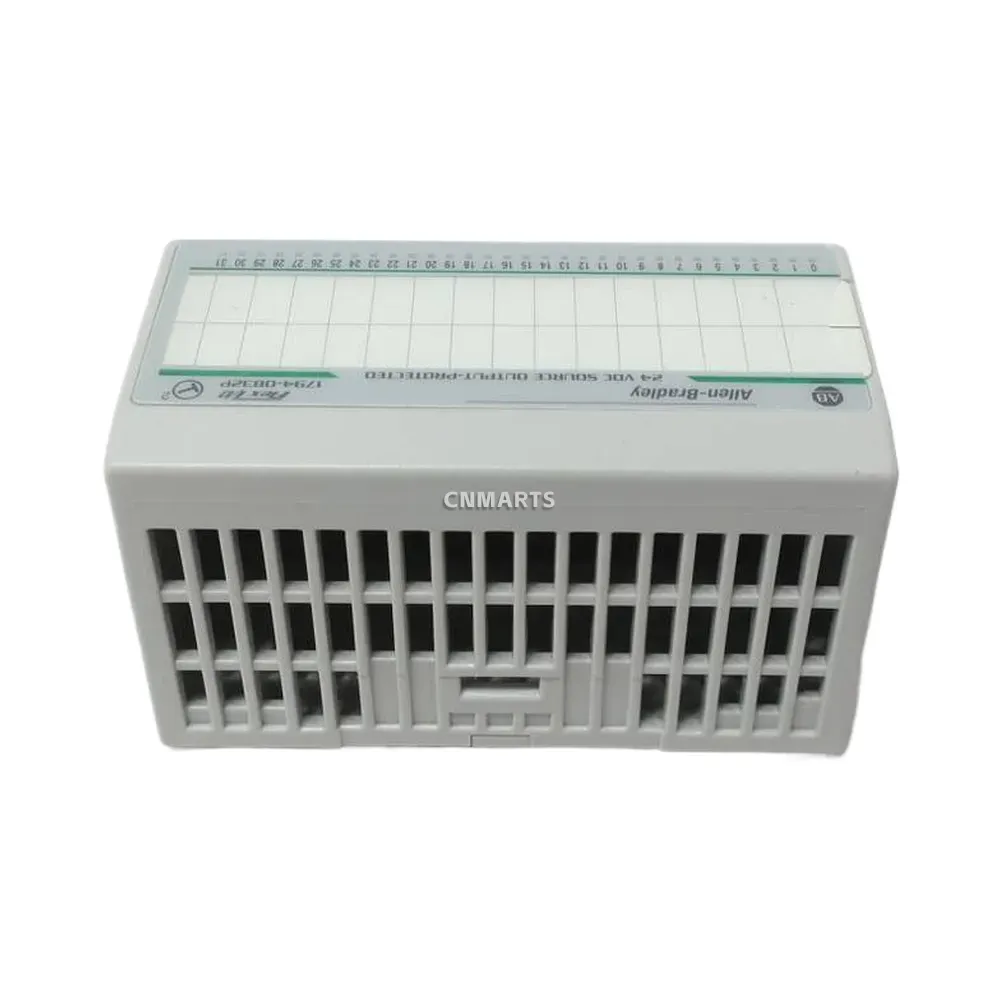

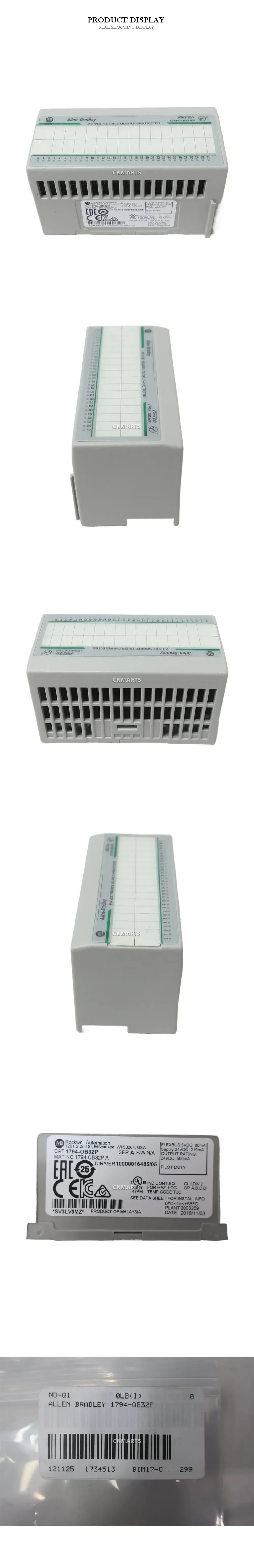

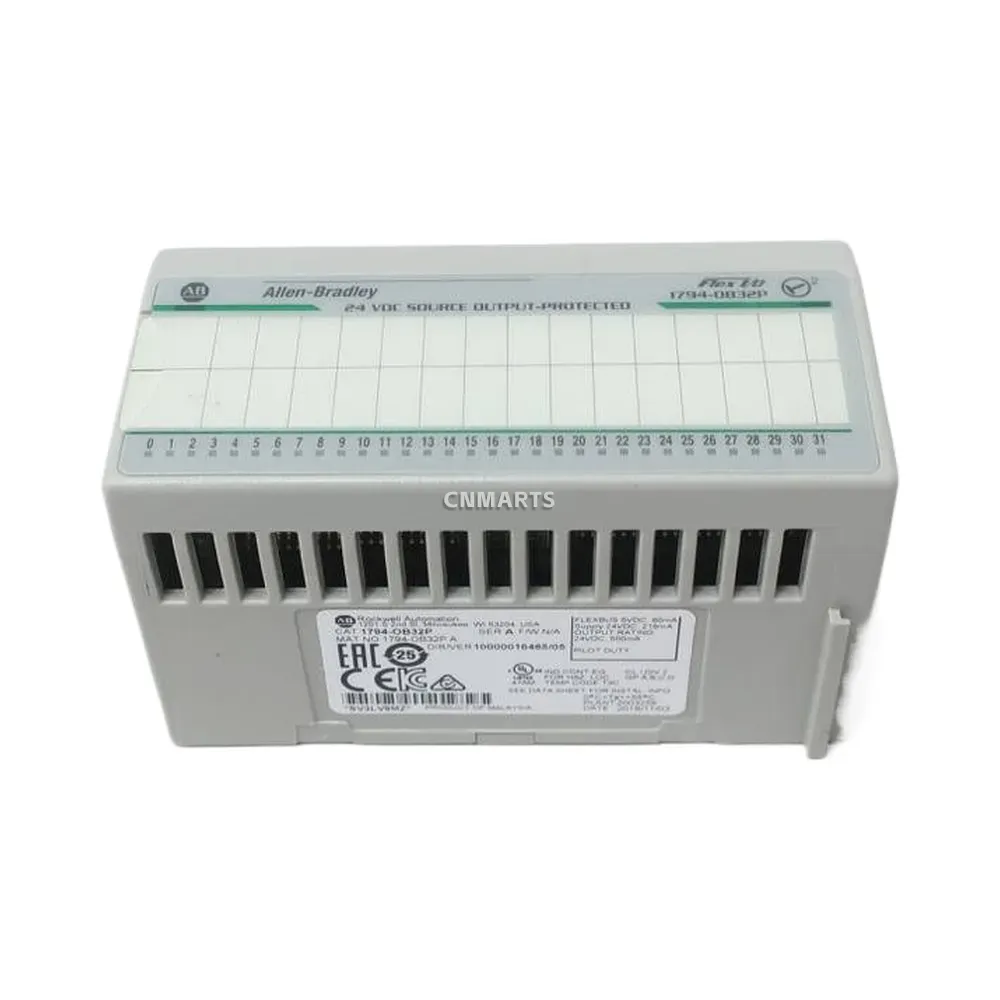

Allen-Bradley 1794-OB32P Digital Output Module
The Allen-Bradley 1794-OB32P is a high-density FLEX I/O digital output module designed by Rockwell Automation to provide reliable, protected 24 VDC source outputs for industrial control systems. Featuring 32 individual points, this Series A module delivers an output rating of 500 mA per channel (pilot duty) to efficiently drive relays, solenoids, and other field devices. It integrates seamlessly into the FlexBus architecture, drawing 80 mA at 5 VDC, and operates safely within a temperature range of 0°C to +55°C. Built for demanding environments, the 1794-OB32P is UL listed for use in Class I, Division 2 hazardous locations (Groups A, B, C, D) with a T3C temperature code, ensuring maximum safety and compliance.
Technical Specifications:
- Part Number / Model: 1794-OB32P (Series A)
- Module Type: FLEX I/O Digital Output Module
- Output Configuration: 32-Point, 24 VDC Source Output (Protected)
- Output Rating: 24 VDC, 500 mA per point (Pilot Duty)
- FlexBus Requirements: 5 VDC, 80 mA
- Power Supply Requirements: 24 VDC, 219 mA
- Operating Temperature: 0°C to +55°C

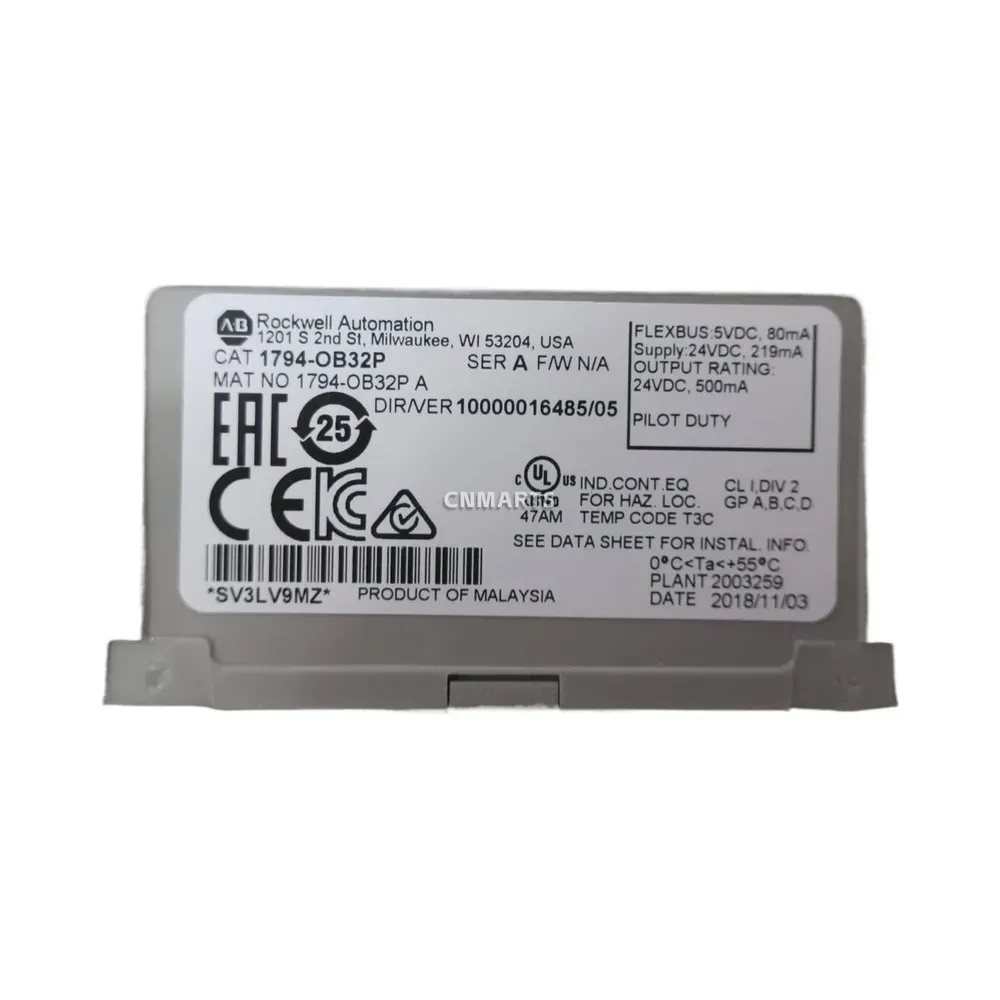

- Certifications & Ratings: UL Listed, CE, EAC, KC; Class I Div 2, Groups A, B, C, D (Temp Code T3C)
| Brand | Allen-Bradley |
|---|---|
| Model | 1794-OB32P |
