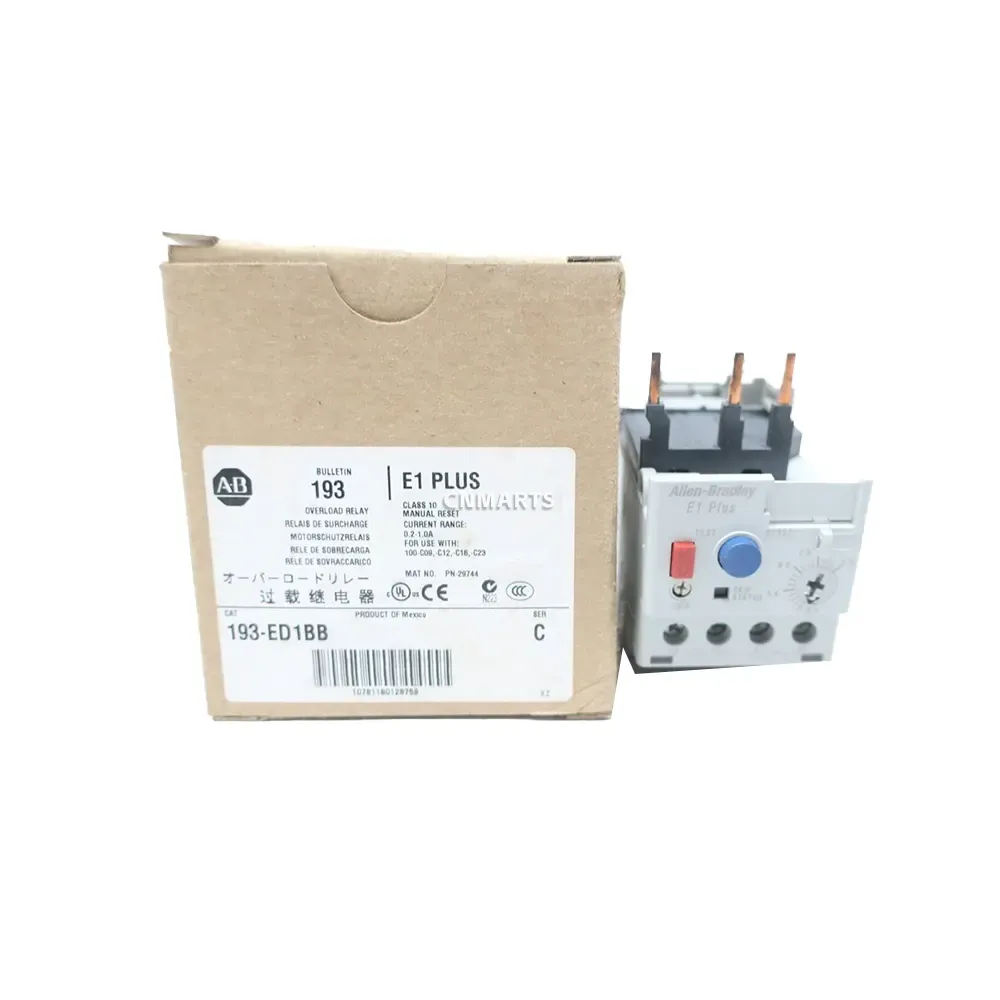

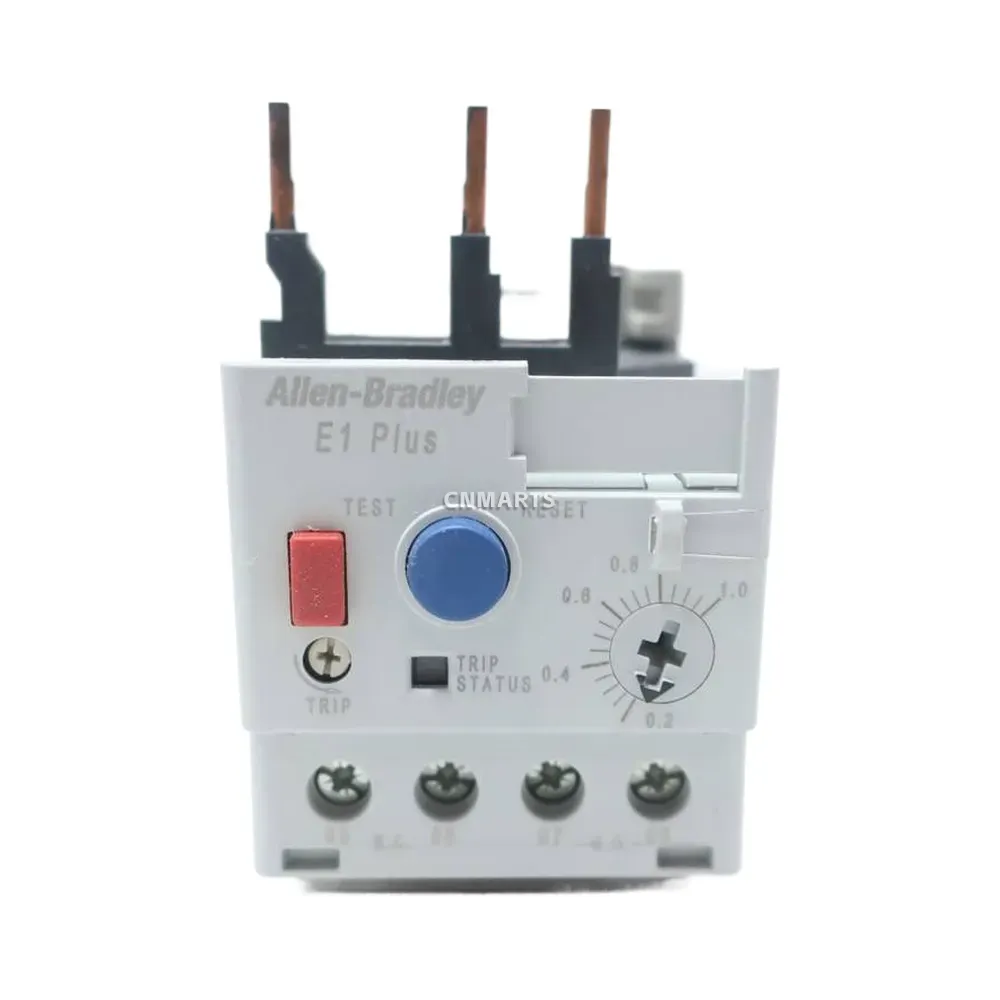

Allen-Bradley 193-ED1BB Overload Relay
The Allen-Bradley 193-ED1BB is a highly reliable Bulletin 193 E1 Plus solid-state overload relay designed to provide robust motor protection. Featuring an adjustable current range of 0.2 to 1.0 Amps and a Trip Class 10 designation, this manual reset relay ensures precise thermal protection for industrial motor applications. It is specifically engineered for seamless direct mounting and integration with Allen-Bradley 100-C09, 100-C12, 100-C16, and 100-C23 contactors. Built to meet stringent international standards including UL, CE, CCC, EN60947-4-1, and EN60947-6-1, the 193-ED1BB delivers exceptional performance, safety, and durability in demanding electrical control environments.
Technical Specifications:
- Brand: Allen-Bradley
- Catalog Number: 193-ED1BB (Series C)
- Product Family: Bulletin 193 E1 Plus
- Current Range: 0.2 – 1.0 A (3-Phase)
- Trip Class: Class 10
- Reset Type: Manual Reset
- Compatible Contactors: 100-C09, 100-C12, 100-C16, 100-C23

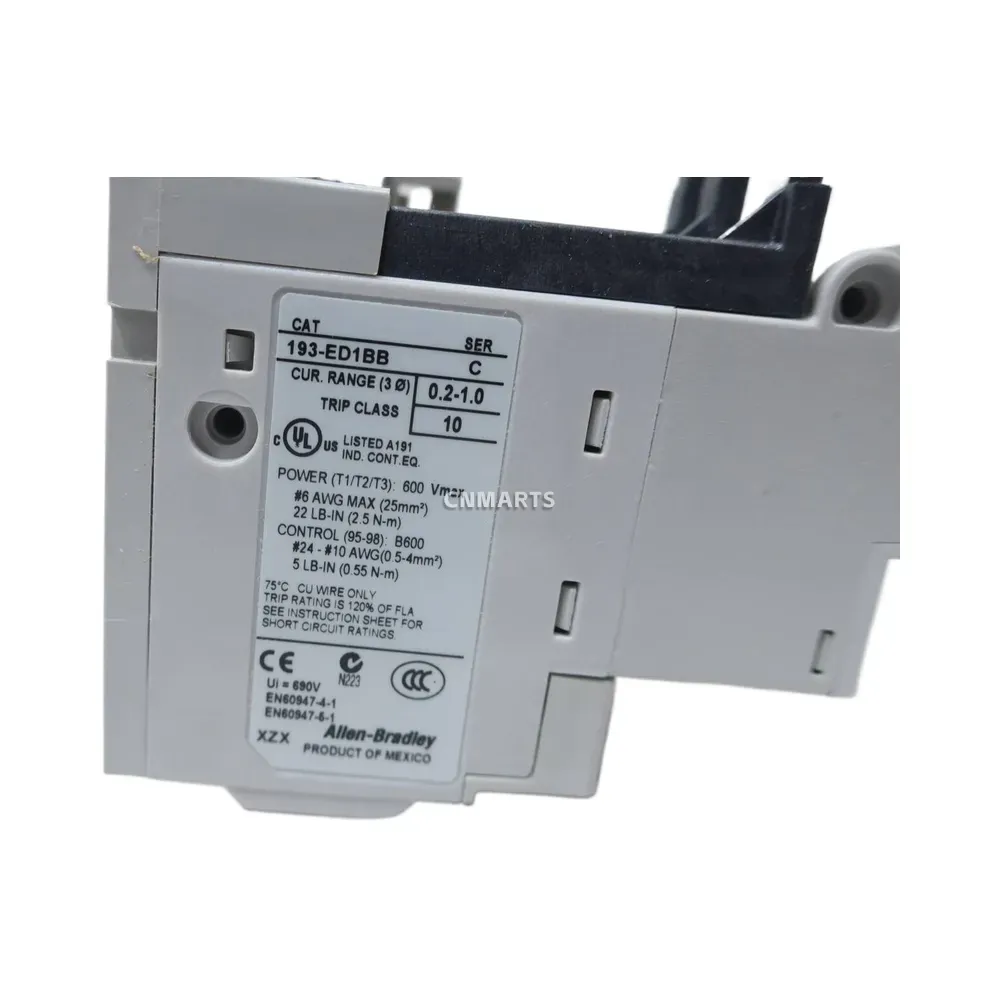

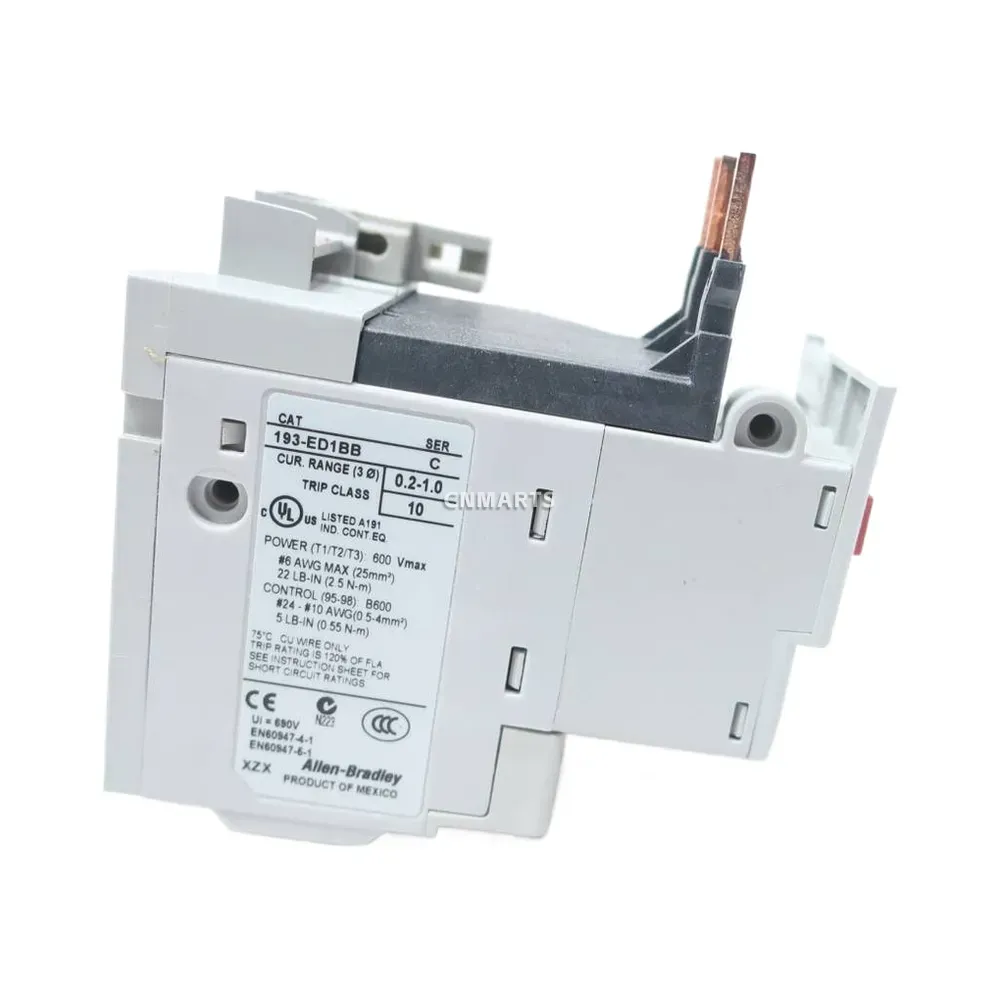

- Power Rating: 600 Vmax (Ui = 690V)
- Control Circuit Rating: B600
- Power Terminal Wiring: #6 AWG MAX (25mm²), 22 LB-IN (2.5 N-m)
- Certifications: UL Listed, CE, CCC, EN60947-4-1, EN60947-6-1
| Brand | Allen-Bradley |
|---|---|
| Model | 193-ED1BB |
