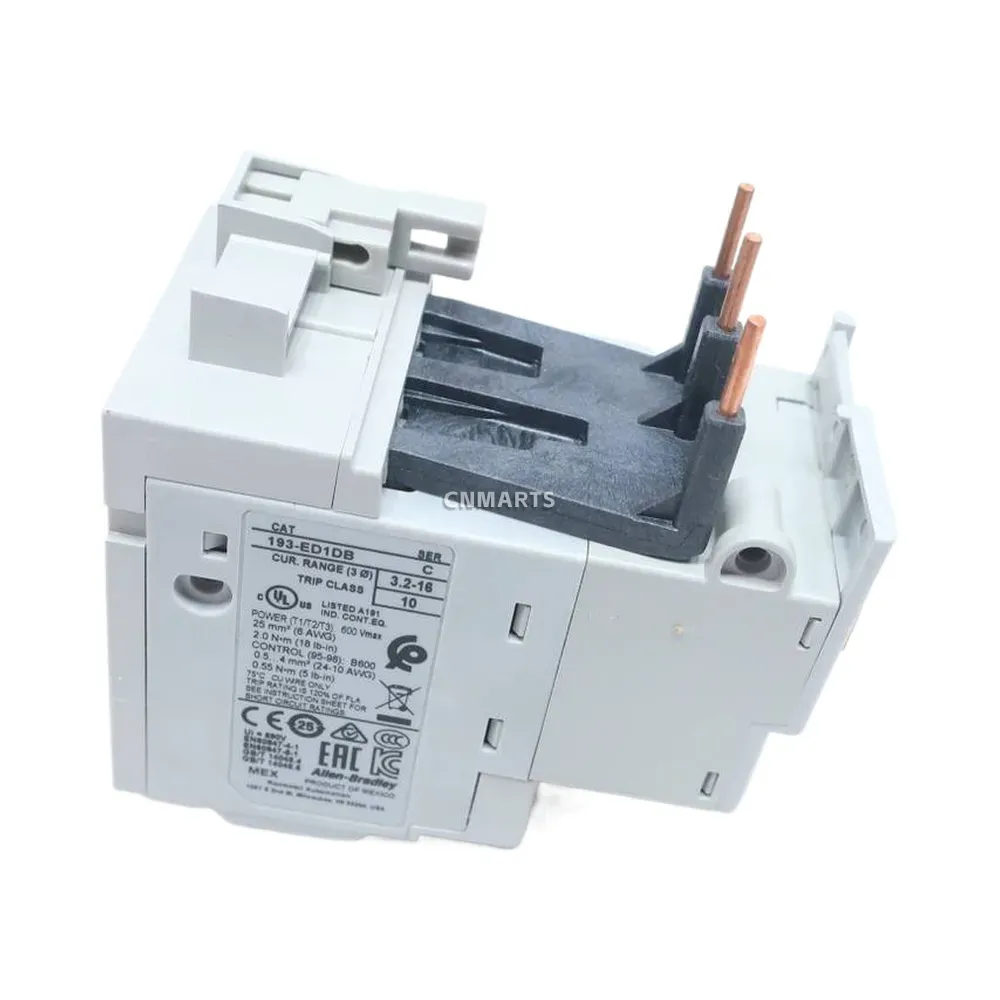

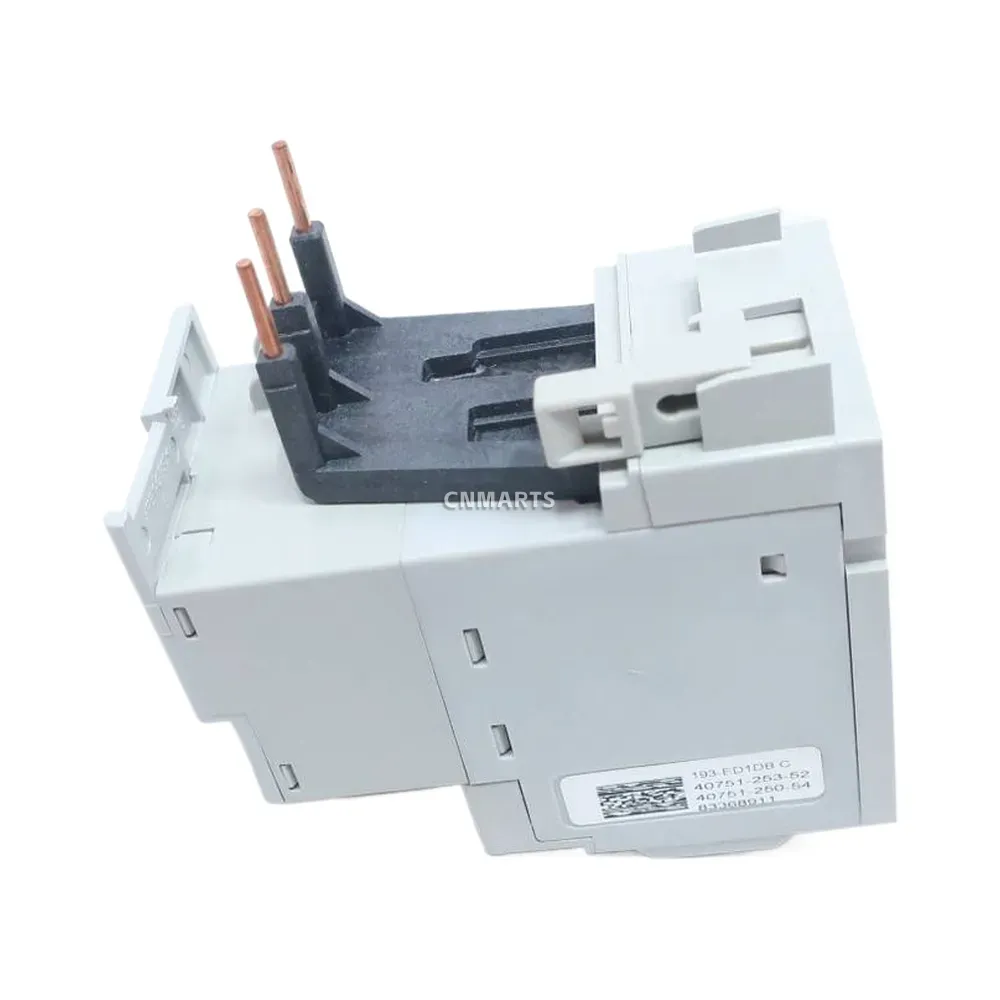

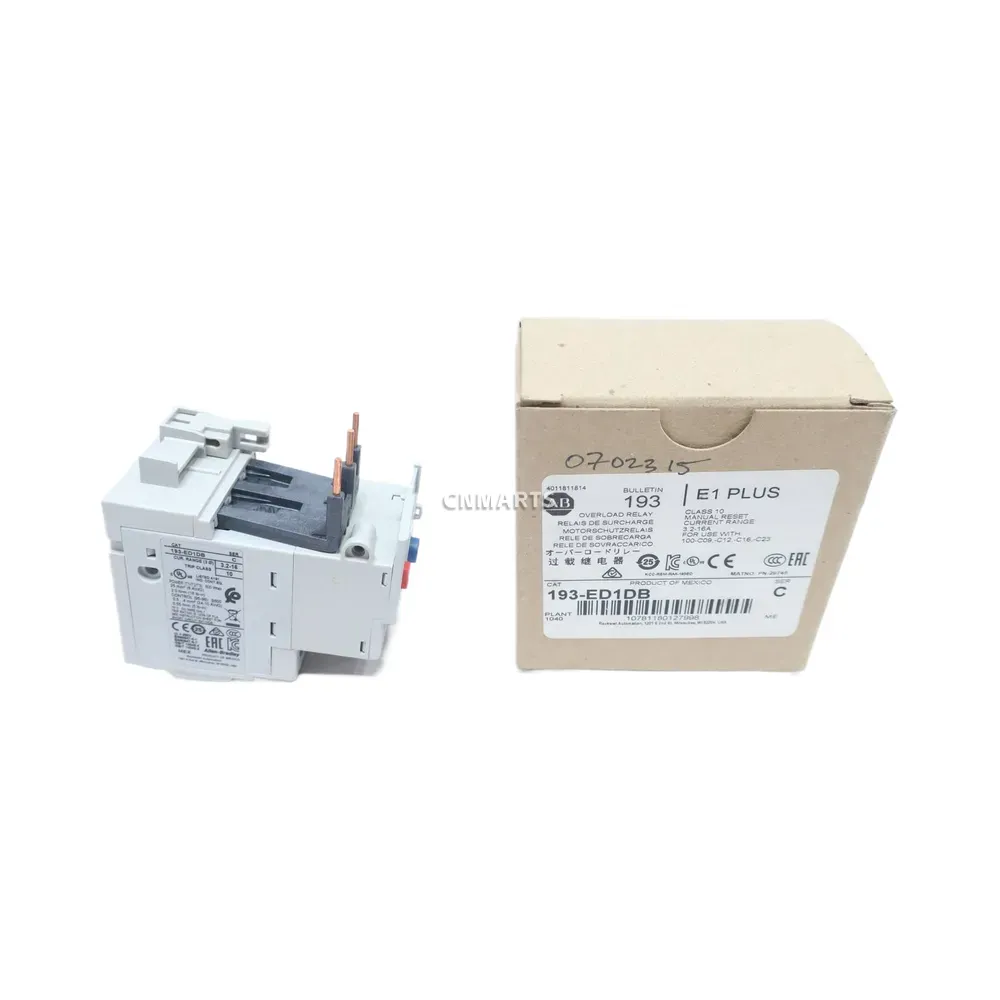

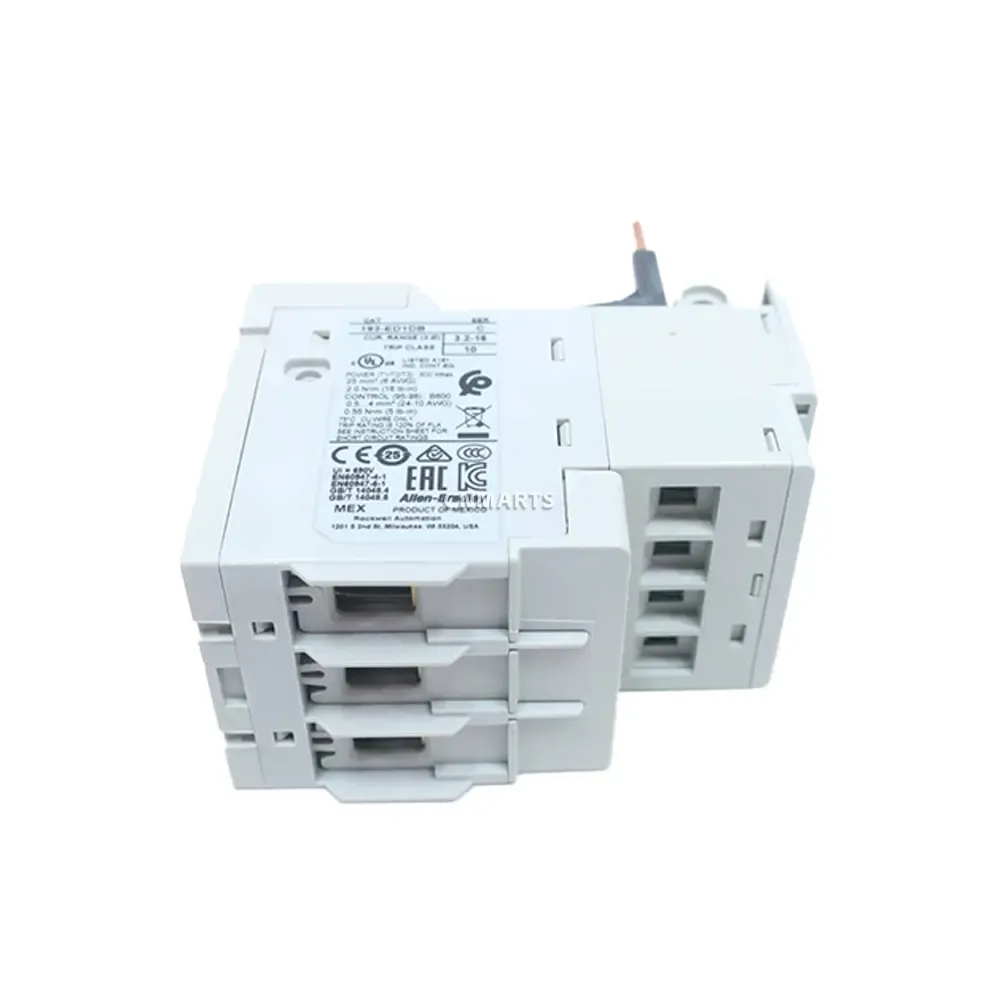

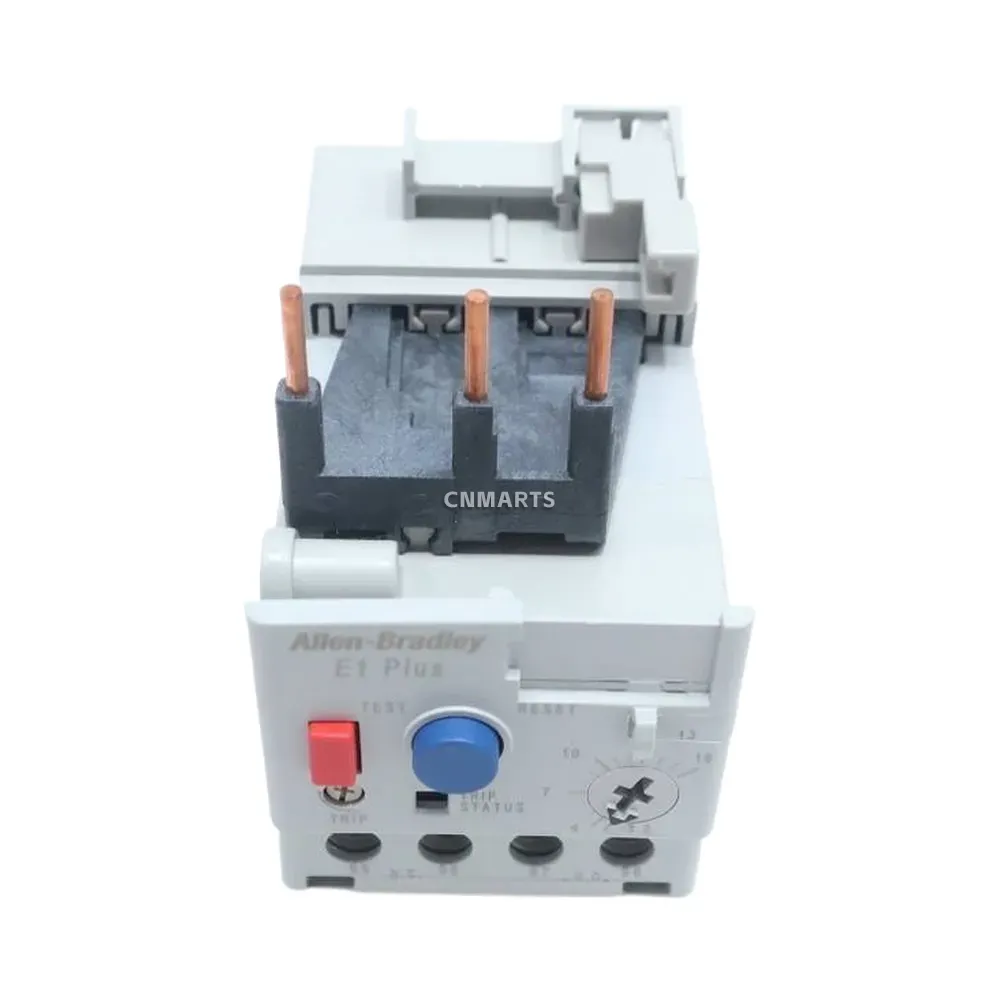

Allen-Bradley 193-ED1DB Overload Relay
The Allen-Bradley 193-ED1DB is a highly reliable Bulletin 193 E1 Plus Electronic Overload Relay manufactured by Rockwell Automation, designed to provide robust and accurate motor protection. Featuring a 3-phase current adjustment range of 3.2 to 16 Amps and a Trip Class of 10, this Series C relay is engineered specifically for manual reset applications. It boasts a maximum power circuit rating of 600V and an insulation voltage (Ui) of 690V, ensuring safe and efficient operation even in demanding industrial environments. Fully compliant with stringent international standards including cULus, CE, EAC, EN60947, and GB/T, the 193-ED1DB delivers precise thermal protection and seamless integration into your existing motor control systems.

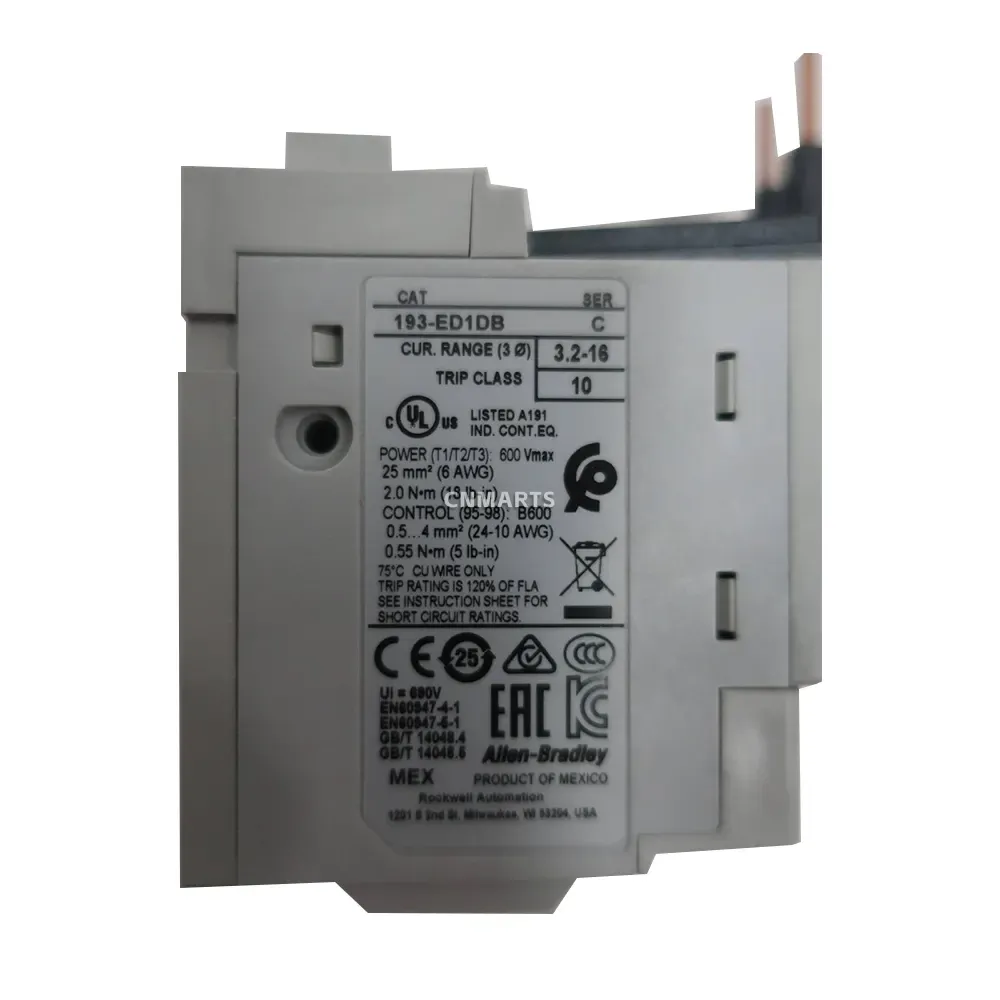

Technical Specifications:
- Brand: Allen-Bradley / Rockwell Automation
- Catalog Number: 193-ED1DB
- Series: C
- Current Range (3-Phase): 3.2 – 16 A
- Trip Class: 10 (Manual Reset)
- Power Circuit Rating: 600 Vmax
- Insulation Voltage (Ui): 690V
- Control Circuit Rating: B600
- Power Terminal Capacity: 25 mm² (6 AWG) / Torque: 2.0 N·m (18 lb-in)
- Control Terminal Capacity: 0.5…4 mm² (24-10 AWG) / Torque: 0.55 N·m (5 lb-in)
- Standards & Certifications: cULus Listed (A191), CE, EAC, EN60947-4-1, EN60947-5-1, GB/T 14048.4, GB/T 14048.5
| Brand | Allen-Bradley |
|---|---|
| Model | 193-ED1DB |
Only logged in customers who have purchased this product may leave a review.
Shipping policy
If you are buying multiple items, please contact us before checking out so we can get you the best combined rate for shipping.
Our default shipping rate is $100, which is enough to cover the cost of most shipments, but it is not our expected shipping rate. Due to the varying weights and sizes of products and customer locations, please contact us with your location and the products you are interested in to get the best current shipping rates.
ENERAL DELIVERY INFORMATION
Orders will be processed and shipping during standard working hours (0830 – 1700 GMT+8) Monday to Friday (excluding Bank Holidays)
On rare occasions, your order may be handled and/or processed on a Saturday. However, we are unable to ship items on weekends, therefore any orders dealt with on the weekend will be send out the next following working day.
The cut-off point for orders to be shipped the same day is 14:00 – please contact us to confirm stock levels before placing your order
Any orders placed after the cut-off will ship the next working day assuming all parts are in stock and ready for dispatch.
All orders:
- must be paid for in full before any goods are dispatched
- require a signature upon delivery. Please ensure delivery can be made to an address where someone will be available to sign for the delivery
- are packaged with great care, ensuring your order and the contents it contains, makes it safely through the delivery network
Allen-Bradley 193-ED1DB Overload Relay
Protect your industrial motors with the Allen-Bradley 193-ED1DB E1 Plus Electronic Overload Relay. Featuring a 3.2-16A adjustable current range, Trip Class 10, and a 600V max power rating, this Series C relay ensures reliable and accurate thermal protection for your automated systems.
