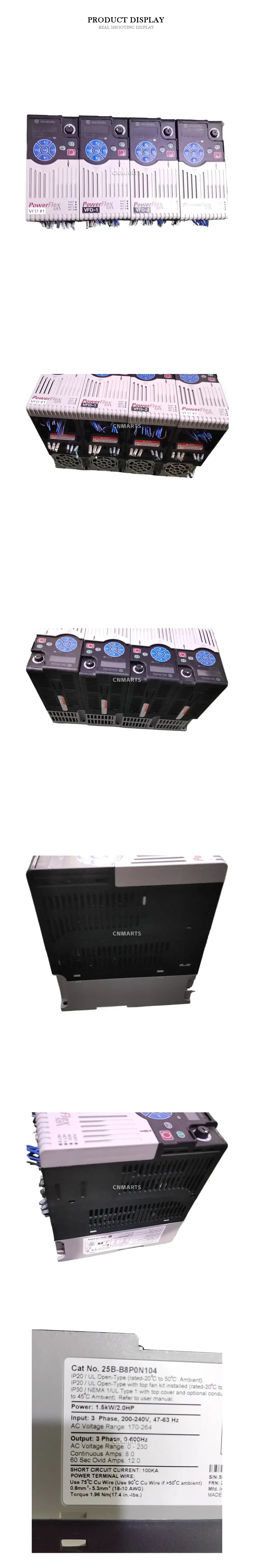

Allen-Bradley 25B-B8P0N104 AC Drive
The Allen-Bradley 25B-B8P0N104 is a robust and versatile PowerFlex 525 AC Drive engineered to deliver precise motor control for a wide range of industrial automation applications. Operating on a 3-phase, 200-240V AC input, this variable frequency drive provides a power rating of 1.5 kW (2.0 HP) and a continuous output current of 8.0 Amps. It is designed to handle demanding loads with a 60-second overload capacity of 12.0 Amps. Featuring a compact IP20 / UL Open-Type enclosure, the 25B-B8P0N104 ensures flexible installation, reliable performance, and enhanced energy efficiency for your motor-driven systems.
Technical Specifications:
- Brand: Allen-Bradley
- Model/Catalog Number: 25B-B8P0N104
- Product Family: PowerFlex 525
- Power Rating: 1.5 kW / 2.0 HP
- Input Specifications: 3 Phase, 200-240V AC, 47-63 Hz (Range: 170-264V AC)
- Output Specifications: 3 Phase, 0-230V AC, 0-600 Hz
- Continuous Amps: 8.0 A
- Overload Amps (60 Sec): 12.0 A
- Short Circuit Current Rating: 100 kA
- Enclosure Rating: IP20 / UL Open-Type
- Power Terminal Wiring: 18-10 AWG (0.8mm² – 5.3mm²) Cu Wire, Torque 1.96 Nm (17.4 in.-lbs.)
| Brand | Allen-Bradley |
|---|---|
| Model | 25B-B8P0N104 |
