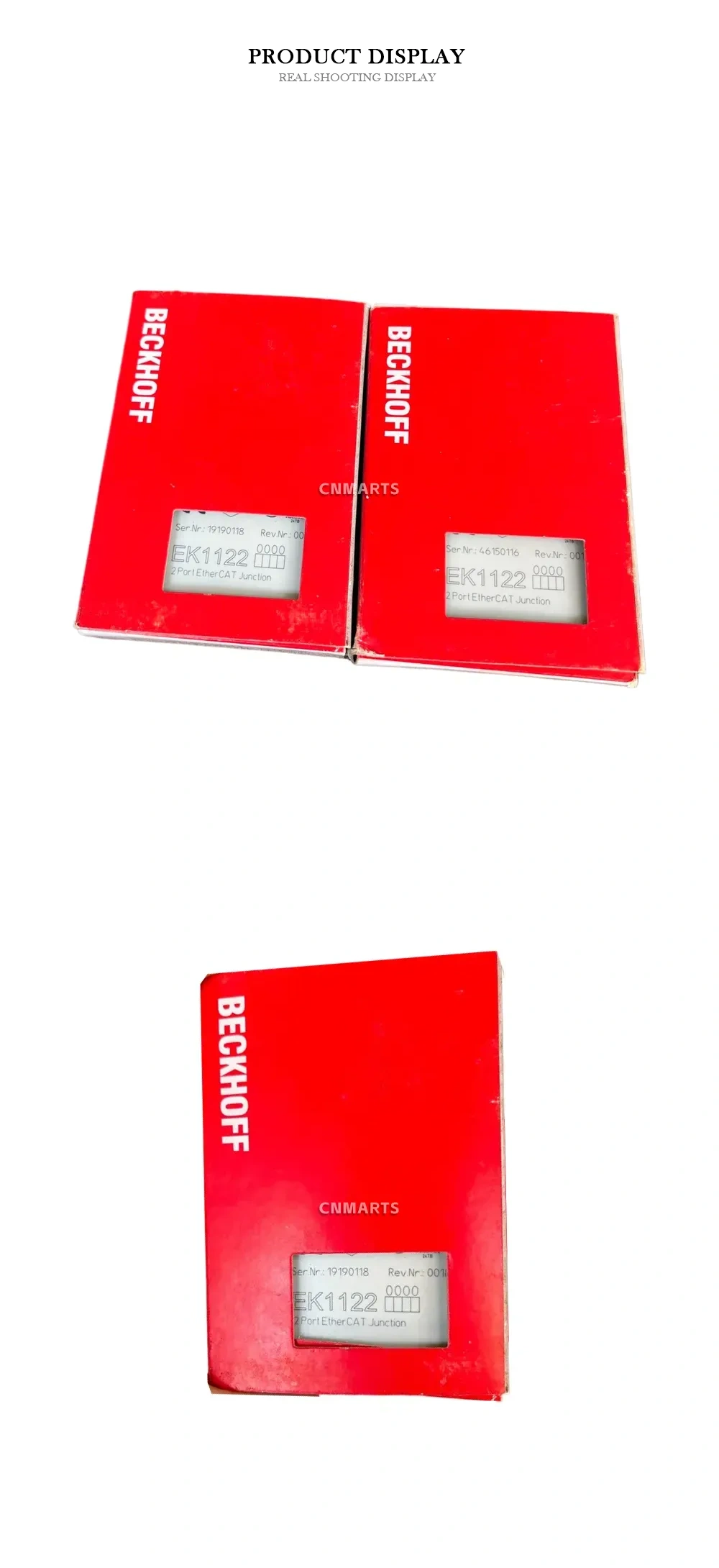

BECKHOFF EK1122 2 Port EtherCAT Junction
The Beckhoff EK1122 is a highly efficient 2-port EtherCAT junction module engineered for industrial automation networking. Designed to facilitate flexible star topologies within EtherCAT networks, this junction allows users to easily connect additional EtherCAT branches using standard RJ45 connections. Operating at a reliable 100 Mbit/s data transfer rate, the EK1122 ensures real-time communication and seamless integration with existing EtherCAT Couplers, such as the EK1100. The module is powered directly via the E-bus, which streamlines installation and reduces wiring complexity. With its compact IP20-rated housing and simple DIN rail mounting capabilities, the EK1122 is an essential component for expanding and optimizing complex industrial control systems.
Technical Specifications:
- Number of Ports: 2 x RJ45
- Data Transfer Rate: 100 Mbit/s (100BASE-TX)
- Protocol / Bus System: EtherCAT
- Power Supply: Provided via E-bus
- Current Consumption (E-bus): typ. 130 mA
- Protection Class / Installation: IP20 / 35 mm DIN rail
| Brand | Beckhoff |
|---|---|
| Model | EK1122 |
Only logged in customers who have purchased this product may leave a review.
Shipping policy
If you are buying multiple items, please contact us before checking out so we can get you the best combined rate for shipping.
Our default shipping rate is $100, which is enough to cover the cost of most shipments, but it is not our expected shipping rate. Due to the varying weights and sizes of products and customer locations, please contact us with your location and the products you are interested in to get the best current shipping rates.
ENERAL DELIVERY INFORMATION
Orders will be processed and shipping during standard working hours (0830 – 1700 GMT+8) Monday to Friday (excluding Bank Holidays)
On rare occasions, your order may be handled and/or processed on a Saturday. However, we are unable to ship items on weekends, therefore any orders dealt with on the weekend will be send out the next following working day.
The cut-off point for orders to be shipped the same day is 14:00 – please contact us to confirm stock levels before placing your order
Any orders placed after the cut-off will ship the next working day assuming all parts are in stock and ready for dispatch.
All orders:
- must be paid for in full before any goods are dispatched
- require a signature upon delivery. Please ensure delivery can be made to an address where someone will be available to sign for the delivery
- are packaged with great care, ensuring your order and the contents it contains, makes it safely through the delivery network
BECKHOFF EK1122 2 Port EtherCAT Junction
Optimize your industrial automation network with the Beckhoff EK1122 2-Port EtherCAT Junction. Featuring dual RJ45 ports and fast 100 Mbit/s transfer rates, this compact IP20 module enables flexible star topologies and seamless EtherCAT system expansion.
