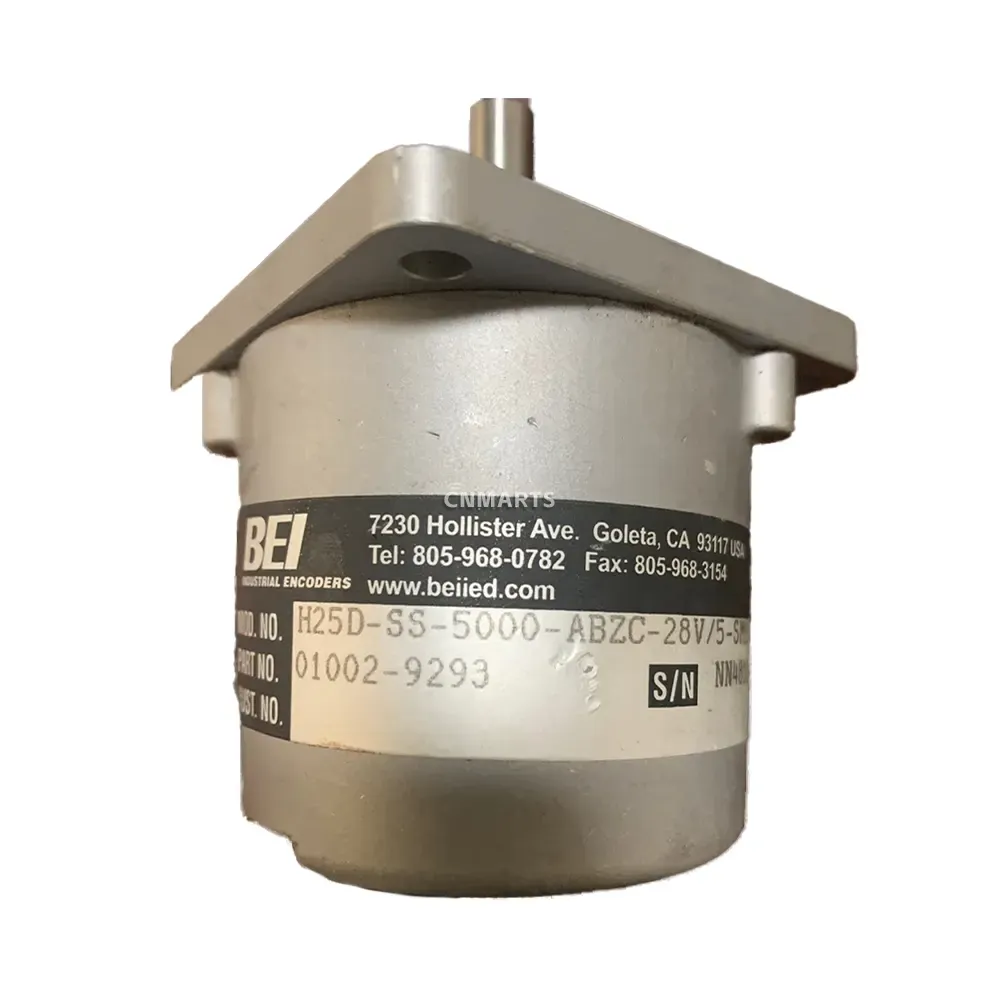

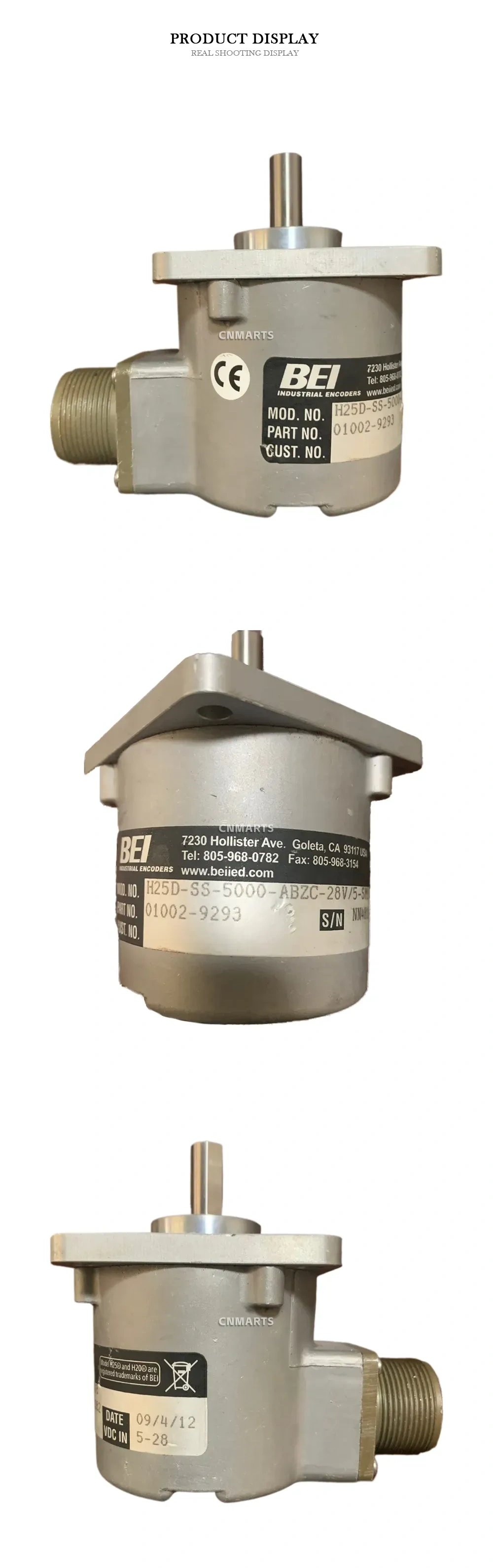

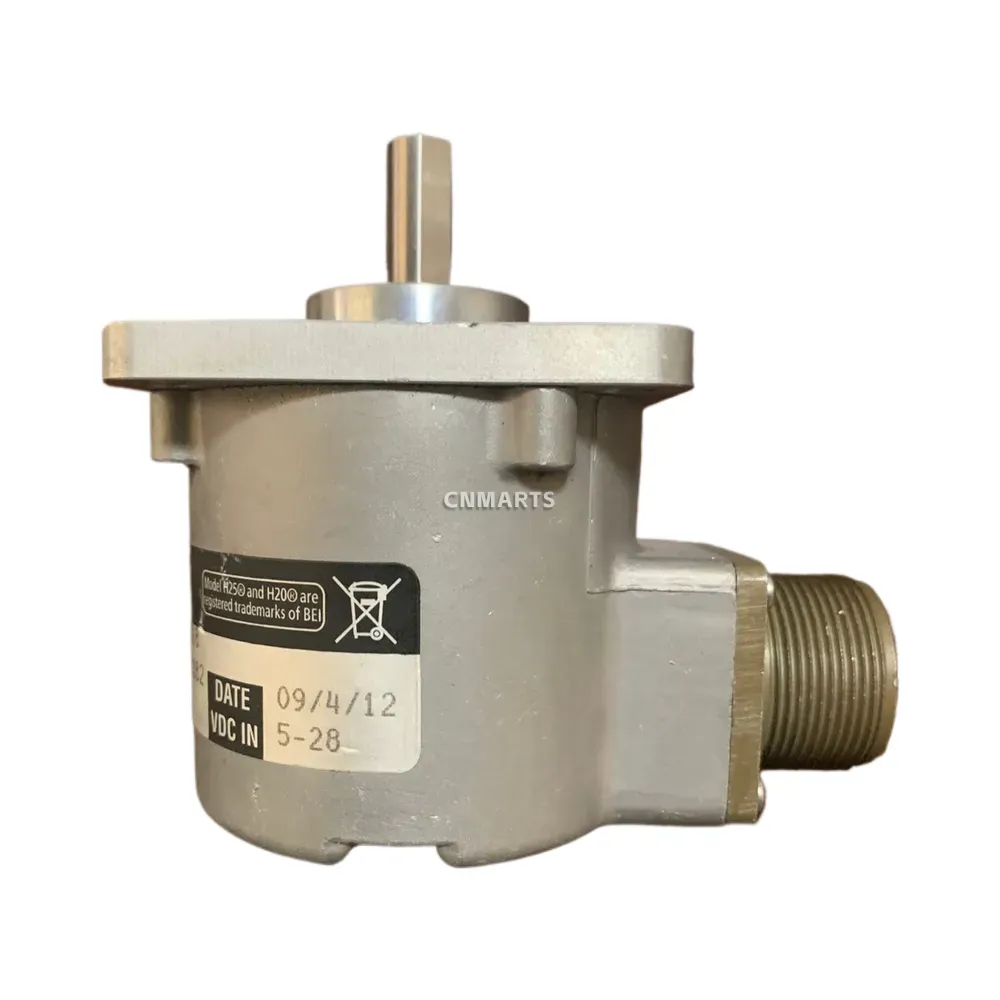

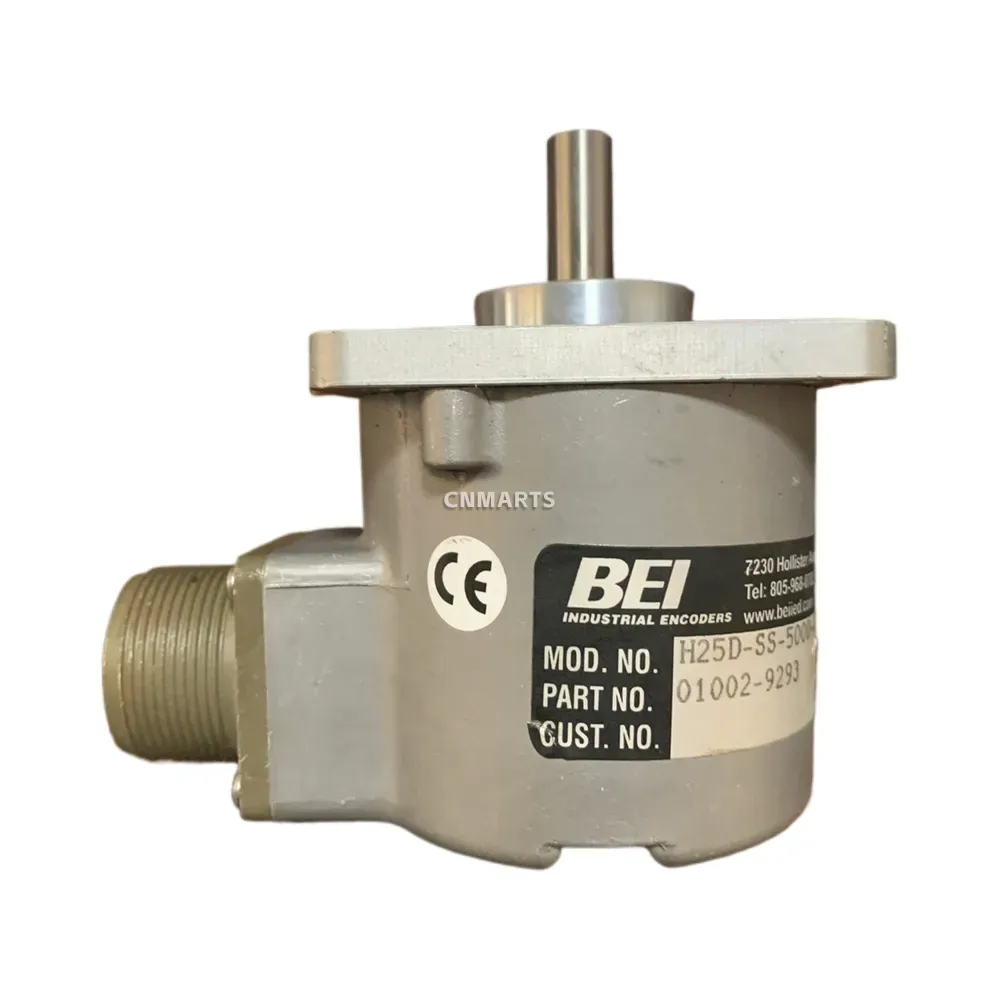

BEI H25D-SS-5000-ABZC-28V/5-SM18 Industrial Encoder
The BEI H25D-SS-5000-ABZC-28V/5-SM18 is a high-performance, heavy-duty optical rotary encoder engineered for demanding industrial environments. As part of the industry-standard H25D series, this incremental encoder features a rugged Size 25 housing and a solid shaft (SS) construction designed to withstand harsh operating conditions. It delivers precise motion control feedback with a high resolution of 5000 pulses per revolution (PPR) and utilizes an ABZC output format, providing dual-channel quadrature with an index pulse and complementary signals for enhanced noise immunity over long cable runs. Operating on a versatile 5-28 VDC input, it is the ideal solution for machine control, process automation, robotics, and other rigorous applications requiring exceptional accuracy and long-term reliability.
Technical Specifications:
- Brand: BEI Industrial Encoders (BEI Sensors)
- Model: H25D-SS-5000-ABZC-28V/5-SM18
- Part Number: 01002-9293
- Encoder Type: Incremental Optical Rotary Encoder
- Resolution: 5000 Pulses Per Revolution (PPR)
- Output Type: ABZC (Quadrature A & B with Index Z and Complements)
- Input Voltage: 5-28 VDC
- Shaft Configuration: Solid Shaft (SS)
- Connector Type: SM18 (Side Mount)
- Certifications: CE
| Brand | BEI |
|---|---|
| Model | H25D-SS-5000-ABZC-28V/5-SM18 |
