BENDER IRDH275-415 Insulation Monitoring Device
Bender IRDH275-415 ISOMETER® for advanced insulation monitoring in AC and DC IT systems. Ensures electrical safety with a wide voltage range and an adjustable response value from 1 kΩ to 10 MΩ.
Payment Methods:
-
Online Support 24/7
-
12 Months Warranty for New Products
-
30 Days Money Back Guarantee
BENDER IRDH275-415 Insulation Monitoring Device

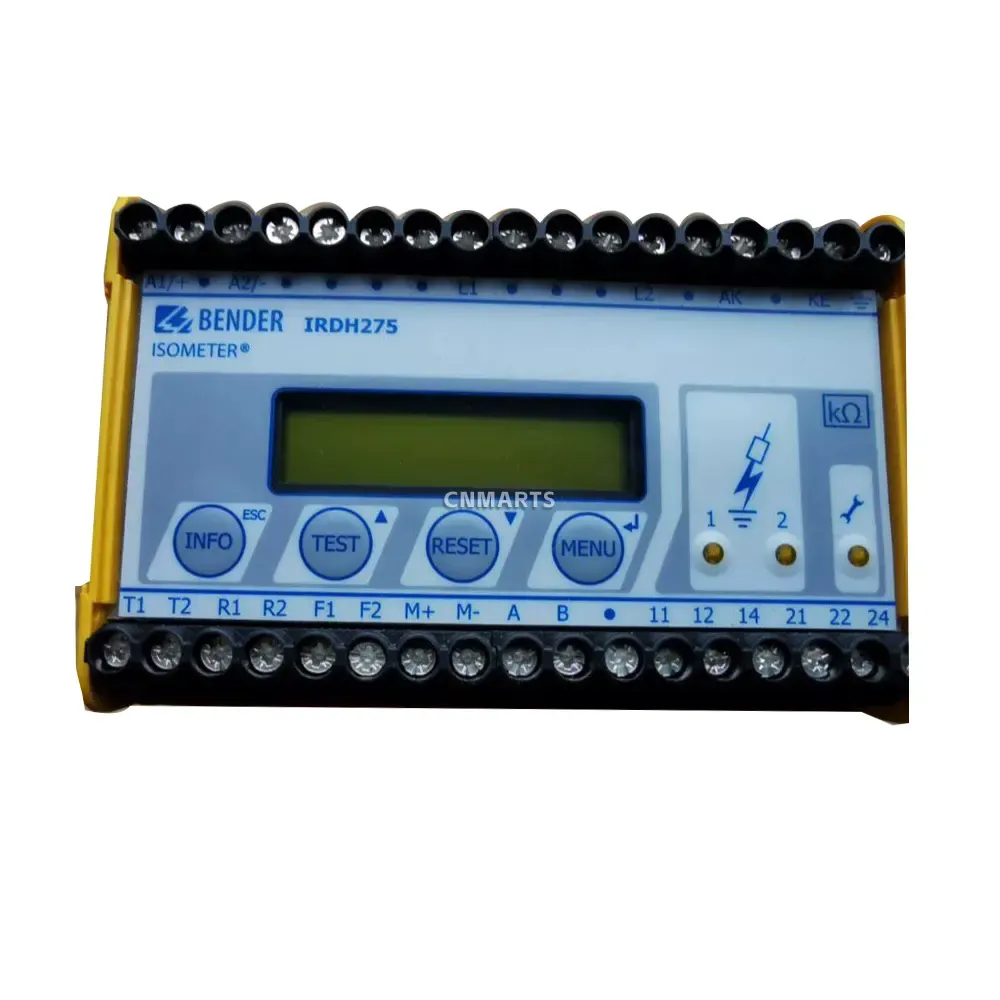

The BENDER ISOMETER® IRDH275-415 is a high-performance insulation monitoring device (IMD) engineered for unearthed AC, 3(N)AC, and DC power systems (IT systems). It provides continuous monitoring of insulation resistance to detect faults at an early stage, significantly enhancing electrical safety and preventing costly operational downtimes. Featuring the advanced AMPPlus measurement principle, this device ensures precise and reliable performance even in systems with high leakage capacitances or connected to variable frequency drives. With a wide voltage range, configurable alarm setpoints, and a clear LCD display, the IRDH275-415 is a versatile and essential component for critical applications in industrial plants, healthcare facilities, and renewable energy installations.

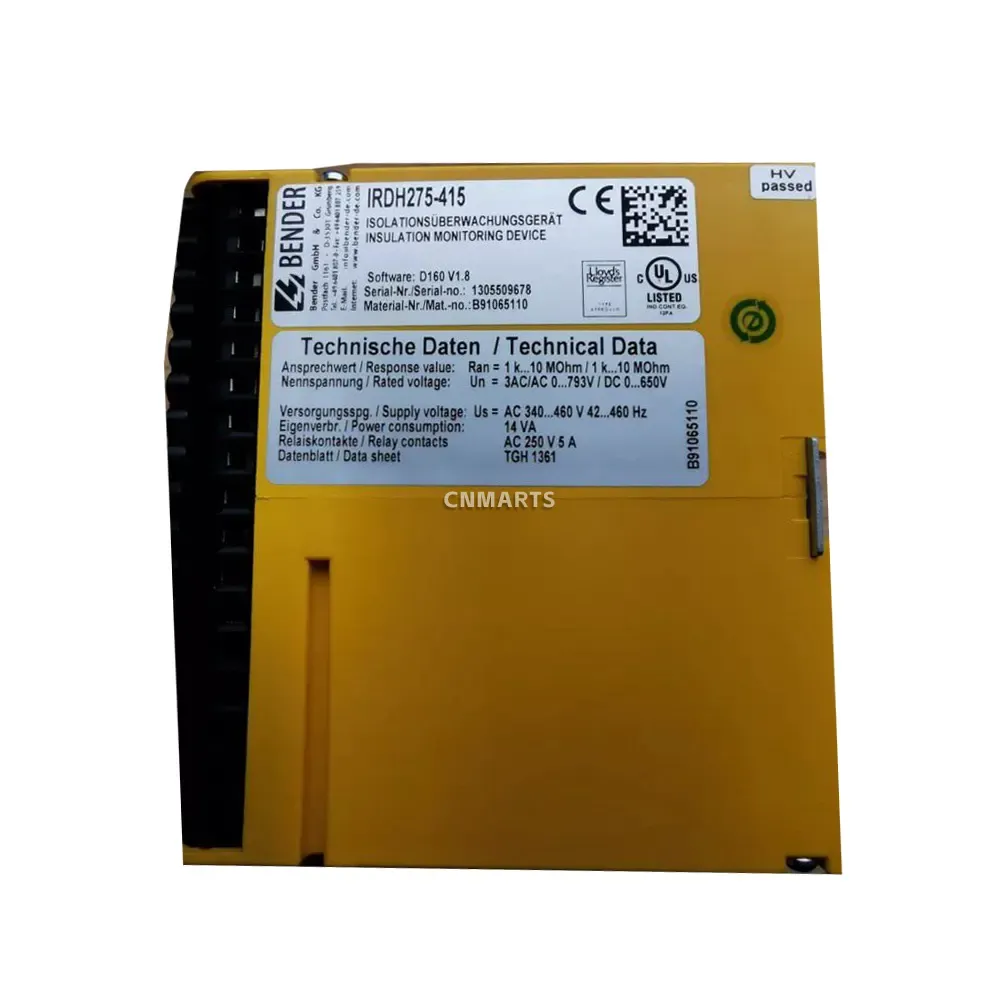

Technical Specifications:
- Model: IRDH275-415
- Response Value (Ran): 1 kΩ…10 MΩ
- Rated Voltage (Un): 3AC/AC 0…793 V / DC 0…650 V
- Supply Voltage (Us): AC 340…460 V, 42…460 Hz
- Power Consumption: ≤ 14 VA
- Relay Contacts: AC 250 V, 5 A
- Certifications: CE, cULus Listed, Lloyd’s Register
| Brand | BENDER |
|---|---|
| Model | IRDH275-415 |
