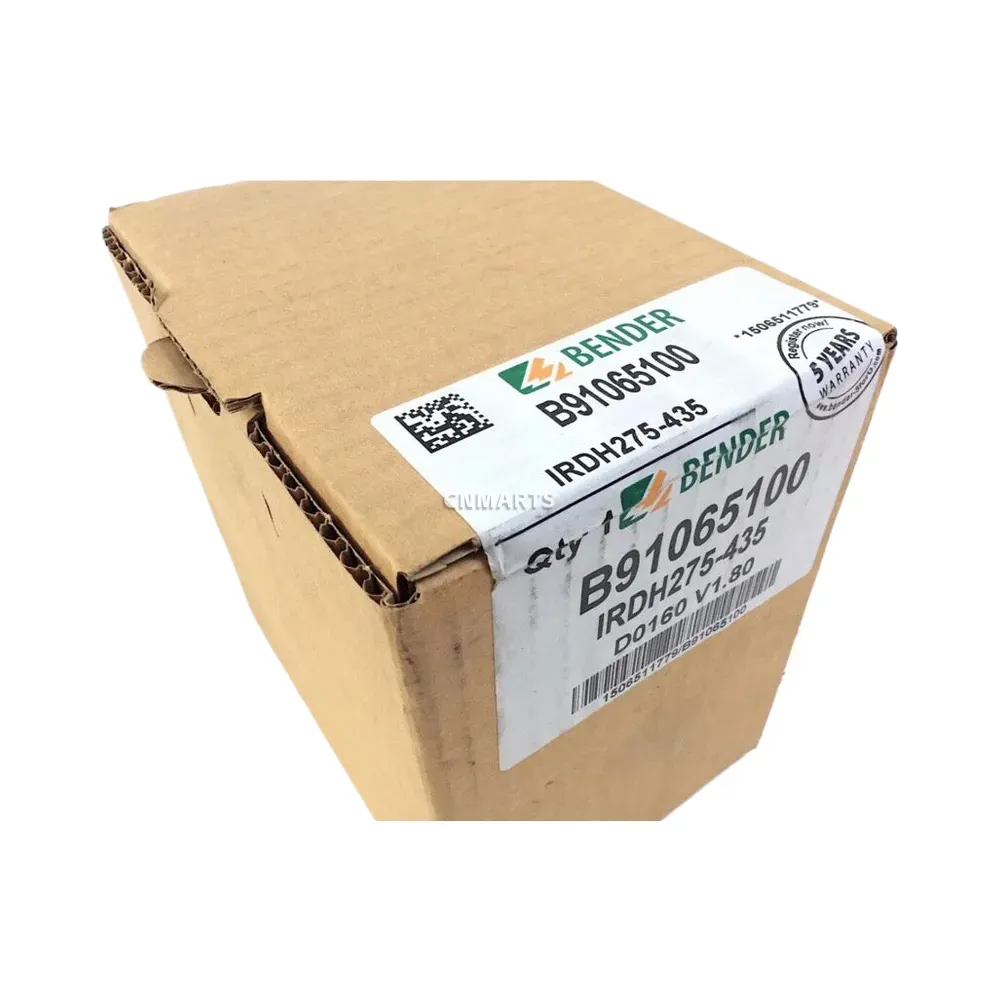

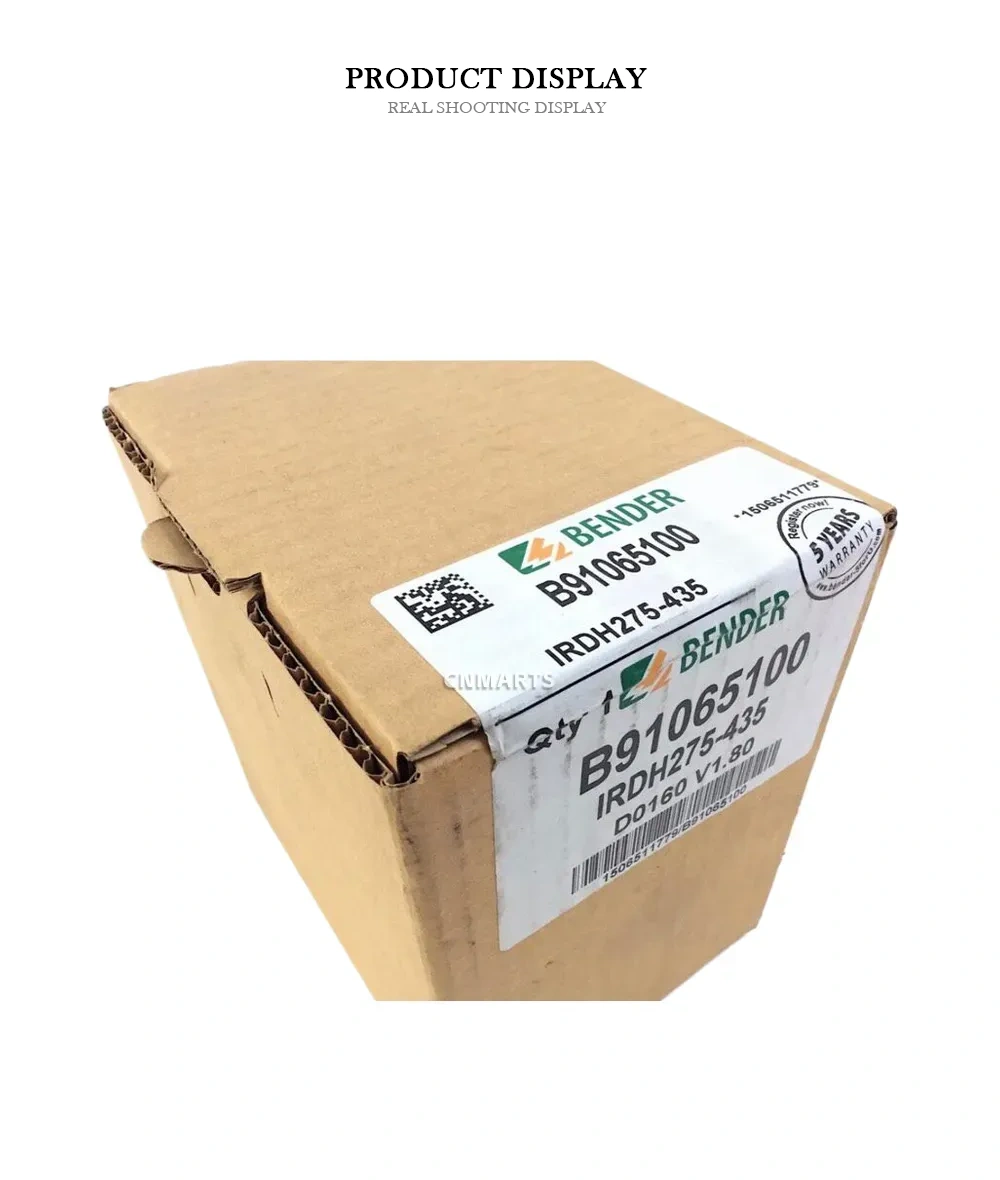

BENDER IRDH275-435 Insulation Monitoring Device
Ensure maximum electrical safety with the BENDER IRDH275-435 Insulation Monitoring Device. This advanced IMD (B91065100) provides reliable insulation monitoring for AC, AC/DC, and DC IT systems, ideal for applications with frequency converters and high leakage capacitances.
Payment Methods:
-
Online Support 24/7
-
12 Months Warranty for New Products
-
30 Days Money Back Guarantee
BENDER IRDH275-435 Insulation Monitoring Device
The BENDER ISOMETER® IRDH275-435 is a high-performance insulation monitoring device (IMD) designed for unearthed AC, AC/DC, and DC power systems (IT systems). It utilizes Bender’s advanced AMP Plus measurement principle to reliably monitor insulation resistance even in complex systems with high leakage capacitances, DC components, or frequency converters. This device ensures maximum operational and electrical safety by providing early detection of insulation faults, helping to prevent costly downtime and electrical hazards. Its high-resolution graphical display offers clear visualization of system status, measured values, and device parameters, making it an essential component for critical power applications in industries such as healthcare, data centers, and industrial manufacturing.
Technical Specifications:
- Model: ISOMETER® IRDH275-435
- Order Number: B91065100
- Nominal System Voltage (Un): AC, 3(N)AC 0…793 V; DC 0…650 V
- Supply Voltage (Us): AC 100…240 V (50…60 Hz); DC 100…240 V
- Frequency Range: 1…460 Hz
- Response Value Range (R an1/R an2): 1 kΩ…10 MΩ
- Measuring Principle: AMP Plus (Adaptive Measuring Pulse)
- Max. System Leakage Capacitance (Ce): 1000 µF
- Interface: RS-485 (BMS protocol, Modbus RTU)
- Standards Compliance: IEC 61557-8
| Brand | BENDER |
|---|---|
| Model | IRDH275-435 |
