Bender IRDH375-UFDK Insulation Monitoring Device (ISOMETER)

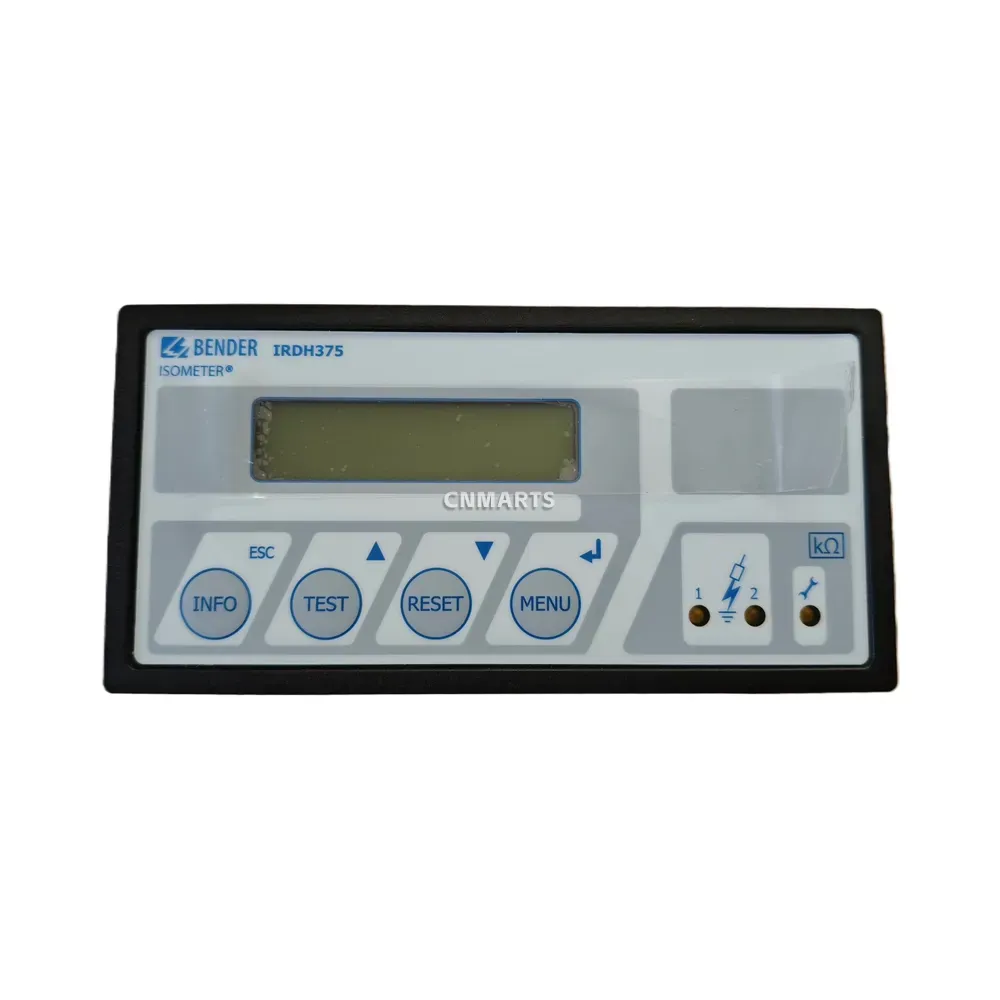

The Bender IRDH375-UFDK ISOMETER is a highly reliable, state-of-the-art insulation monitoring device engineered specifically for unearthed AC and DC main circuits (IT systems). Designed to ensure maximum electrical safety, this advanced monitor continuously tracks the insulation resistance of your systems to prevent unexpected faults and downtime. It features a clear, easy-to-read LCD display and an intuitive front panel interface equipped with INFO, TEST, RESET, and MENU keys for seamless configuration and diagnostics. With its built-in RS485 interface and selectable terminating resistor (R TERM), the IRDH375-UFDK easily integrates into modern industrial communication networks. Offering a broad response value range of 1 kOhm to 10 MOhm and robust 5A relay contacts, this device is the ideal solution for precise fault detection, system protection, and preventive maintenance in demanding electrical environments.
Technical Specifications:
- Brand: Bender
- Model: IRDH375-UFDK (Material No. B91065011W)
- Application: Unearthed AC/DC main circuits (IT systems)
- Rated Voltage (Un): 3AC/AC 0…150 V / DC 0…150 V
- Supply Voltage (Us): DC 19.2…72 V
- Response Value (Ran): 1 k…10 MOhm
- Power Consumption: 14 VA
- Relay Contacts: AC 250 V 5 A

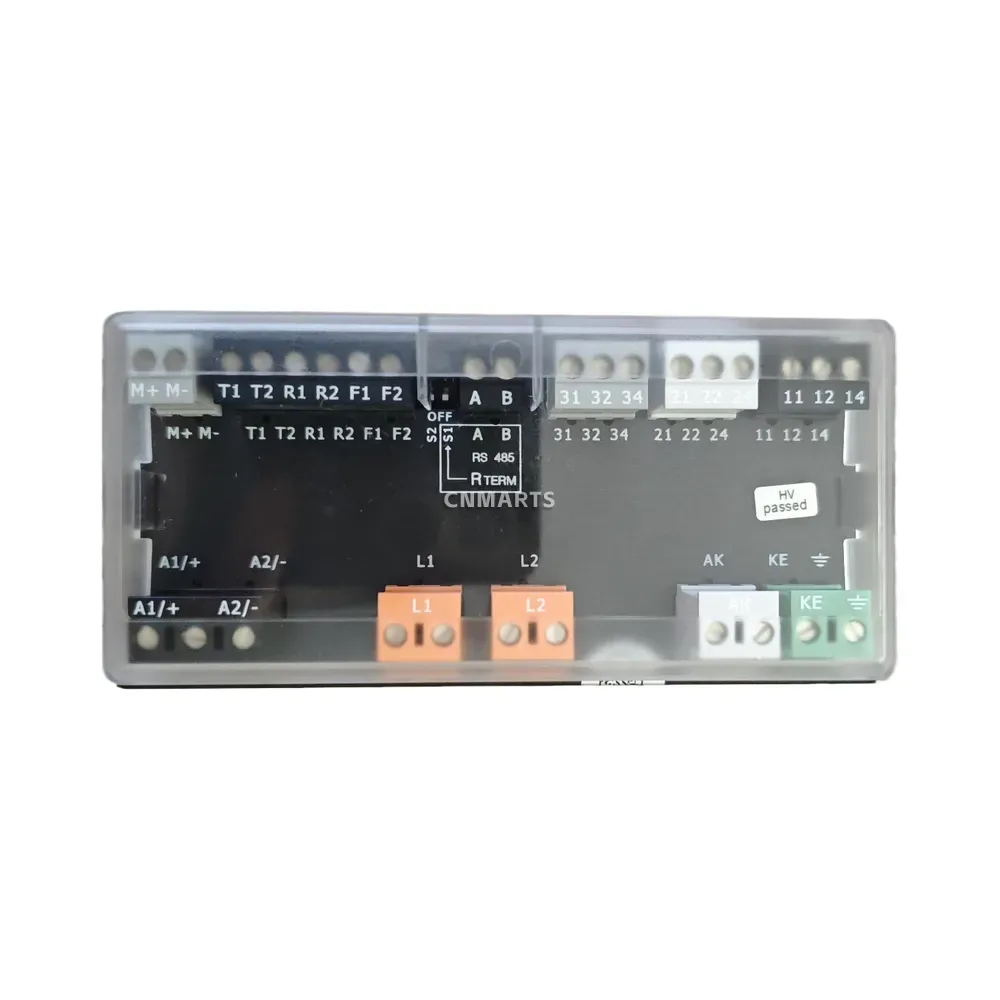

- Interface: RS485 with selectable terminating resistor (R TERM)
- Software Version: D183 V1.8
| Brand | BENDER |
|---|---|
| Model | IRDH375-UFDK |
