Bimba HCX Magnetic Switch

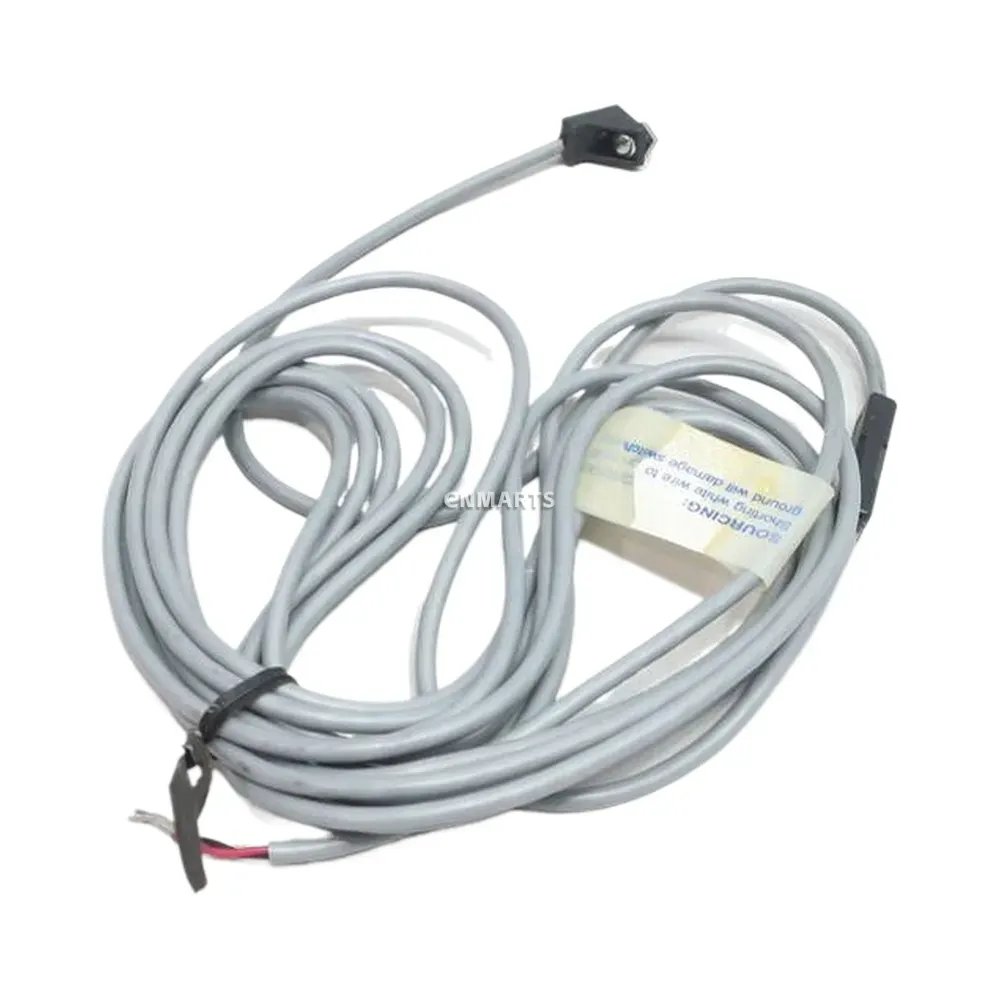

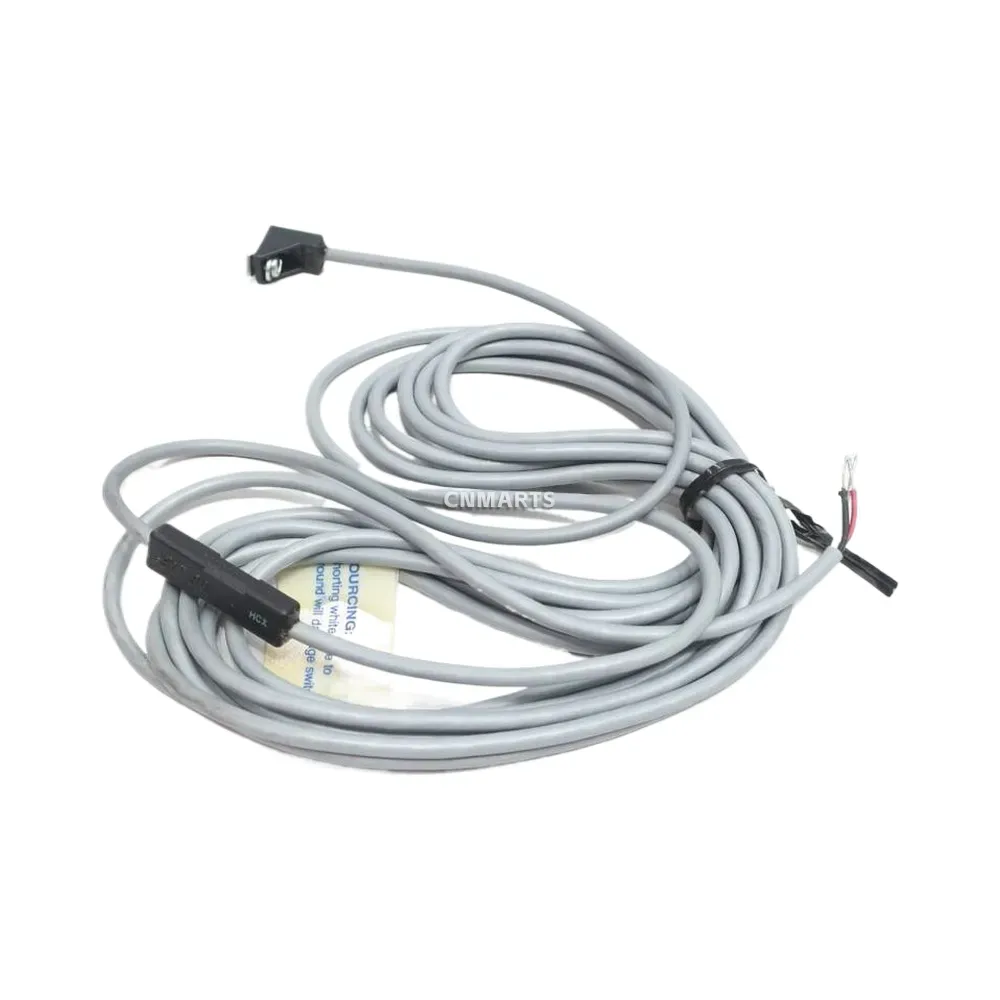

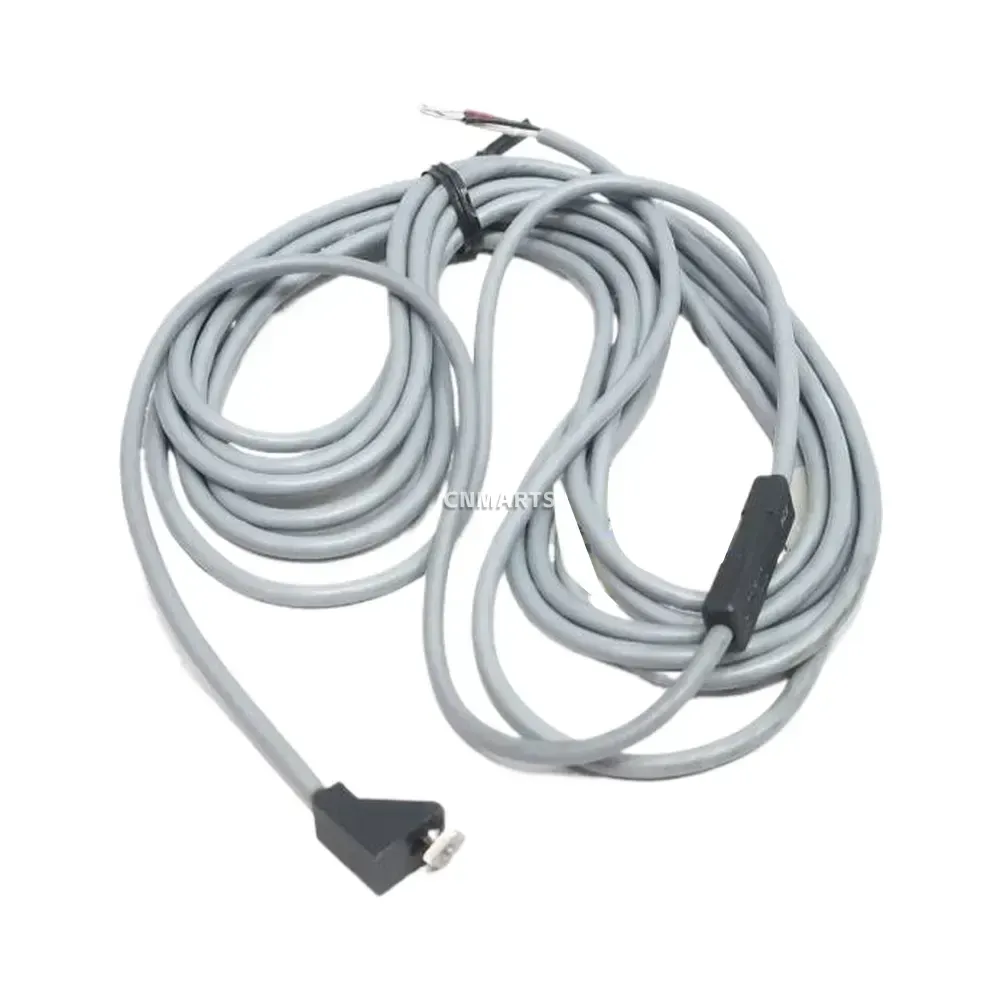

The Bimba HCX is a highly reliable Hall Effect magnetic switch designed for precise position sensing on pneumatic cylinders. Engineered for solid-state reliability, this sensor features a compact, black right-angle sensing head ideal for installations with limited space clearance. It comes equipped with a durable, long grey cable assembly and an inline housing. The unterminated flying leads (red, black, and white) allow for flexible and direct integration into various industrial control systems. Please adhere to the critical manufacturer warning attached to the cable tag: shorting the white wire to ground will cause permanent damage to the switch.
Technical Specifications:
- Brand: Bimba
- Model: HCX
- Sensor Type: Hall Effect Magnetic Switch (Solid State)
- Connection Type: 3-Wire Flying Leads (Red, Black, White)
- Head Design: Black Right-Angle Sensor Head

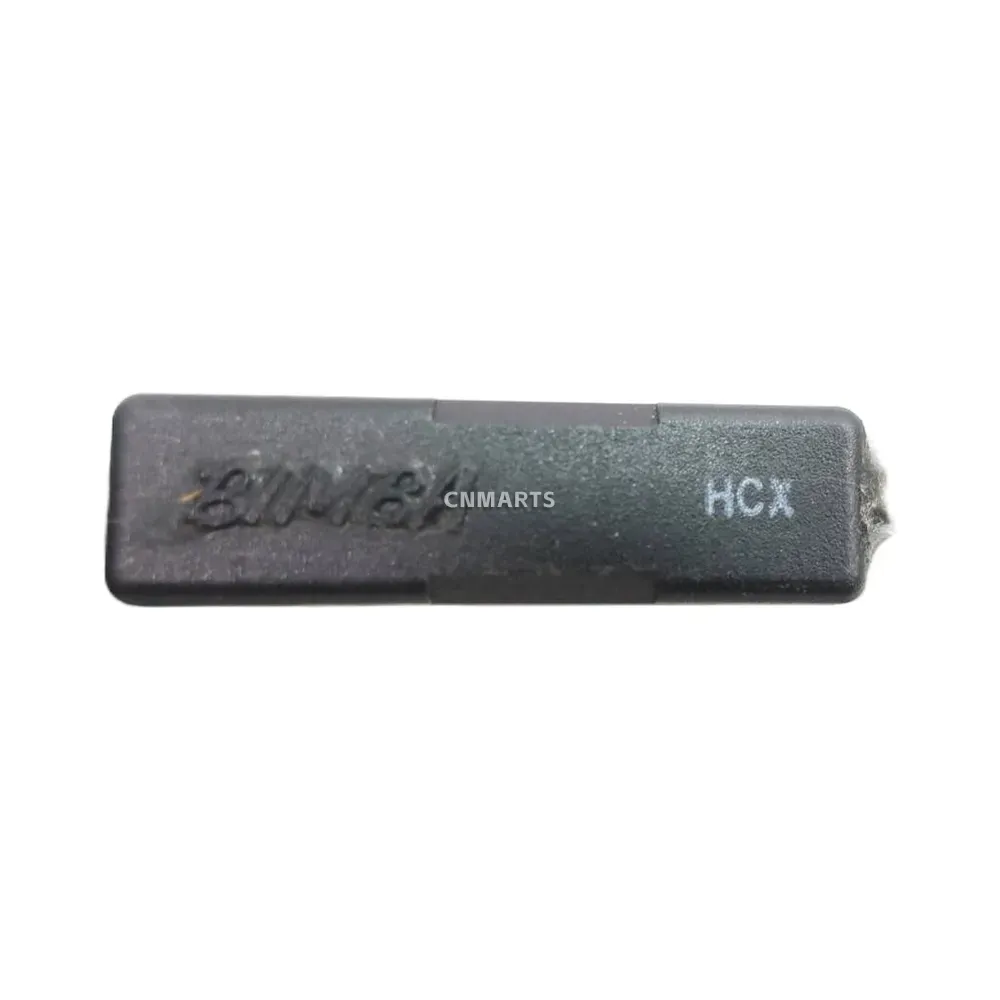

- Cable Assembly: Long Grey Cable with Inline Housing
- Handling Warning: Do not short white wire to ground (will damage switch)
| Brand | Bimba |
|---|---|
| Model | HCX |
