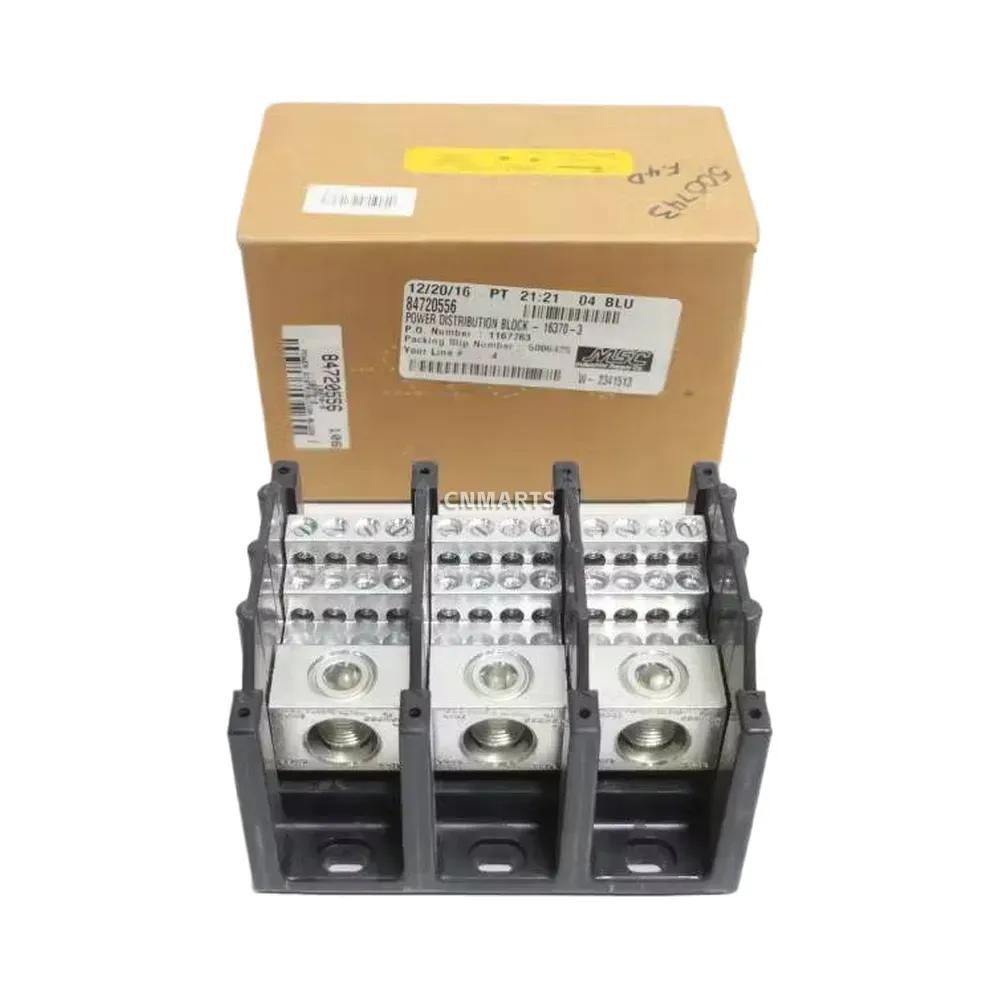

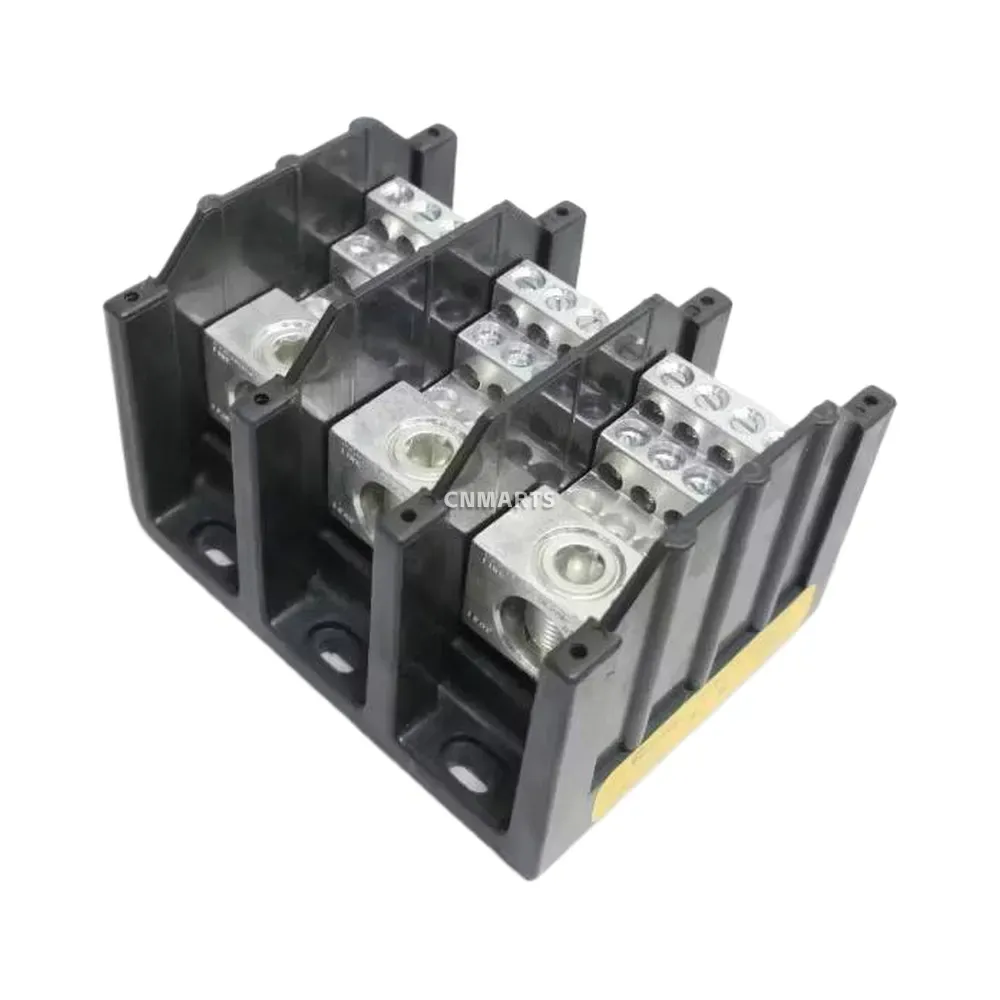

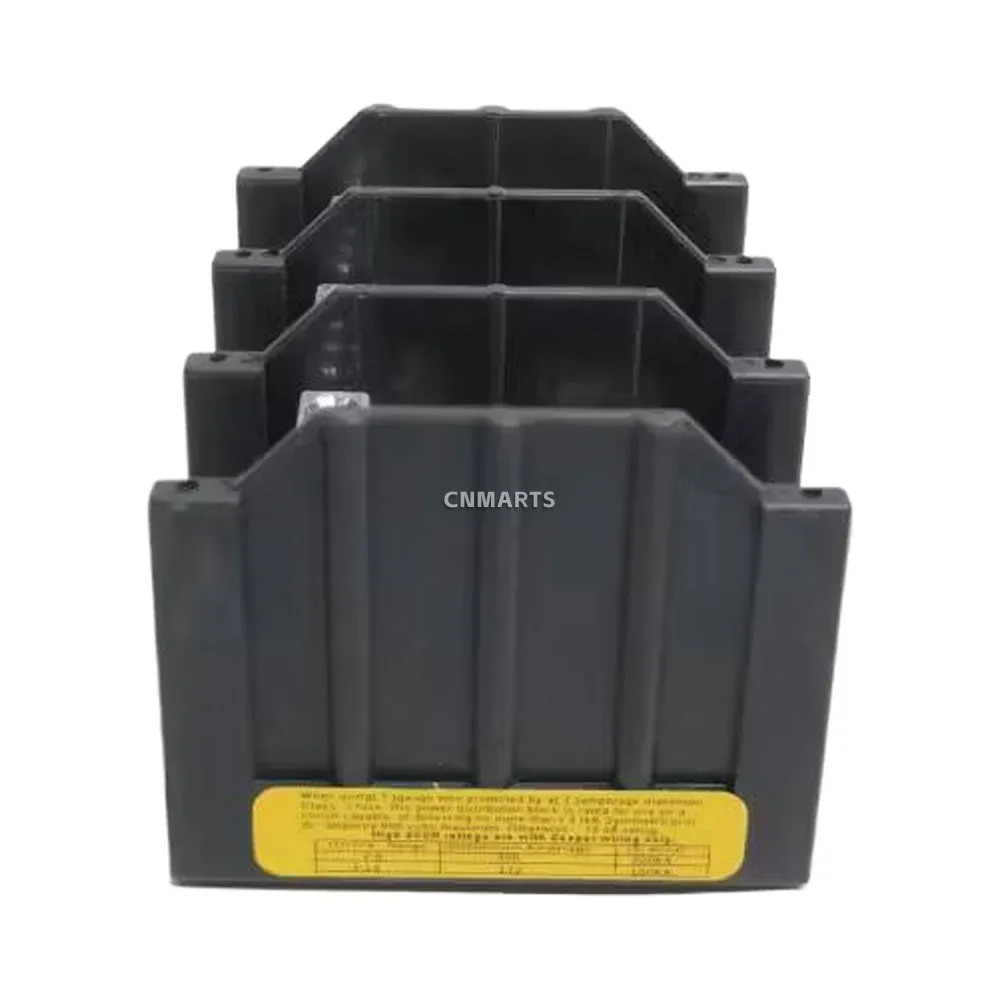

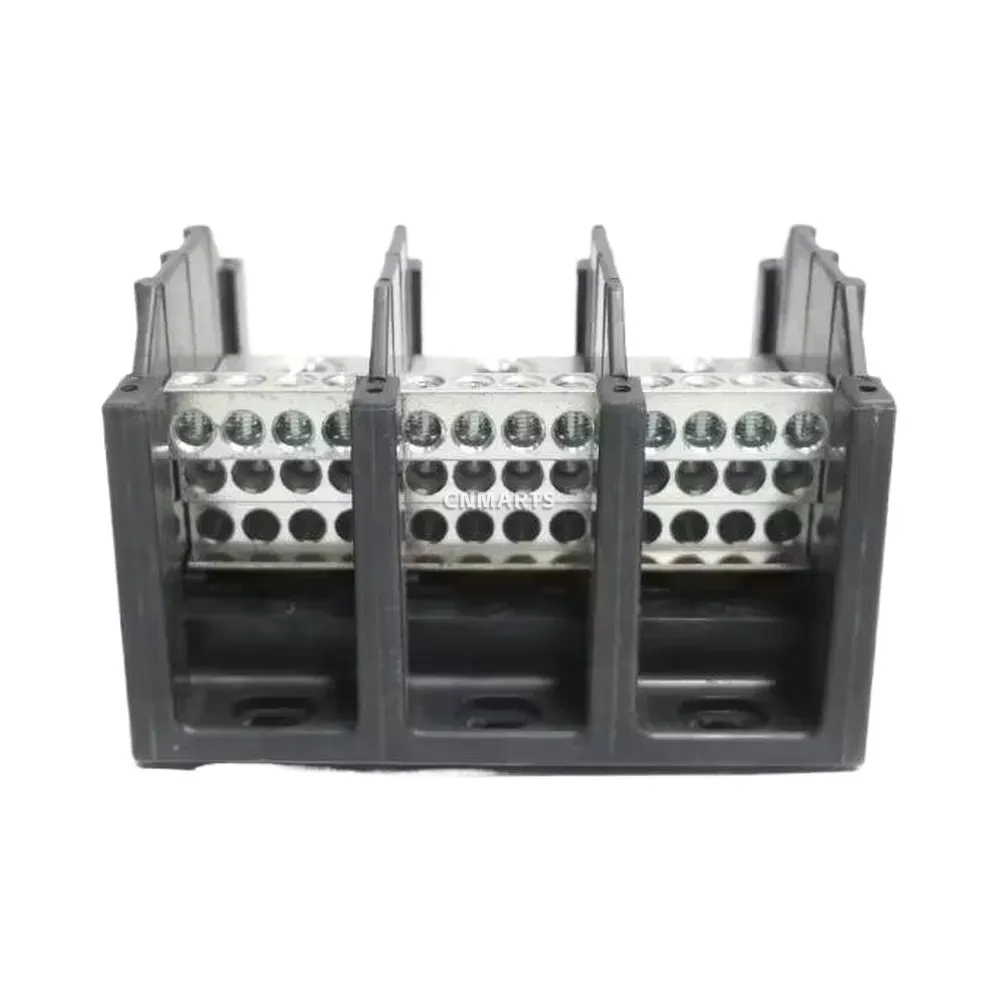

Bussmann 16370-3 Power Distribution Block
The Bussmann 16370-3 by Eaton is a heavy-duty, 3-pole power distribution block engineered to provide safe, reliable, and efficient electrical routing for commercial and industrial applications. Rated for 310 Amps at 600 Volts, this distribution block easily handles high-capacity power demands. It features a primary line-side input that accepts one 350 kcmil to 6 AWG Copper or Aluminum conductor per pole. The load side offers exceptional versatility for power distribution, providing 12 outputs per pole that accommodate 4-14 AWG Copper or 4-12 AWG Aluminum wires. Fully UL and CSA certified, the 16370-3 ensures secure terminations with clearly defined torque specifications, making it an essential component for high-capacity control panels and electrical distribution systems.
Technical Specifications:
- Brand: Bussmann (Eaton)
- Model: 16370-3
- Pole Configuration: 3-Pole
- Amperage Rating: 310 A
- Voltage Rating: 600 V
- Line Side Wire Range: (1) 350 kcmil – 6 AWG (Cu/Al) per pole
- Line Side Torque: 275 lb-in
- Load Side Wire Range: (12) 4-14 AWG (Cu) or 4-12 AWG (Al) per pole

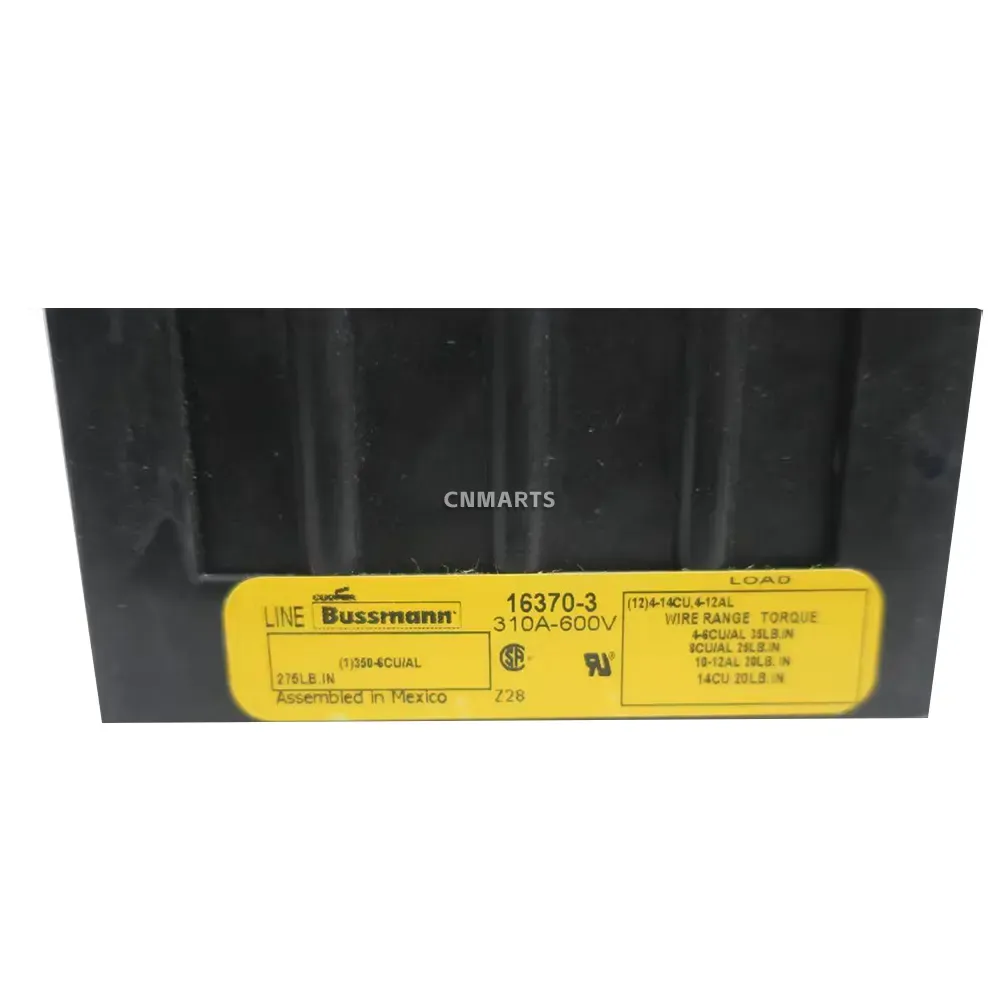

- Load Side Torque: 35 lb-in (4-8 AWG Cu/Al), 25 lb-in (8 AWG Cu/Al), 20 lb-in (10-12 AWG Al), 20 lb-in (14 AWG Cu)
- Certifications: UL and CSA Certified
- Country of Origin: Assembled in Mexico
| Brand | Bussmann |
|---|---|
| Model | 16370-3 |
