Caterpillar 214-7755 Voltage Regulator

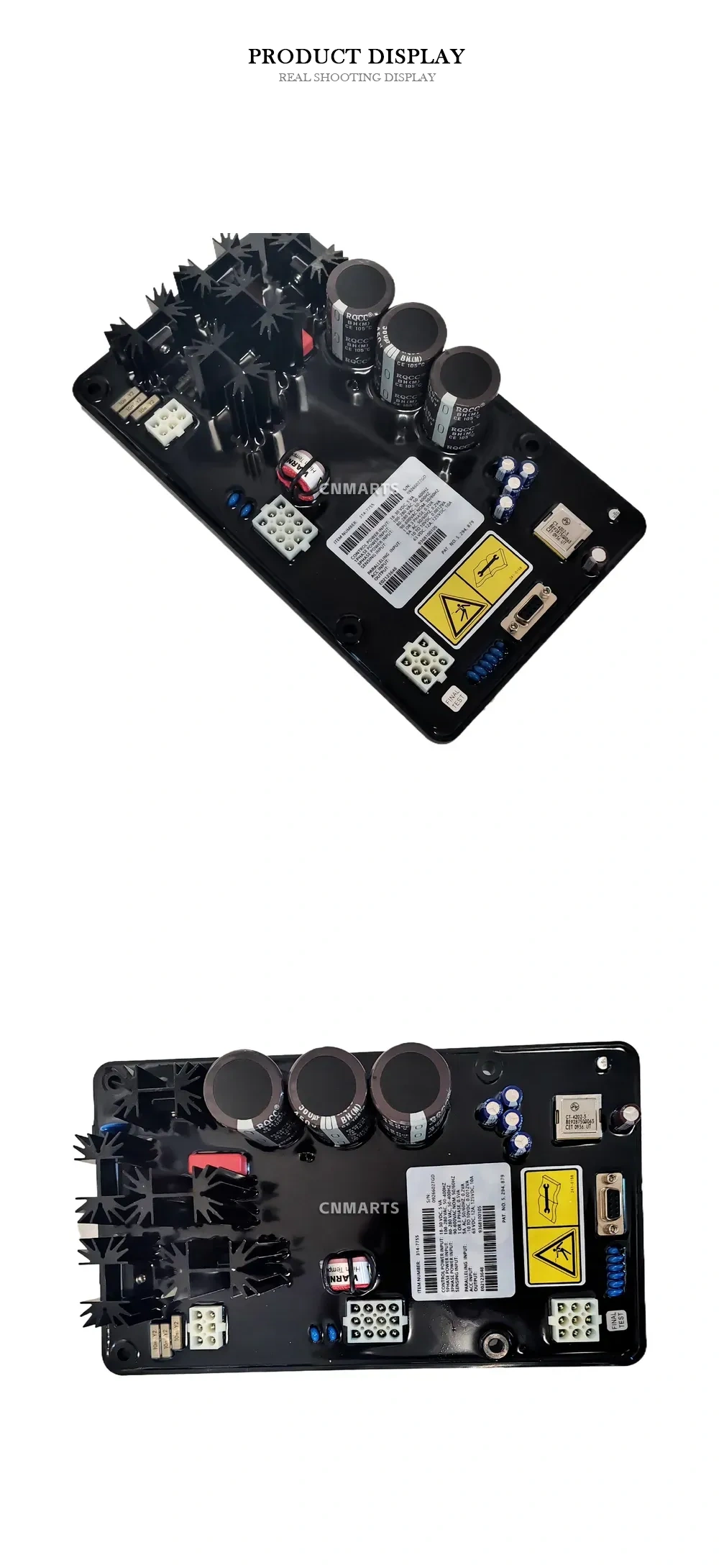

The Caterpillar 214-7755 is a highly reliable electronic voltage regulator circuit board engineered specifically for heavy-duty industrial generator applications. Designed to ensure stable and precise voltage output under fluctuating loads, this genuine OEM Caterpillar component features a robust construction. It comes fully equipped with integrated heatsinks, large electrolytic capacitors, and secure terminal blocks for optimal thermal management and electrical performance. Supporting versatile power configurations—including 18-36 VDC control power, 100-240 VAC single-phase, and 80-230 VAC three-phase inputs—this voltage regulator is an essential replacement part for maintaining the efficiency, safety, and longevity of your CAT generator systems.
Technical Specifications:
- Brand: Caterpillar
- Model / Item Number: 214-7755
- Control Power Input: 18-36 VDC, 5 VA
- 1-Phase Power Input: 100-240 VAC, 50-60HZ
- 3-Phase Power Input: 80-230 VAC, 50-60HZ
- Sensing Input: 80-200VAC 50VA 50/60HZ (For 1 Phase, 0.5VA)
- Paralleling Input: 5A AC 50/60HZ 0.5VA
- ACZ Input: 18 VDC 100mA, 24 VDC 2.0A
- Output: 63 VDC at 12A / 125 VDC at 10A
- Patent Number: 5,294,879
| Brand | Caterpillar |
|---|---|
| Model | 214-7755 |
