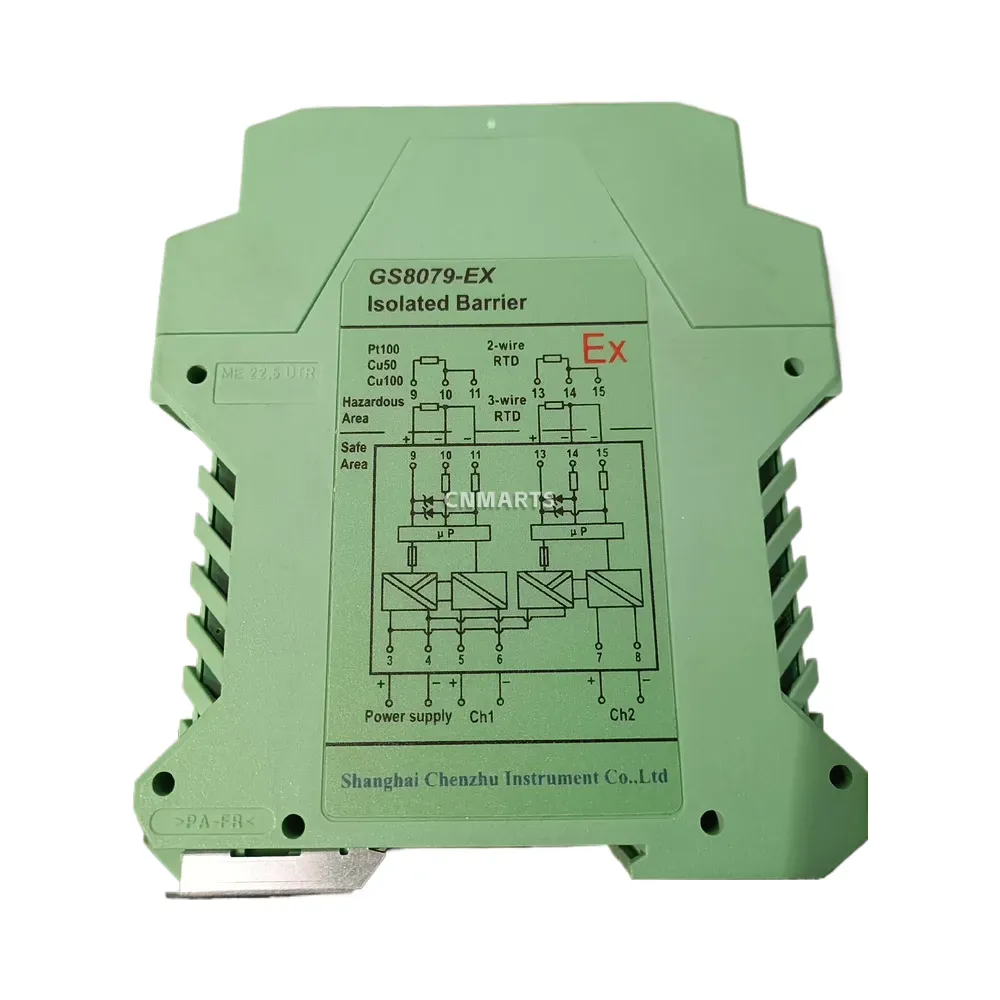

Chenzhu GS8079-EX Dual-Channel RTD Isolated Barrier
The Chenzhu GS8079-EX is a high-performance, dual-channel isolated barrier engineered for intrinsic safety applications. It is specifically designed to receive signals from Resistance Temperature Detector (RTD) sensors located in hazardous areas and safely transmit them to control systems in the safe area. This device provides reliable 3-port isolation between the input, output, and power supply, ensuring system integrity and personnel safety. The GS8079-EX is highly versatile, supporting common RTD types such as Pt100, Cu50, and Cu100, and is configurable for both 2-wire and 3-wire connections, making it a flexible solution for temperature monitoring in explosive atmospheres.
Technical Specifications:
- Model: GS8079-EX
- Number of Channels: 2 (Dual-Channel)
- Input Signal Type: 2-wire / 3-wire RTD
- Supported RTD Sensors: Pt100, Cu50, Cu100
- Safe Area Output: Configurable 4-20mA or 1-5V
- Power Supply: 20-35V DC
- Intrinsic Safety Certification: [Ex ia Ga] IIC/IIB
- Isolation: 3-port isolation (Input/Output/Power Supply)
| Brand | Chenzhu |
|---|---|
| Model | GS8079-EX |
