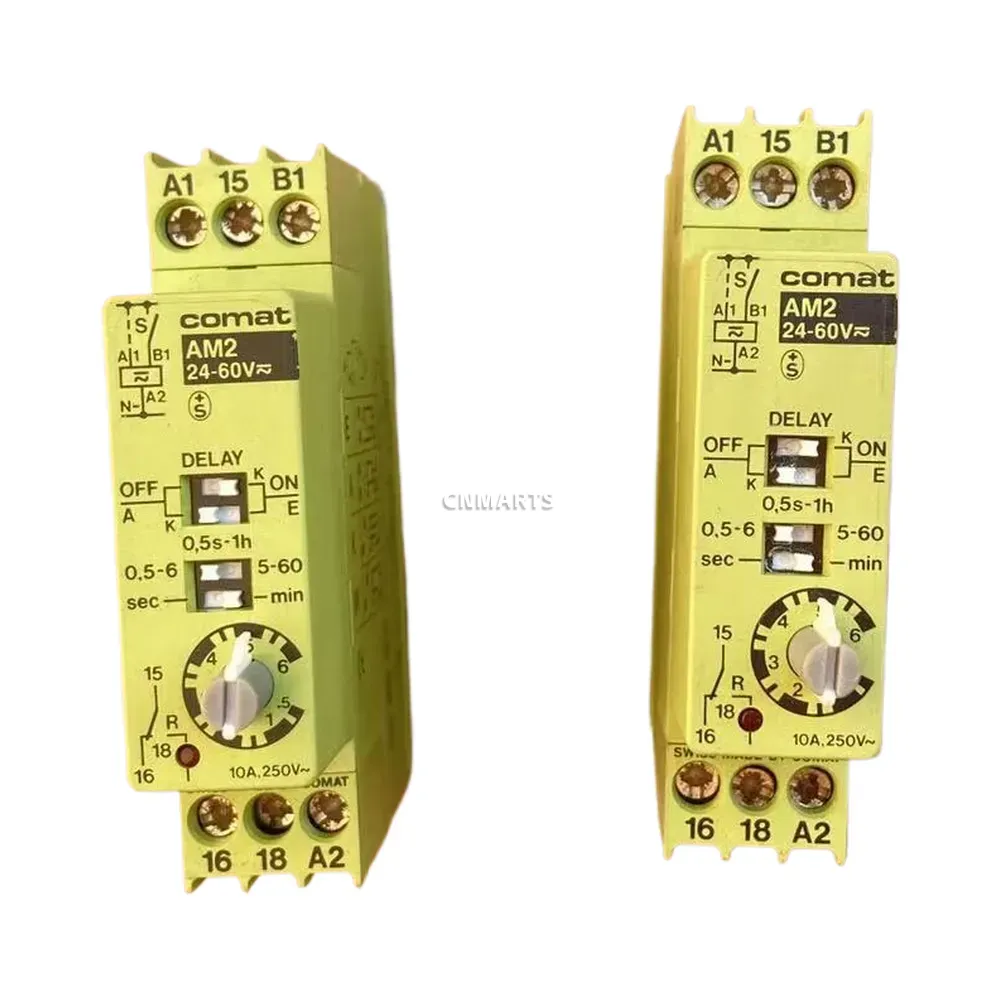

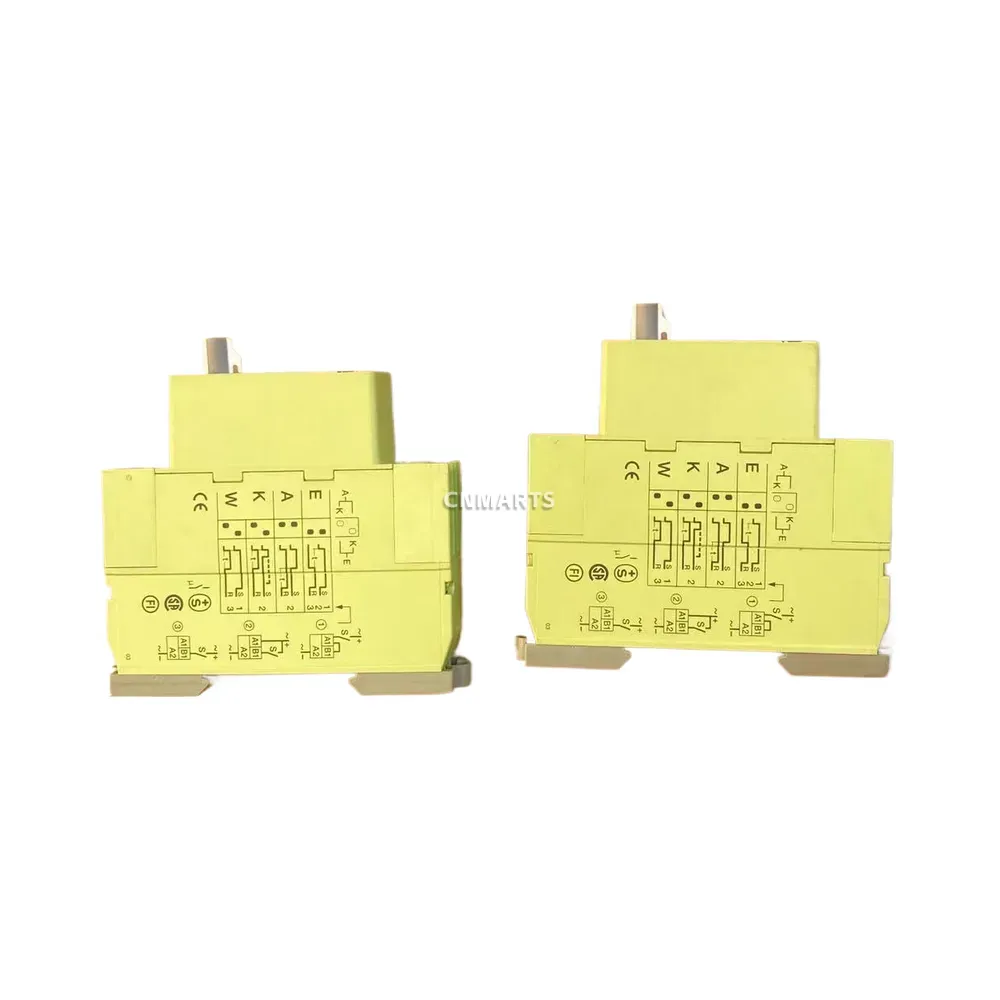

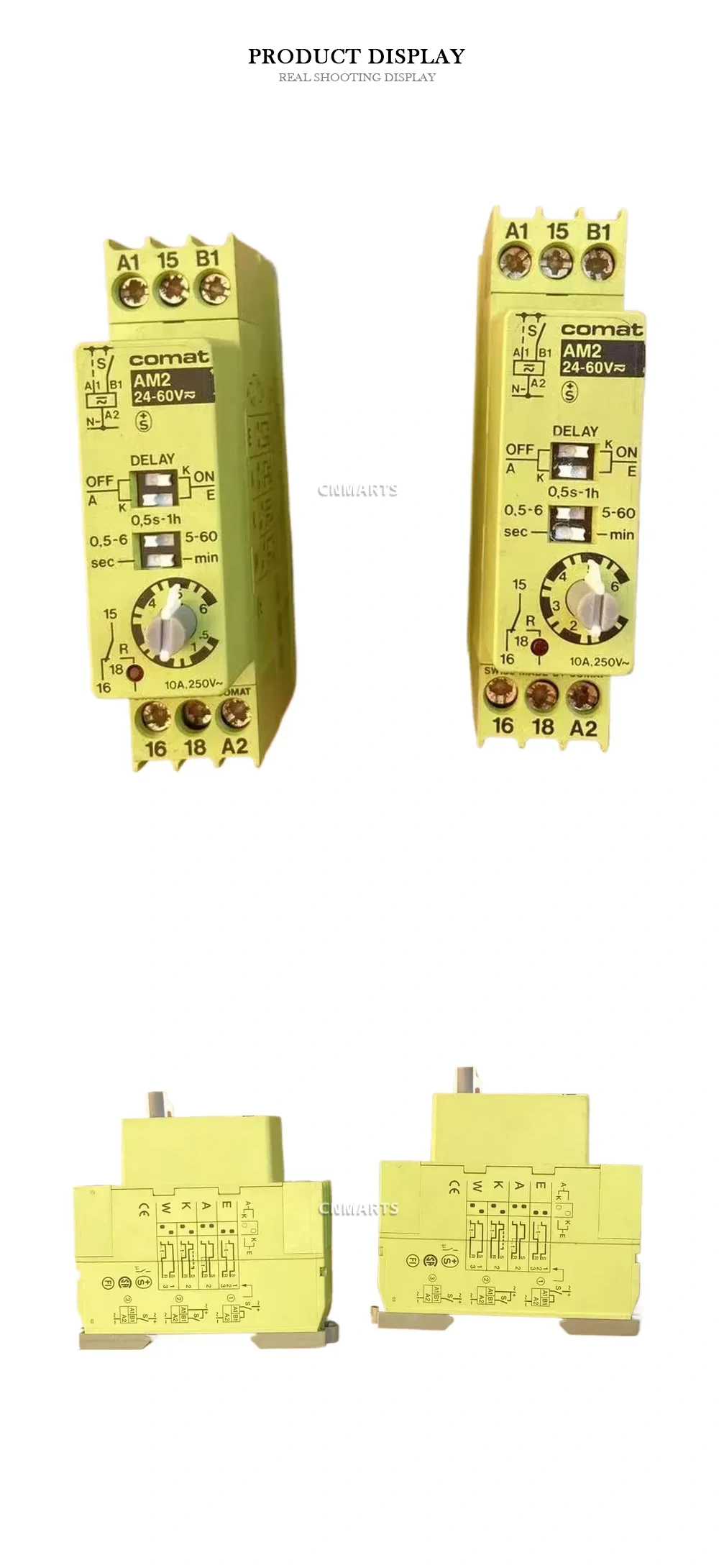

COMAT AM2 Multifunction Time Relay (Timer)
The COMAT AM2 is a highly versatile and compact multifunction electronic time relay designed for seamless integration into industrial automation and control systems. Engineered for standard DIN rail mounting, this robust timer operates on a flexible control voltage of 24-60 V AC/DC. It offers four easily selectable time functions (E, A, K, and W) to accommodate a wide variety of application requirements. Users can precisely configure the delay range from 0.5 seconds up to 1 hour using the intuitive range switch and rotary dial. Equipped with a reliable 10 A / 250 V AC changeover output contact and secure screw terminals, the AM2 delivers dependable, long-lasting performance for demanding industrial environments.
Technical Specifications:
- Brand / Model: COMAT / AM2
- Rated Control Voltage: 24-60 V AC/DC
- Time Functions: Selectable E, A, K, W
- Delay Range: 0.5 s to 1 h (Switchable ranges: 0.5-6 sec / 5-60 min)
- Output Contact: 1 Changeover (SPDT) rated 10 A / 250 V AC (Terminals 15, 16, 18)
- Control Input: Input S between terminals A1/B1
- Mounting & Connection: DIN rail mountable with standard screw terminals
| Brand | COMAT |
|---|---|
| Model | AM2 |
