Consilium 5100001-20A Gas Detection Control Module

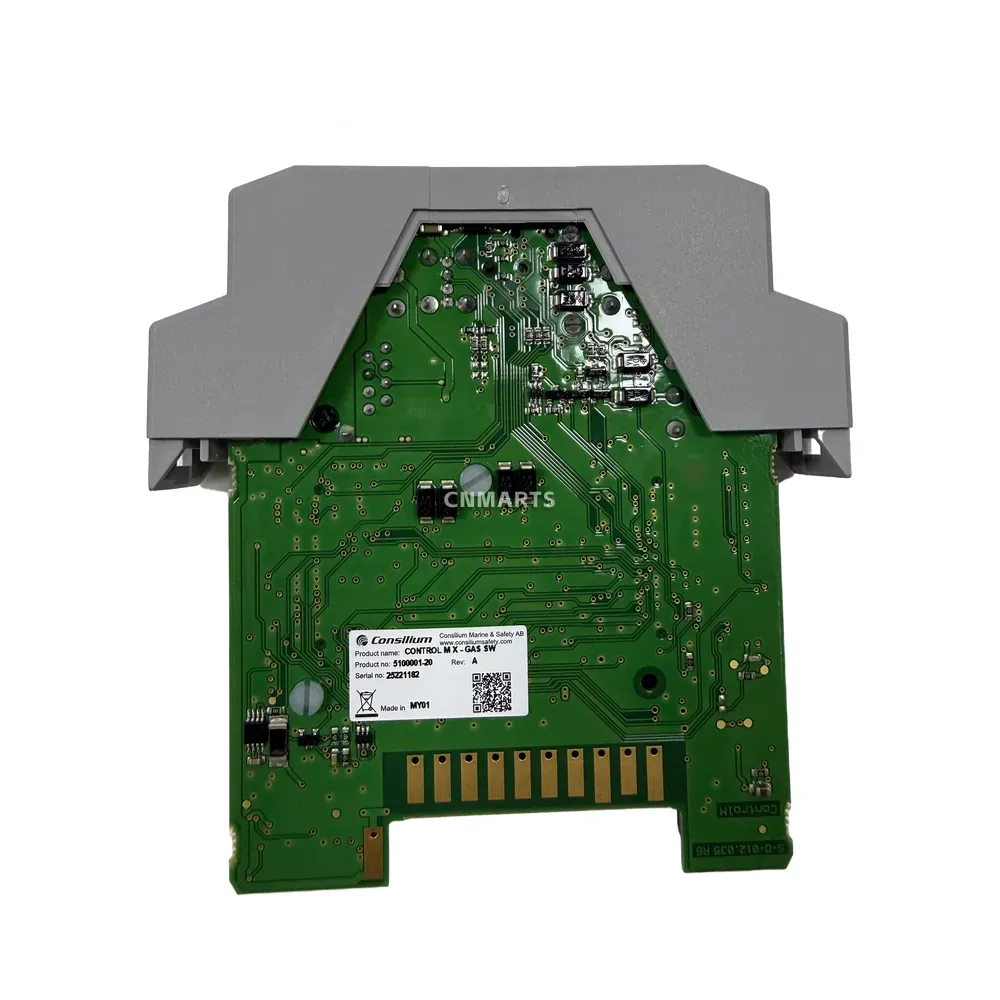

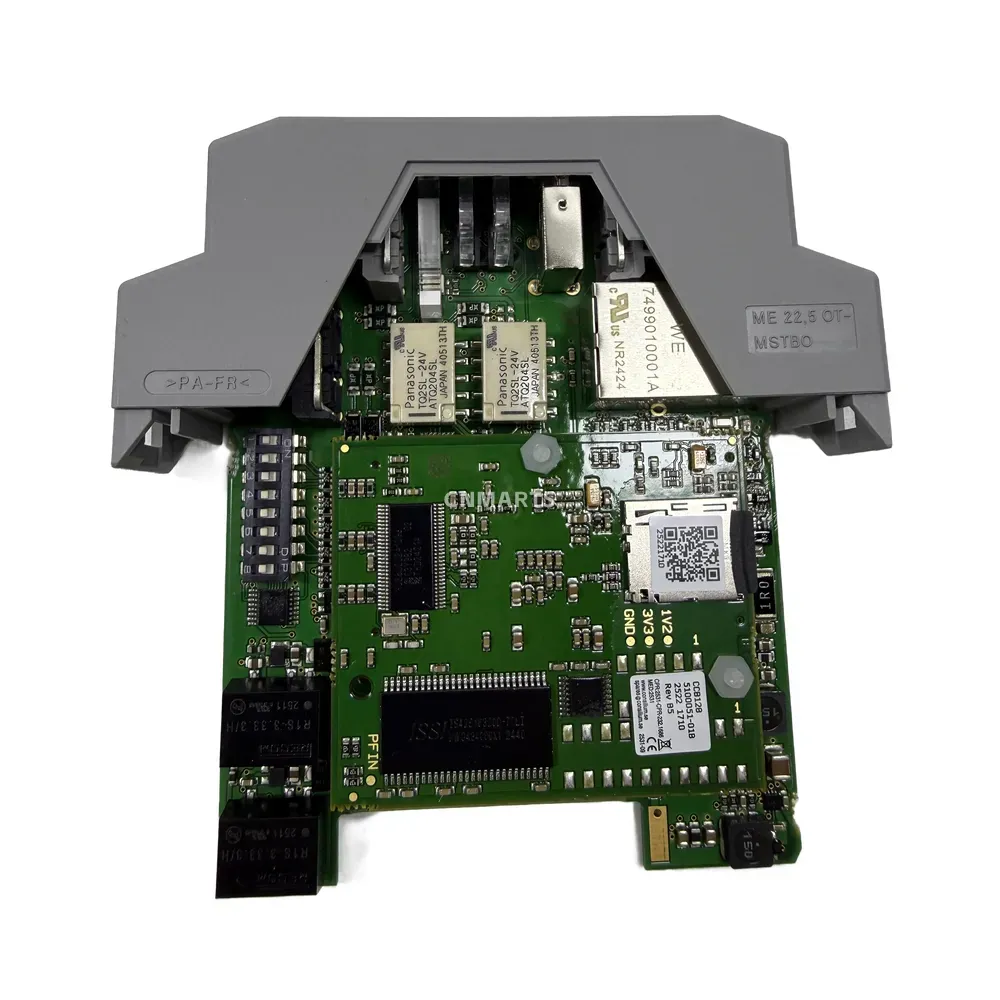

The Consilium 5100001-20A is a highly reliable PCB control module specifically engineered for the Consilium MX-GAS gas detection system. Manufactured by Consilium Marine & Safety AB, this unit (also identified as CONTROL M X – GAS SW) is essential for monitoring and processing gas detection signals in critical marine and industrial environments. The module features a robust green printed circuit board with a gold-plated edge connector, an onboard microcontroller, ISSI memory, and a DIP switch for system configuration. It is built with premium components, including Panasonic TQ2-5V relays and a Würth Elektronik 7499010001A transformer, ensuring optimal signal integrity and operational stability. For ease of maintenance, the board includes integrated test points (GND, 3V3, 1V2). The entire assembly is safely housed in a durable grey DIN-rail mount enclosure (ME 22,5 OT-MSTBO, >PA-FR<) for secure and standardized control cabinet installation.
Technical Specifications:
- Brand: Consilium Marine & Safety AB

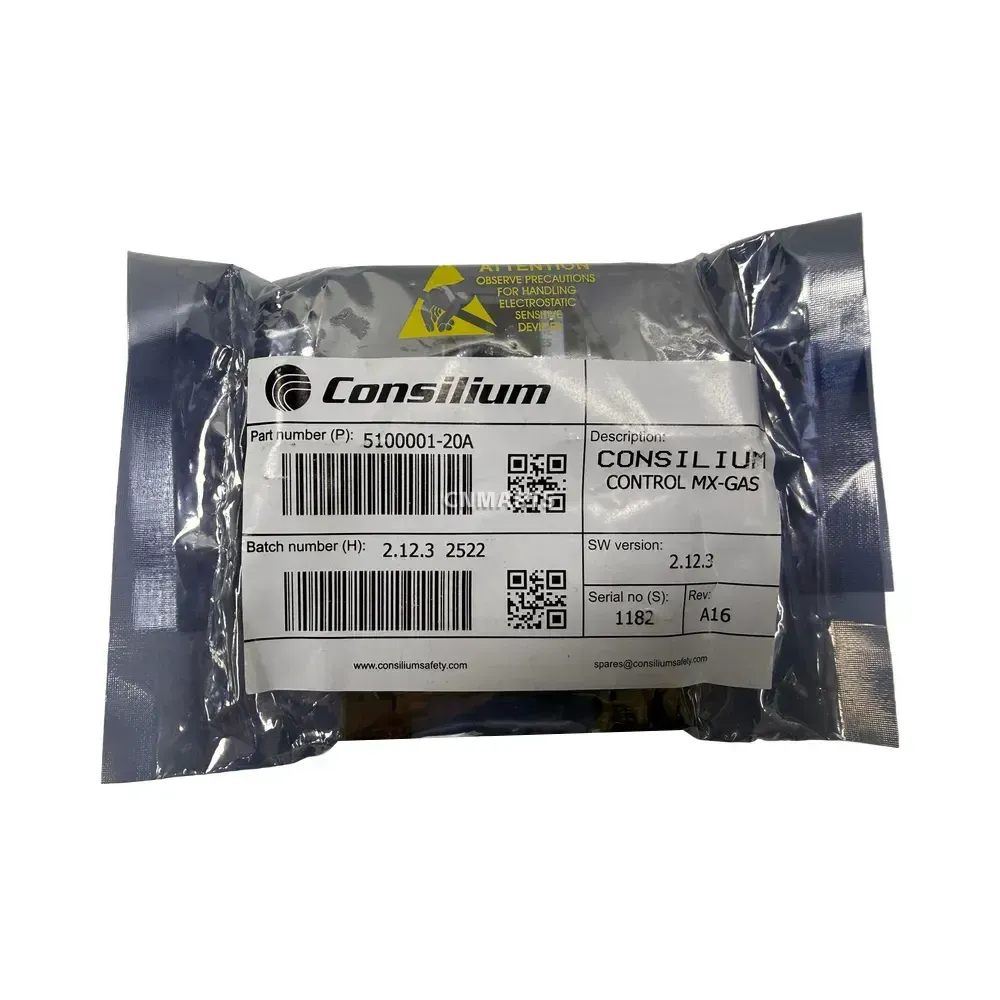

- Model / Part Number: 5100001-20A (Product No: 5100001-20)
- System Compatibility: Consilium MX-GAS Gas Detection System
- Software Version: 2.12.3
- Hardware Revision: A16 / B5
- Key Components: Panasonic TQ2-5V Relays, Würth Elektronik 7499010001A Transformer, ISSI Memory
- Mounting / Enclosure: Grey DIN-rail mount enclosure (ME 22,5 OT-MSTBO, >PA-FR<)
| Brand | CONSILIUM |
|---|---|
| Model | 5100001-20A |
