CT MDA75 Industrial Drive PCB Assembly

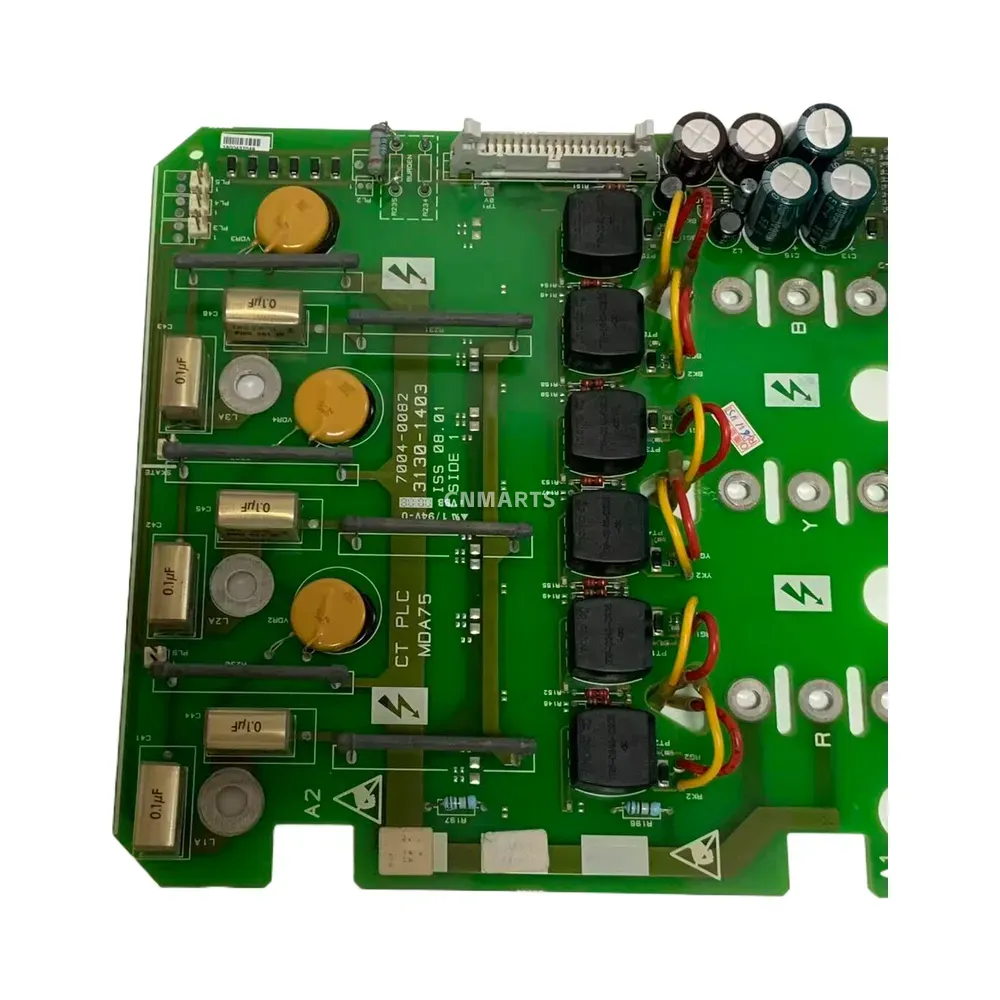

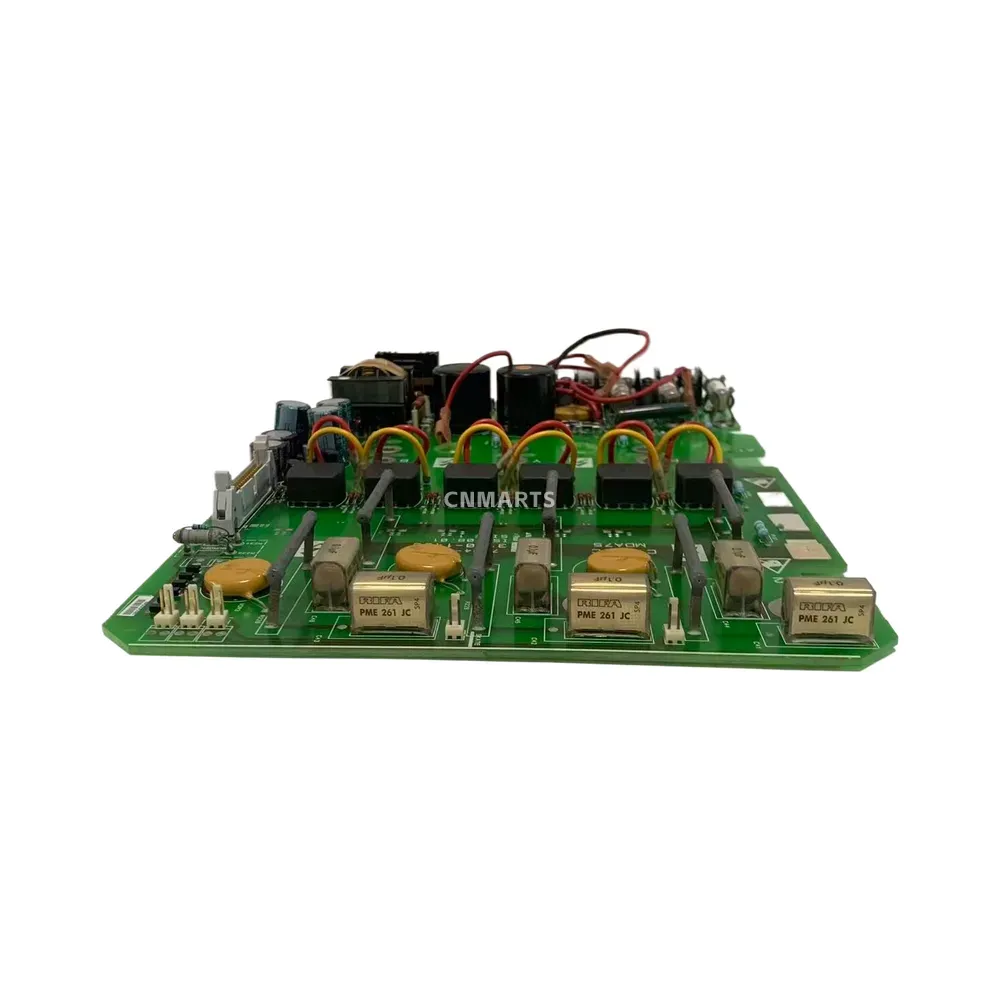

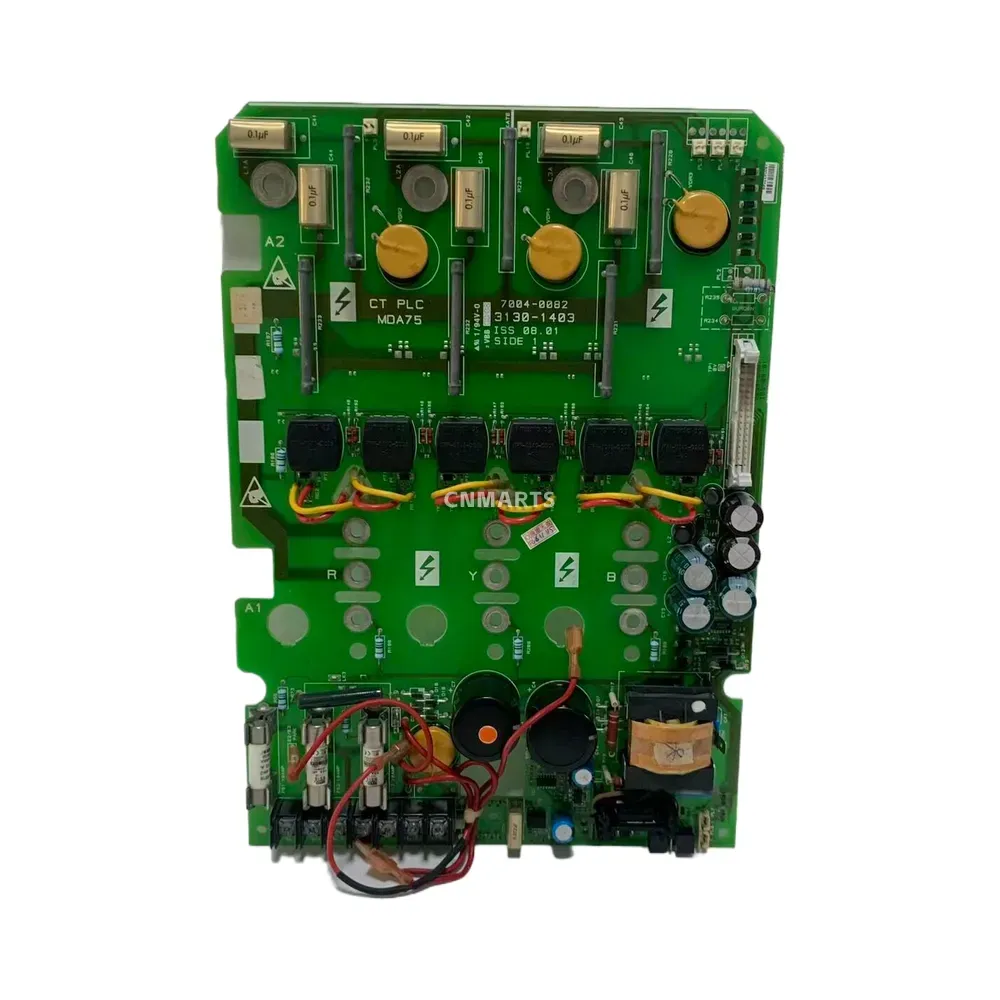

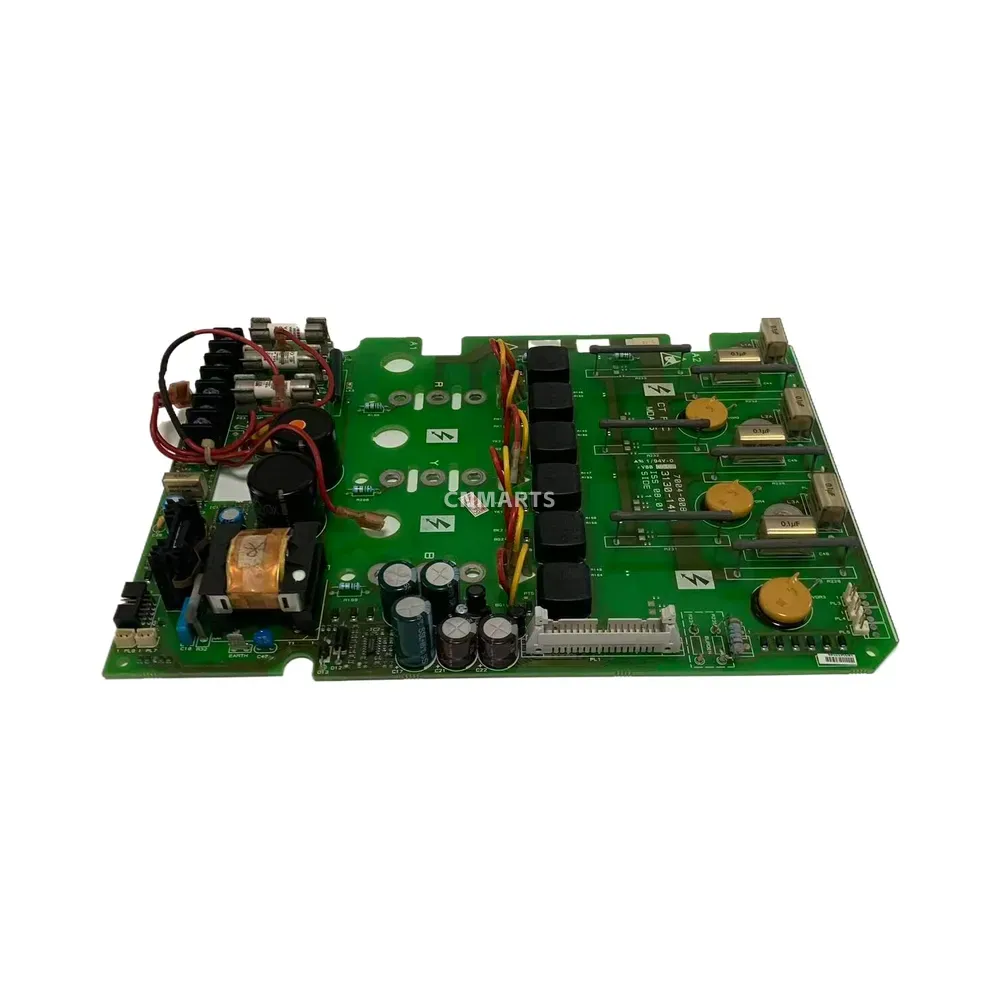

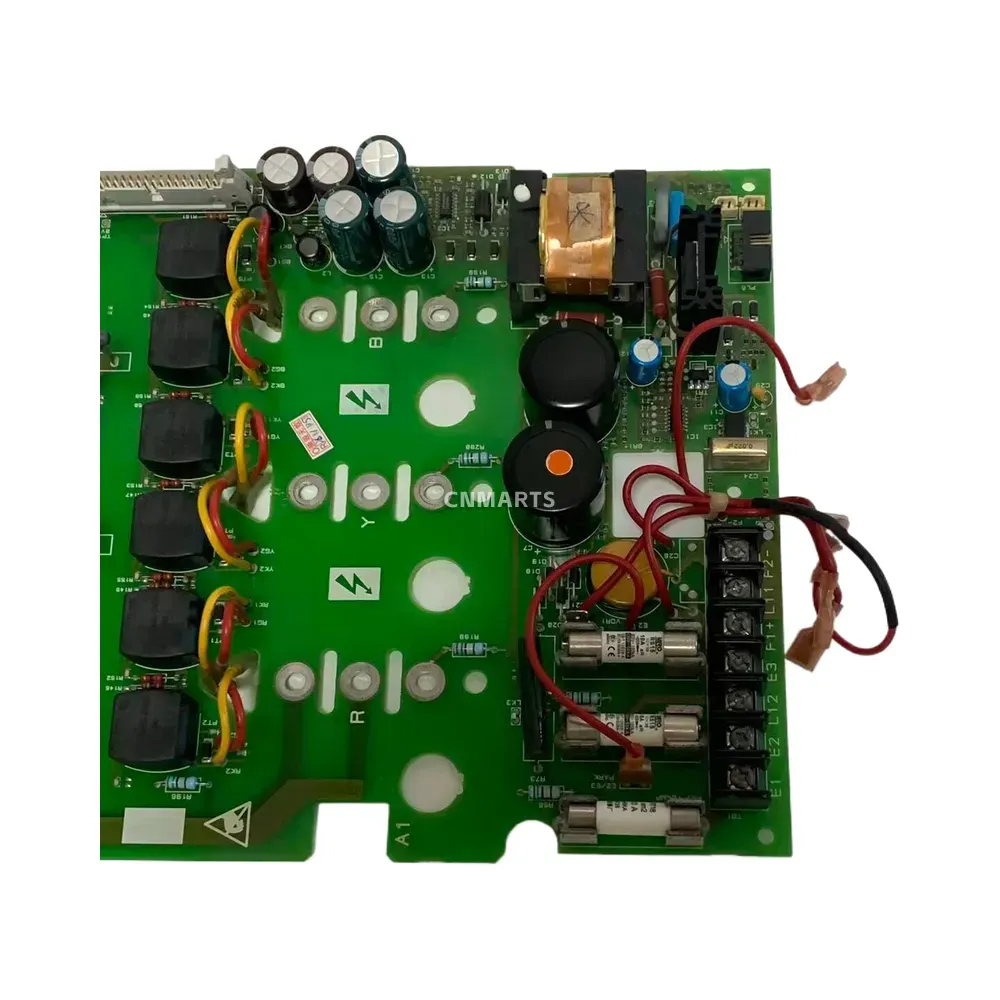

The CT (Control Techniques) MDA75 is a heavy-duty industrial drive printed circuit board (PCB) assembly engineered for reliable power regulation and motor control. This green PCB is populated with high-quality components, including film and electrolytic power capacitors (featuring PME 261 JC series), integrated relay modules, protective fuses, and an onboard transformer. Designed with safety and ease of maintenance in mind, the board includes high voltage warning symbols and clear R, Y, and B phase markings. Connectivity is handled via robust terminal blocks (marked E1, E2, L12, B3, F1+, L11, F2-) and a large white ribbon cable connector for seamless system integration. Bearing part numbers 7004-0002 and 3130-1403 (ISS 08.01), this assembly is a direct replacement part essential for keeping your industrial drive systems running at peak operational performance.
Technical Specifications:
- Brand / Manufacturer: CT (Control Techniques)
- Model Number: MDA75
- Part Numbers: 7004-0002 / 3130-1403 (ISS 08.01)
- Terminal Identifiers: E1, E2, L12, B3, F1+, L11, F2-
- Phase Markings: R, Y, B (with High Voltage Warnings)
- Board Components: Power Capacitors (Film/Electrolytic), Relay Modules, Fuses, Transformer, Ribbon Cable Connector
| Brand | CT |
|---|---|
| Model | MDA75 |
