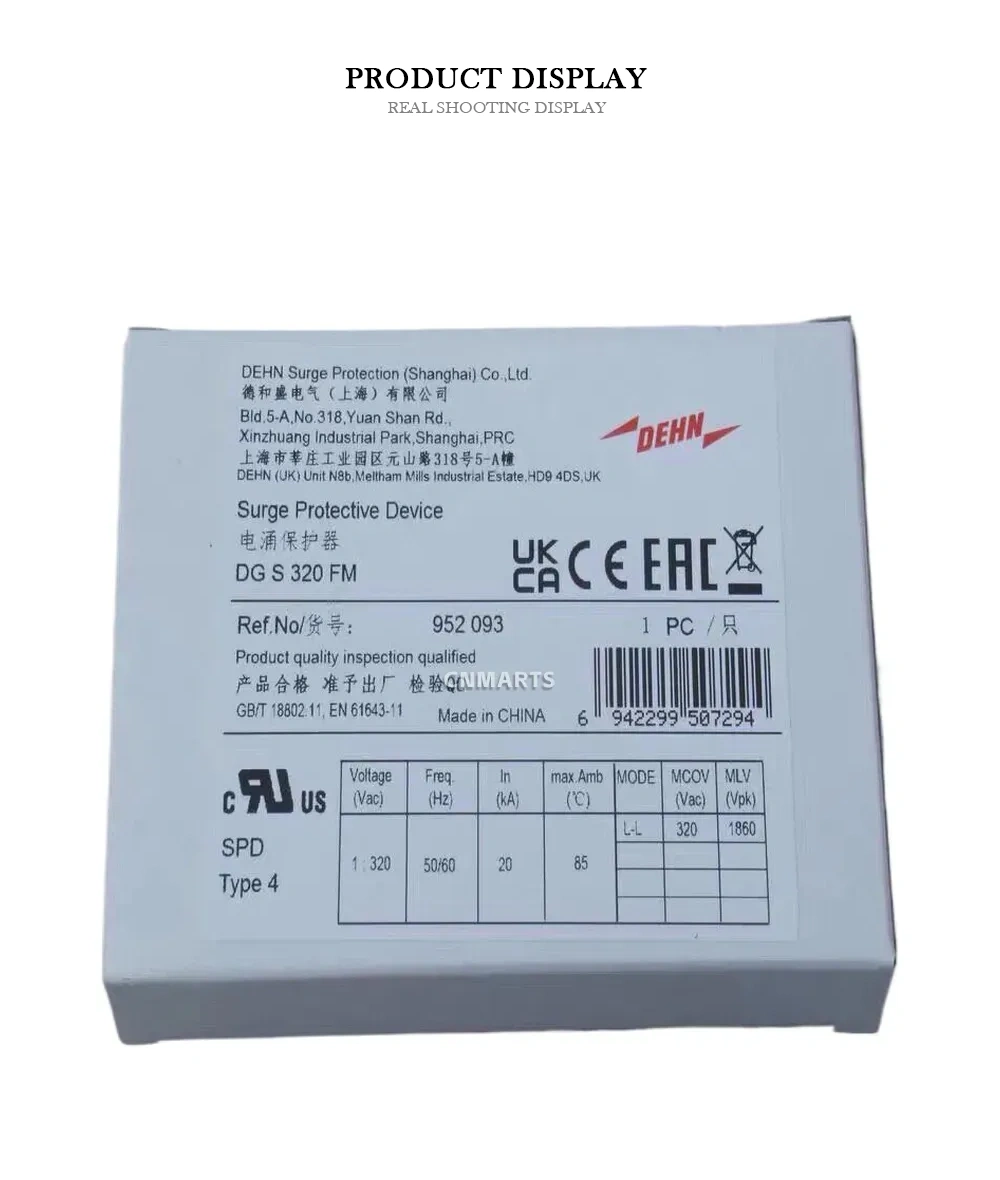

DEHN DG S 320 FM Surge Protective Device
The DEHN DG S 320 FM (Reference Number: 952 093) is a highly reliable, single-pole surge protective device (SPD) engineered to safeguard low-voltage power supply systems and equipment from transient overvoltages and power surges. Featuring a modular design with advanced varistor technology, this Type 4 SPD ensures robust protection with a nominal discharge current of 20 kA. The “FM” designation indicates it comes equipped with a floating remote signaling contact for seamless integration into facility monitoring systems. Compliant with stringent international standards including EN 61643-11 and GB/T 18802.11, the DG S 320 FM guarantees optimal safety and performance in demanding industrial environments with operating temperatures up to 85°C.
Technical Specifications:
- Brand: DEHN
- Model: DG S 320 FM
- Reference Number: 952 093
- SPD Classification: Type 4
- Voltage / Frequency: 1 ~ 320 Vac, 50/60 Hz
- Max. Continuous Operating Voltage (MCOV): 320 Vac
- Nominal Discharge Current (In): 20 kA
- Measured Limiting Voltage (MLV): 1860 Vpk
- Protection Mode: L-L
- Max Ambient Temperature: 85°C
- Standards: GB/T 18802.11, EN 61643-11
- Certifications: UKCA, CE, EAC, cURus
| Brand | DEHN |
|---|---|
| Model | DG S 320 FM |
