DEIF AL8-2 Alarm Unit
Optimize your industrial or marine monitoring with the DEIF AL8-2 Alarm Unit. This compact Q96 module offers 10 customizable input channels, easy jumper-free push-button programming, first-alarm identification, and master/slave scalability for up to 5 units. Ensure maximum safety and reliability with built-in cable supervision and diagnostic testing.
Payment Methods:
-
Online Support 24/7
-
12 Months Warranty for New Products
-
30 Days Money Back Guarantee
DEIF AL8-2 Alarm Unit
The DEIF AL8-2 Alarm Unit is a highly versatile and compact Q96 design alarm system engineered for reliable monitoring in industrial and marine applications. It features 10 dedicated input channels (1-8, A, and B) and offers extremely easy push-button programming, completely eliminating the need for complex jumper configurations. Each input can be individually programmed for normally open (N/O) or normally closed (N/C) operations, time delays, alarm inhibits, outputs, and cable supervision. Designed for advanced scalability, the AL8-2 supports master/slave configurations for up to 5 units. It ensures rapid troubleshooting by providing clear visual identification of the first alarm received during successive alarm events, and includes essential LED indicators for Inhibit of Alarms, Cable Failure, and Power On, alongside built-in Function Test and Lamp Test capabilities.
Technical Specifications:
- Brand: DEIF
- Model: AL8-2
- Design Format: Compact Q96 panel mount design
- Input Channels: 10 total channels (1-8, A, B)
- Programming: Intuitive push-button setup (jumper-free)
- Channel Configuration: Individual settings for N/O or N/C, time delay, alarm inhibit, output, and cable supervision
- System Scalability: Master/slave configuration supported (up to 5 units)
- Alarm Diagnostics: Clear identification of the first alarm received

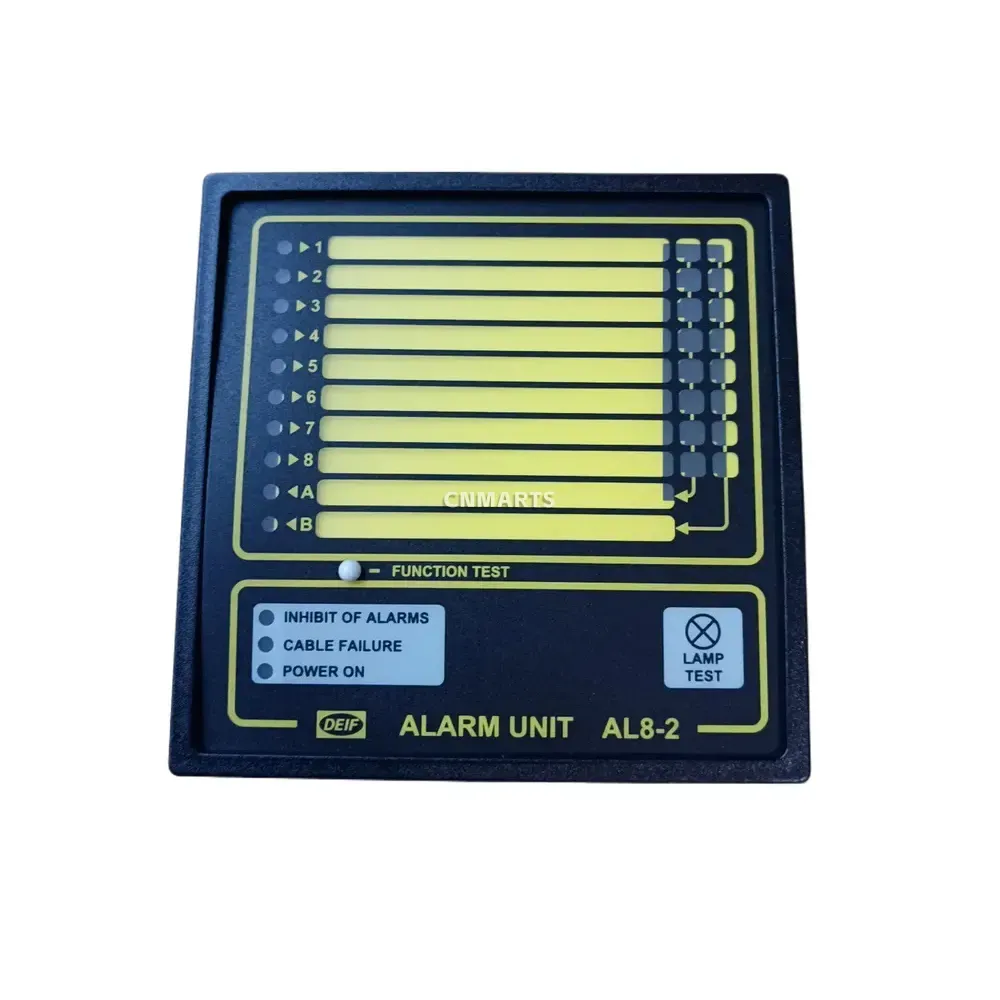

- Front Panel Indicators: Inhibit of Alarms, Cable Failure, Power On
- Testing Capabilities: Built-in Function Test and Lamp Test
| Brand | DEIF |
|---|---|
| Model | AL8-2 |
