DNQ5611 JHAC13385-2 Industrial Control Board Assembly

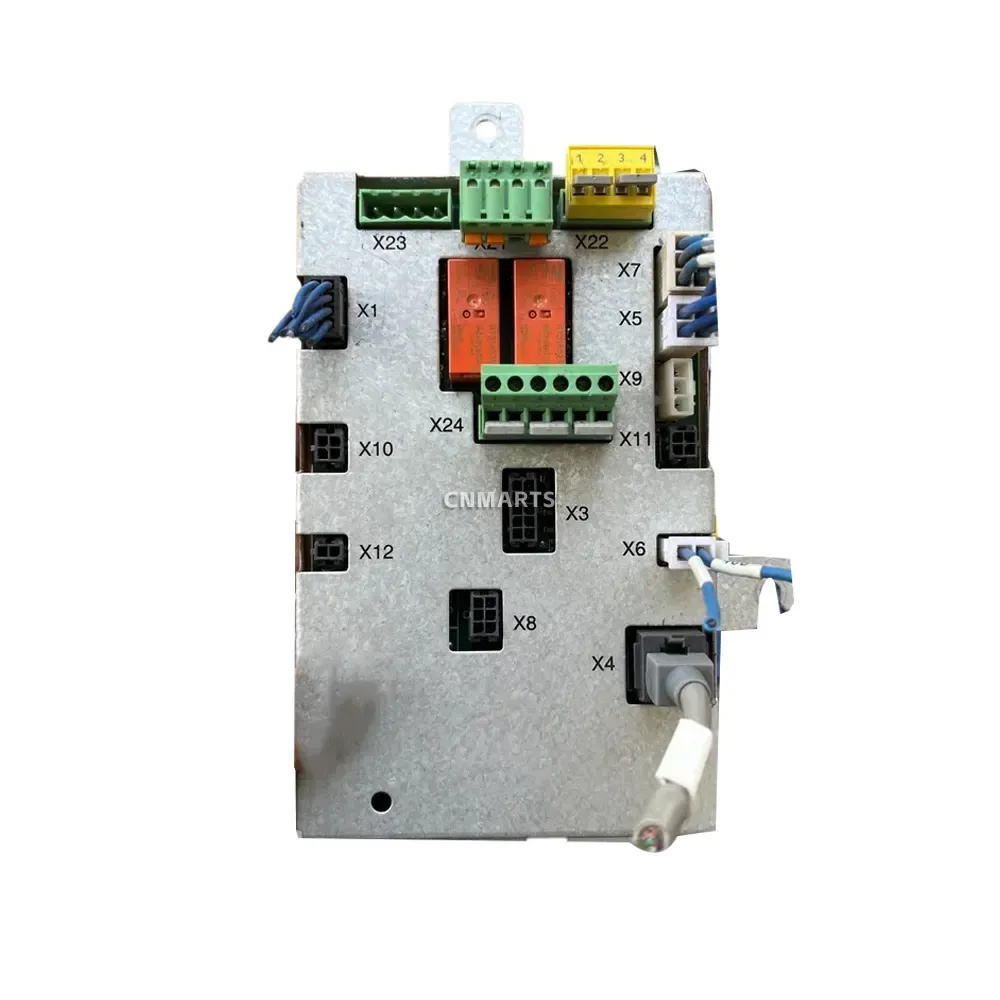

The DNQ5611 JHAC13385-2 is a highly reliable industrial electronic control board assembly designed for complex automation and machinery control systems. Mounted securely on a robust metal backplate, this module features a comprehensive array of connection interfaces, including green screw terminal blocks (X23, X24, X9), yellow terminal blocks (X22), and numerous black multi-pin connectors (X1, X3, X4, X5, X6, X7, X8, X10, X11, X12) for versatile system integration. It comes equipped with durable orange power relays and pre-installed wiring harnesses to facilitate efficient power distribution and signal routing. The high-quality green PCB ensures stable electronic performance and includes a barcode identification label (1007-502-11 / 07A 09822#3965822) for easy inventory management, maintenance, and system tracking.
Technical Specifications:
- Model & Part Numbers: DNQ5611, JHAC13385-2, 1007-502-11, 07A 09822#3965822

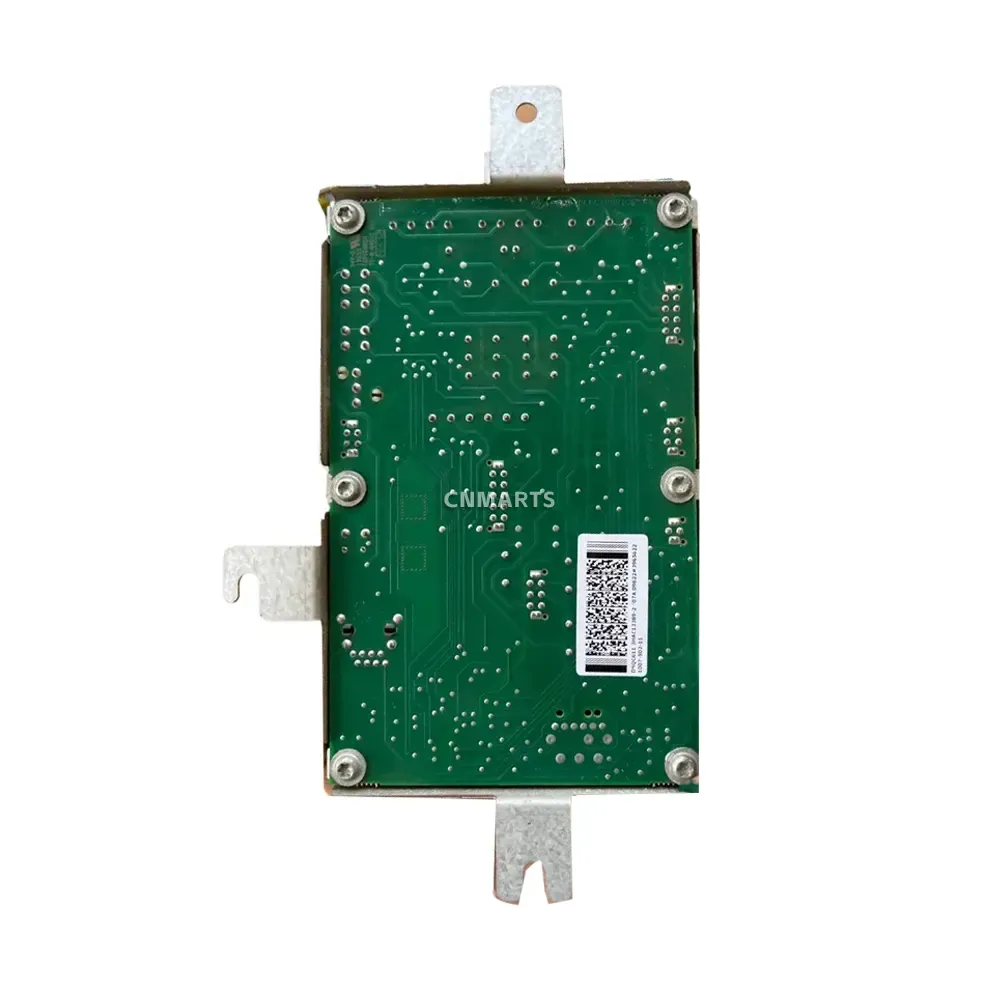

- Mounting Design: Pre-assembled on a heavy-duty protective metal backplate
- Screw Terminal Interfaces: Green blocks (X23, X24, X9) and Yellow blocks (X22)
- Multi-Pin Connectors: Black headers (X1, X3, X4, X5, X6, X7, X8, X10, X11, X12)
- Integrated Components: Orange power relays and factory pre-installed wiring harnesses
| Model | DNQ5611 JHAC13385-2 |
|---|
Only logged in customers who have purchased this product may leave a review.
Shipping policy
If you are buying multiple items, please contact us before checking out so we can get you the best combined rate for shipping.
Our default shipping rate is $100, which is enough to cover the cost of most shipments, but it is not our expected shipping rate. Due to the varying weights and sizes of products and customer locations, please contact us with your location and the products you are interested in to get the best current shipping rates.
ENERAL DELIVERY INFORMATION
Orders will be processed and shipping during standard working hours (0830 – 1700 GMT+8) Monday to Friday (excluding Bank Holidays)
On rare occasions, your order may be handled and/or processed on a Saturday. However, we are unable to ship items on weekends, therefore any orders dealt with on the weekend will be send out the next following working day.
The cut-off point for orders to be shipped the same day is 14:00 – please contact us to confirm stock levels before placing your order
Any orders placed after the cut-off will ship the next working day assuming all parts are in stock and ready for dispatch.
All orders:
- must be paid for in full before any goods are dispatched
- require a signature upon delivery. Please ensure delivery can be made to an address where someone will be available to sign for the delivery
- are packaged with great care, ensuring your order and the contents it contains, makes it safely through the delivery network
DNQ5611 JHAC13385-2 Industrial Control Board Assembly
Optimize your industrial automation systems with the DNQ5611 JHAC13385-2 Control Board Assembly. This OEM-grade electronic module features comprehensive multi-pin and screw terminal connectivity, integrated power relays, and a heavy-duty metal backplate for durable and reliable machinery control.
