DOTA 9300 / 9852 I/O Base Assembly with Fuse Terminal Blocks
Optimize your industrial control system with the DOTA 9300 I/O Base Assembly and 9852 Fuse Terminal Blocks. Featuring 10A/125V Type FF fuse protection, secure screw terminals, and DIP switch configuration, this Rev. B board ensures reliable, high-performance power and signal management for automation applications.
Payment Methods:
-
Online Support 24/7
-
12 Months Warranty for New Products
-
30 Days Money Back Guarantee
DOTA 9300 / 9852 I/O Base Assembly with Fuse Terminal Blocks

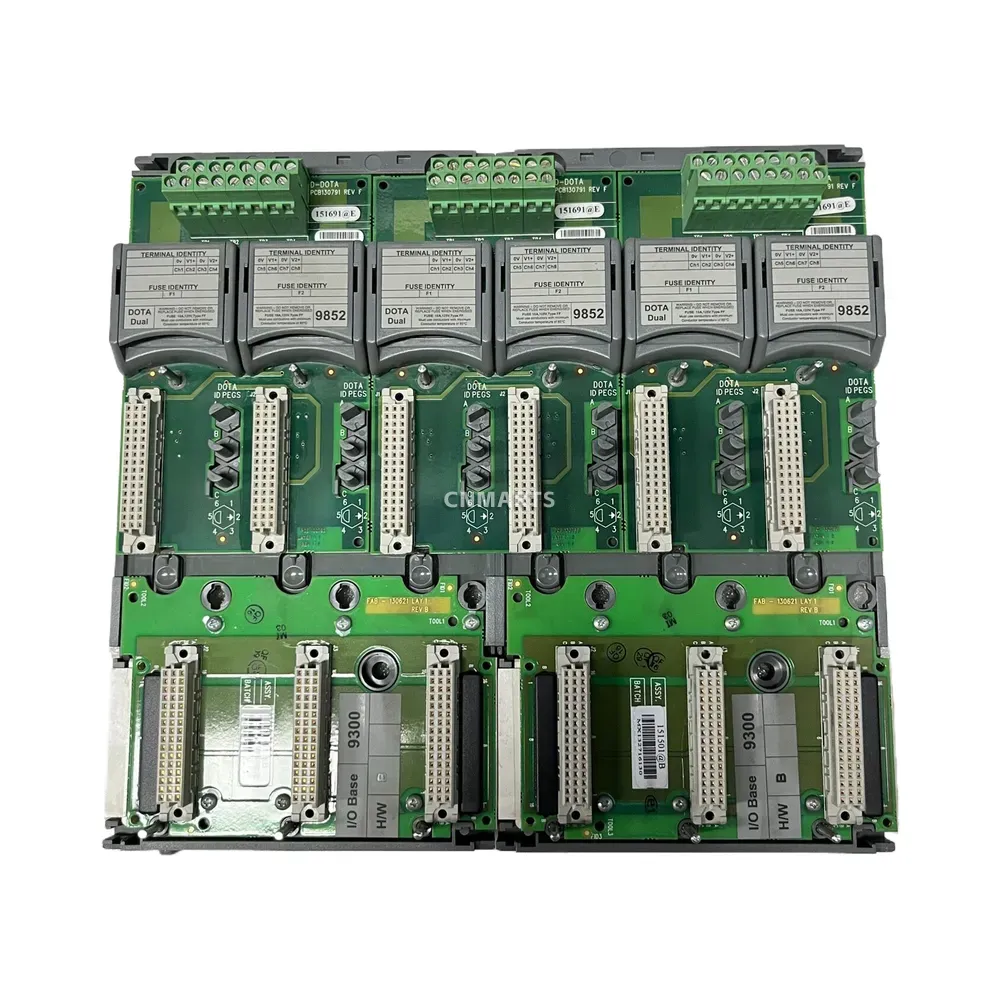

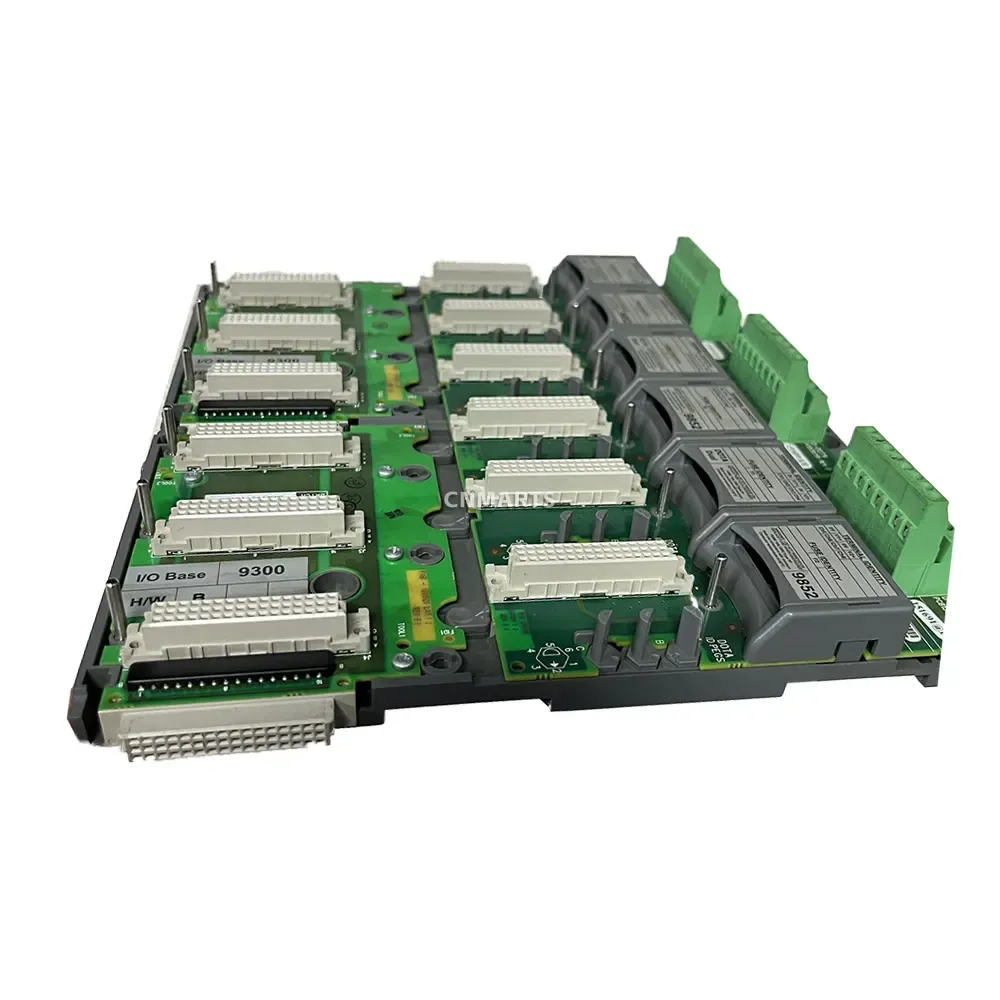

The DOTA 9300 / 9852 I/O Base Assembly is a highly reliable industrial input/output base board engineered for robust automation and control systems. This assembly features the Model 9300 base board paired with Model 9852 grey fuse terminal modules to deliver exceptional circuit protection and signal routing. It is equipped with green screw terminal blocks for secure power and signal connections, alongside white IDC ribbon cable connectors for seamless internal interfacing. Configuration is streamlined via integrated DIP switches (DOTA ID PECS). Built to rigorous industrial standards (Hardware Revision B) and manufactured in Mexico, this assembly ensures safe operation with 10A, 125V Type FF fuses and is designed to support high-temperature conductors up to 85°C.
Technical Specifications:
- Models: 9300 (I/O Base Assembly) & 9852 (Fuse Terminal Modules)
- Fuse Specifications: 10A, 125V, Type FF (Warning: Do not remove or replace when energized)

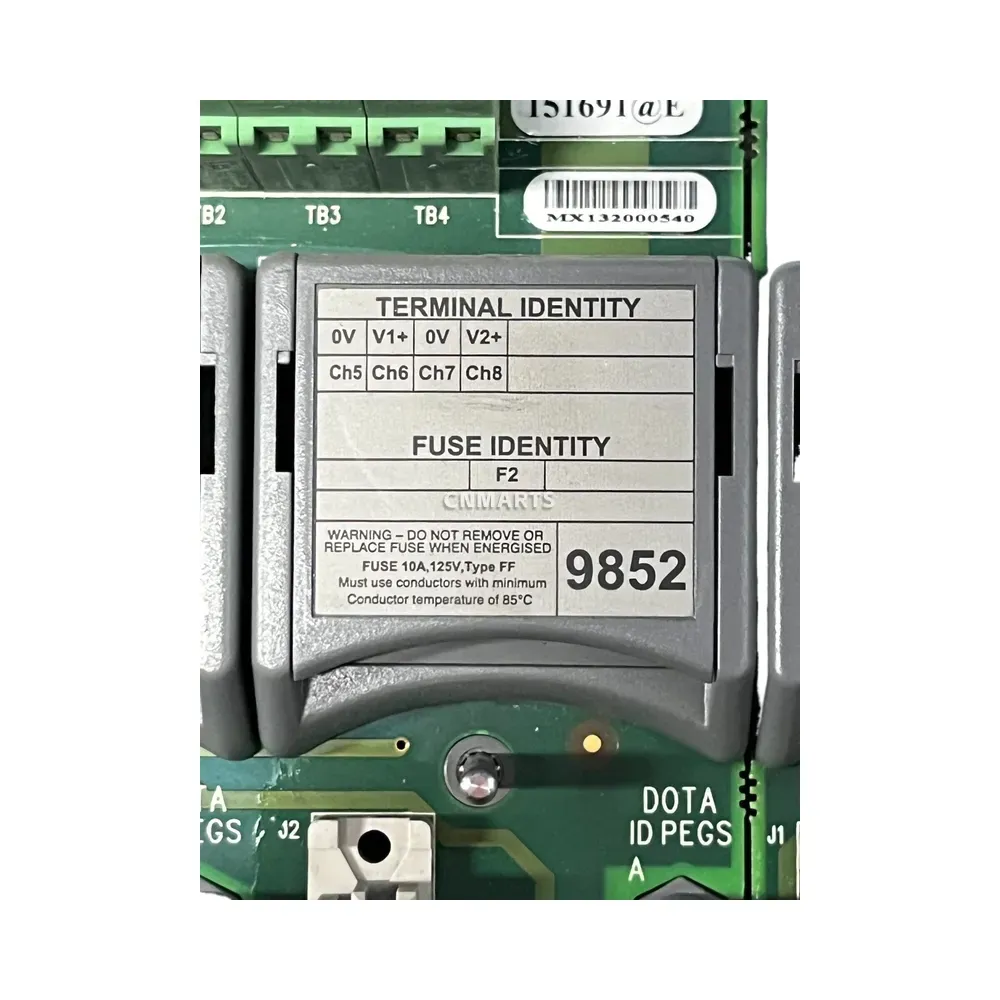

- Connectivity & Terminals: Green screw terminal blocks (0V, V1+, 0V, V2+, Ch5, Ch6, Ch7, Ch8) and white IDC ribbon cable connectors
- Operating Requirements: Must use conductors with a minimum temperature rating of 85°C; Hardware Revision B
| Brand | DOTA |
|---|---|
| Model | 9300 / 9852 |
