EUCHNER CET3-AR-CRA-CH-50X-SH-110104 Safety Switch Multicode
Enhance workplace safety with the EUCHNER CET3-AR-CRA-CH-50X-SH-110104 (ID: 110104) Multicode Safety Switch. This IP65-rated, 24VDC transponder-coded switch offers reliable machine guarding, multi-LED diagnostics, and EN 60947-5-3 compliance for seamless integration into your industrial automation systems.
Payment Methods:
-
Online Support 24/7
-
12 Months Warranty for New Products
-
30 Days Money Back Guarantee

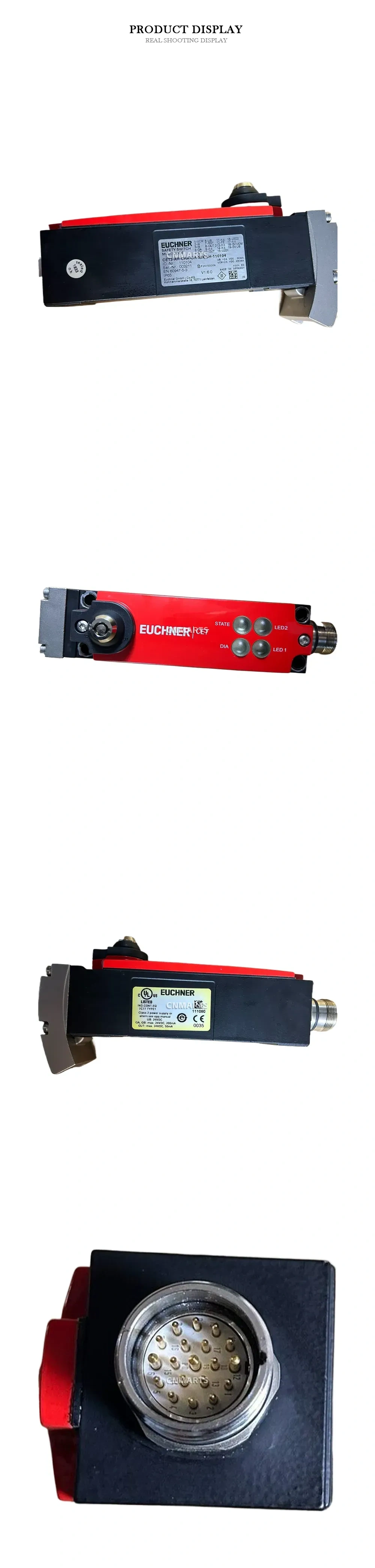

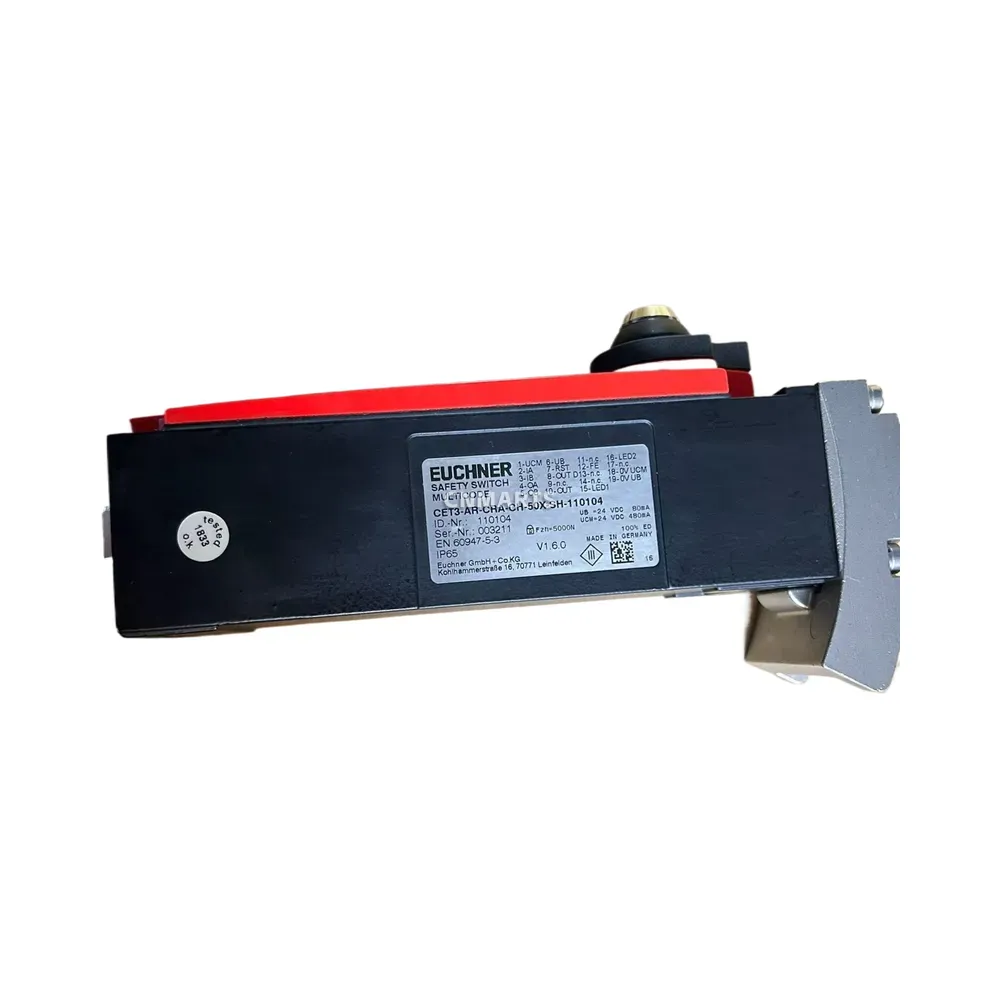

EUCHNER CET3-AR-CRA-CH-50X-SH-110104 Safety Switch Multicode
The EUCHNER CET3-AR-CRA-CH-50X-SH-110104 (ID: 110104) is a highly reliable industrial safety switch featuring an advanced multicode system for robust machine guarding and access control. Manufactured in Germany, this transponder-coded safety switch complies with stringent EN 60947-5-3 standards to deliver maximum protection in industrial automation environments. It is equipped with a multi-pin circular connector interface for streamlined wiring and features four integrated LED indicators (State, Dia, LED1, and LED2) for instant visual diagnostics. Encased in a durable housing with an IP65 protection rating, it is engineered to withstand harsh industrial conditions. The device operates on a standard 24 VDC power supply and is a cULus listed Class 2 component, ensuring safe, efficient, and compliant integration into modern safety control systems.
Technical Specifications:
- Brand: EUCHNER
- Model: CET3-AR-CRA-CH-50X-SH-110104
- ID Number: 110104
- Product Type: Transponder-coded Safety Switch (Multicode System)
- Operating Voltage (UB): 24 VDC
- Safety Outputs (OA, OB): Max. 24 VDC, 200mA
- Monitoring Outputs (OUT): Max. 24 VDC, 50mA
- Operating Current (UCB): 24 VDC, 400mA
- Degree of Protection: IP65
- Duty Cycle: 100% ED

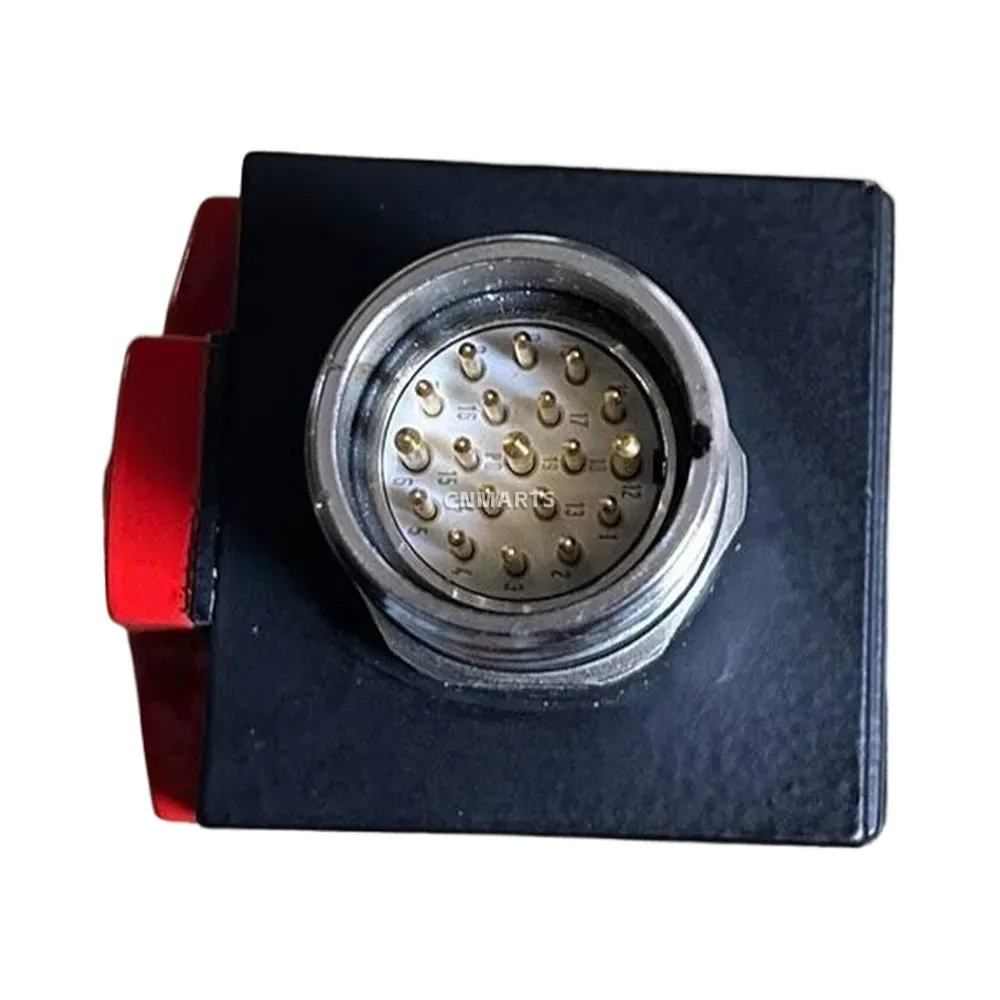

- Connection Interface: Multi-pin circular connector

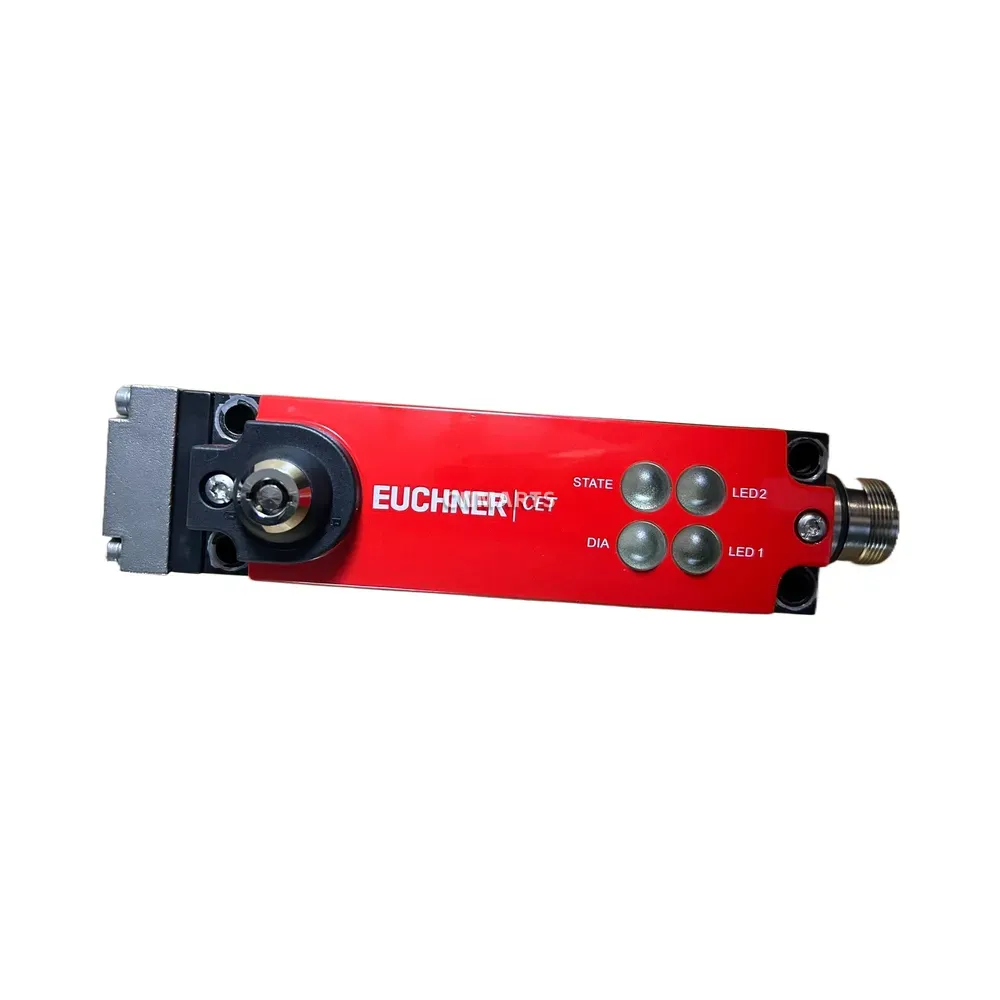

- Diagnostics: Integrated LEDs (State, Dia, LED1, LED2)

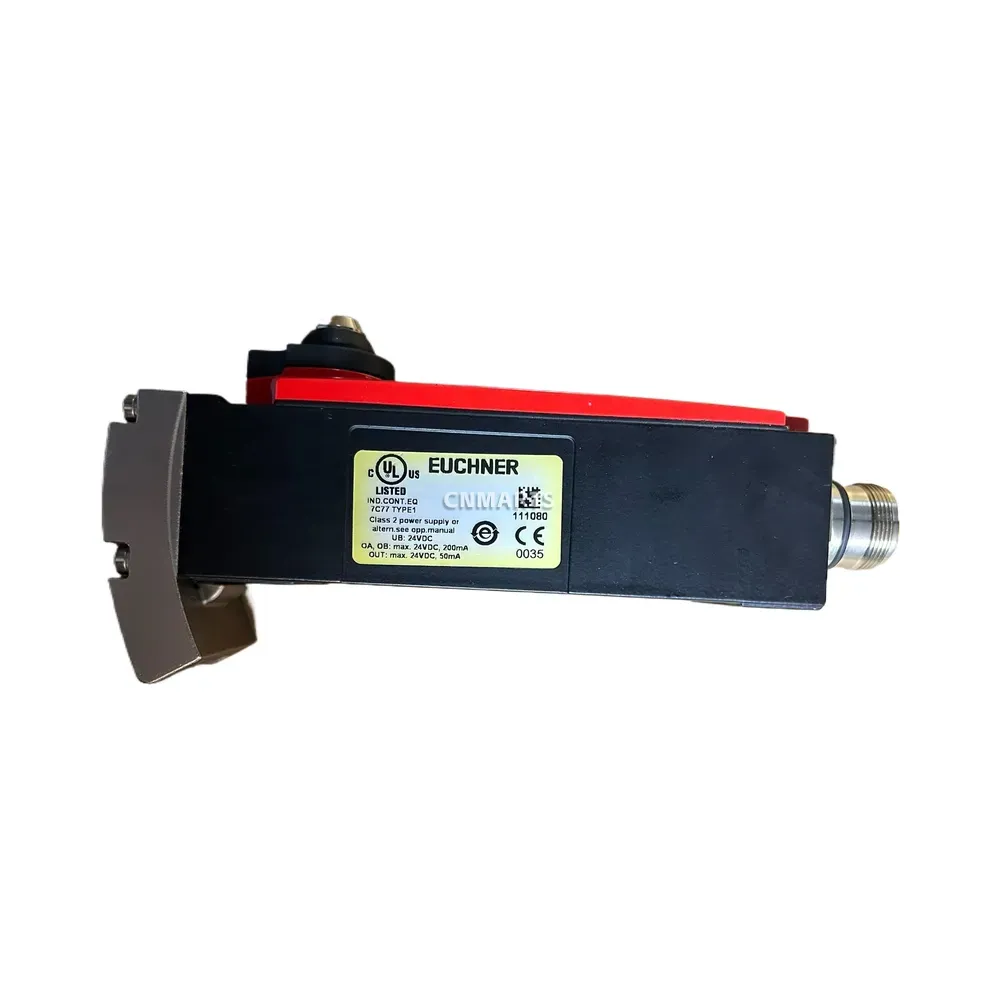

- Standards & Approvals: EN 60947-5-3, CE (0035), cULus Listed (Class 2 / IND.CONT.EQ)
- Country of Origin: Made in Germany
| Brand | Euchner |
|---|---|
| Model | CET3-AR-CRA-CH-50X-SH-110104 |
