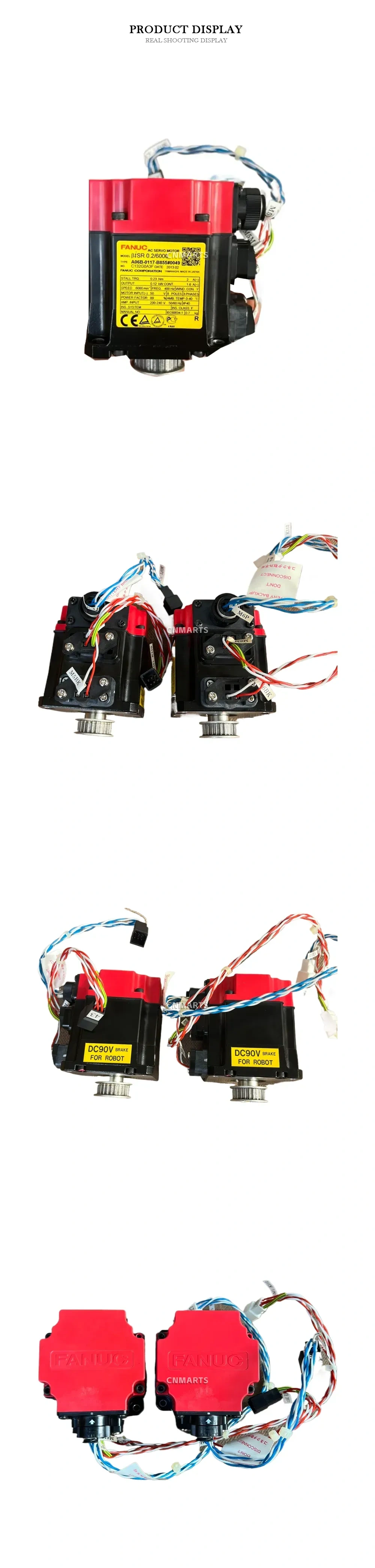

FANUC βiSR 0.2/6000 AC Servo Motor
The FANUC βiSR 0.2/6000 (Type A06B-0117-B855#0049) is a highly reliable and compact AC servo motor specifically engineered for robotic applications. Manufactured in Japan, this high-performance motor delivers a continuous output of 0.12 kW and a stall torque of 0.23 Nm, reaching maximum speeds of up to 6000 min⁻¹. It operates on a 50V (rms) 3-phase input and features a built-in DC90V brake for precise motion control, safety, and holding capabilities. Designed with an Insulation Class F rating (IEC60034-1) and a lightweight 0.7 kg profile, it ensures optimal efficiency, heat resistance, and durability in demanding industrial automation environments.
Technical Specifications:
- Brand: FANUC
- Model: βiSR 0.2/6000
- Type / Part Number: A06B-0117-B855#0049
- Application: Robot
- Stall Torque: 0.23 Nm
- Continuous Output: 0.12 kW
- Maximum Speed: 6000 min⁻¹
- Motor Input: 50 V (rms) 3 Phases
- Frequency: 400 Hz
- Brake Specification: DC90V Brake
- Insulation Class: Class F (IEC60034-1)
- Ambient Temperature: 0-40 °C
- Weight: 0.7 kg
| Brand | Fanuc |
|---|---|
| Model | βiSR 0.2/6000 |
