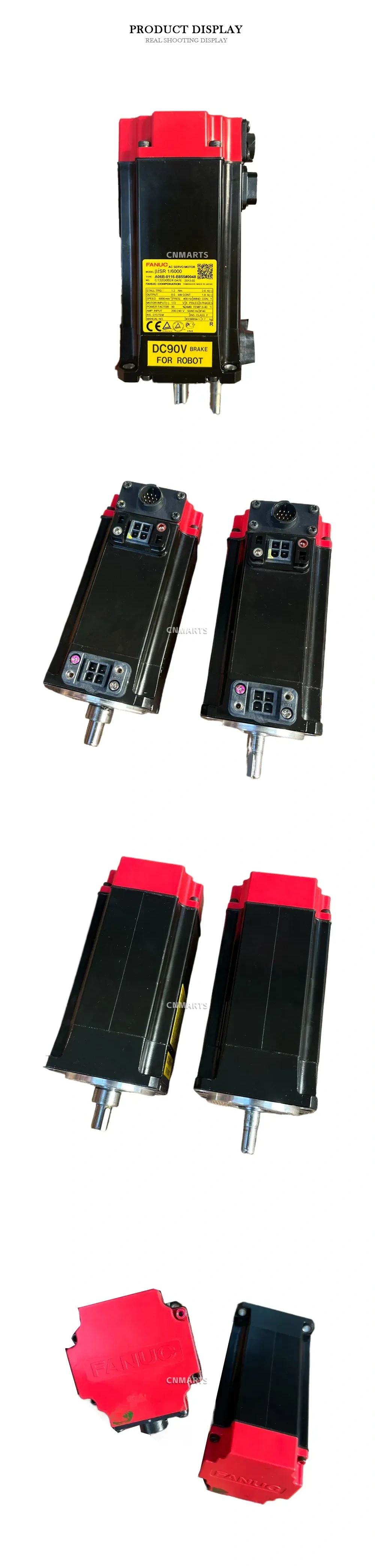

FANUC βiSR 1/6000 AC Servo Motor
The FANUC βiSR 1/6000 (Type: A06B-0116-B855#0048) is a high-performance AC servo motor specifically engineered for advanced industrial robot applications. Manufactured in Japan by FANUC Corporation, this robust motor is equipped with an integrated DC90V brake system to ensure precise positioning and secure holding during robotic operations. It delivers a continuous power output of 0.5 kW and a stall torque of 1.2 Nm, while achieving impressive speeds up to 6000 min⁻¹. Built for reliability in demanding environments, it features an IP40 protection rating, Class F insulation, and operates efficiently within an ambient temperature range of 0 to 40 °C.
Technical Specifications:
- Brand: FANUC
- Model: βiSR 1/6000
- Part/Type Number: A06B-0116-B855#0048
- Continuous Output: 0.5 kW (1.8 A)
- Stall Torque: 1.2 Nm (2.6 A)
- Maximum Speed: 6000 min⁻¹
- Motor Input: 172 V, 3 Phases, 8 Poles, 400 Hz
- Amplifier Input: 200-240 V, 50/60 Hz
- Brake System: DC90V (Designed for Robot applications)
- Protection Rating: IP40
- Insulation Class: Class F
- Weight: 1.7 kg
| Brand | Fanuc |
|---|---|
| Model | βiSR 1/6000 |
