Finder 72.01.8.240.5002 Level Monitoring Relay
The Finder 72.01.8.240.5002 is a highly reliable, modular level monitoring relay designed for the precise control of conductive liquid levels. Engineered for standard DIN rail mounting, this relay is ideal for managing filling and emptying operations in industrial, agricultural, and commercial fluid management applications. It features a wide, adjustable sensitivity range from 5 to 450 kΩ, allowing for versatile use with various types of conductive liquids. Equipped with a robust 8A 250V AC changeover contact and operating on a standard 230…240V AC supply voltage, it ensures seamless, secure, and efficient integration into your existing automated control panels.
Technical Specifications:
- Brand: Finder
- Model: 72.01.8.240.5002
- Device Type: Level Relay for Conductive Liquids
- Supply Voltage (Ue): 230…240 V AC (Terminals A1/A2)
- Output Contact Rating: 8 A, 250 V AC (Changeover contact: Terminals 11, 12, 14)
- Sensitivity Range: Adjustable 5…450 kΩ

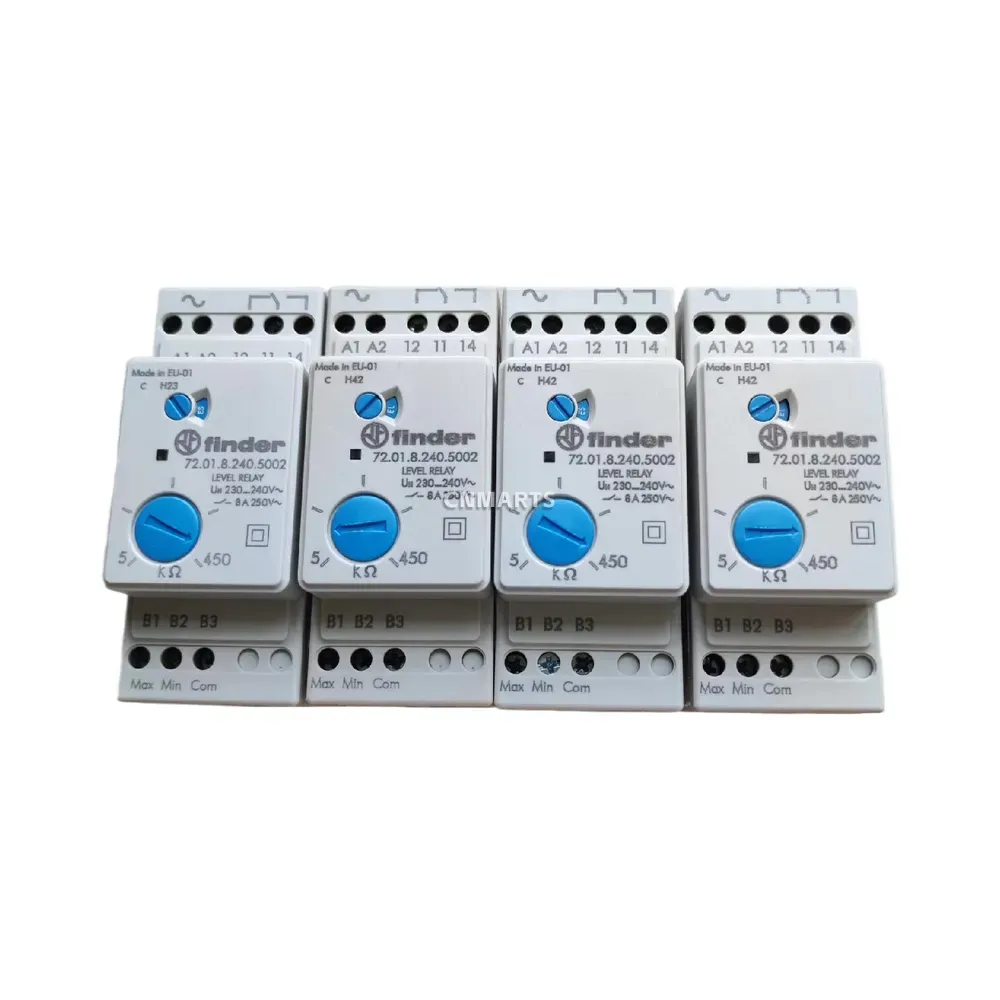

- Electrode Connections: B1 (Max level), B2 (Min level), B3 (Common)
- Mounting: Modular DIN rail mount
| Brand | Finder |
|---|---|
| Model | 72.01.8.240.5002 |
