GAVR-15A Generator AVR (Automatic Voltage Regulator)

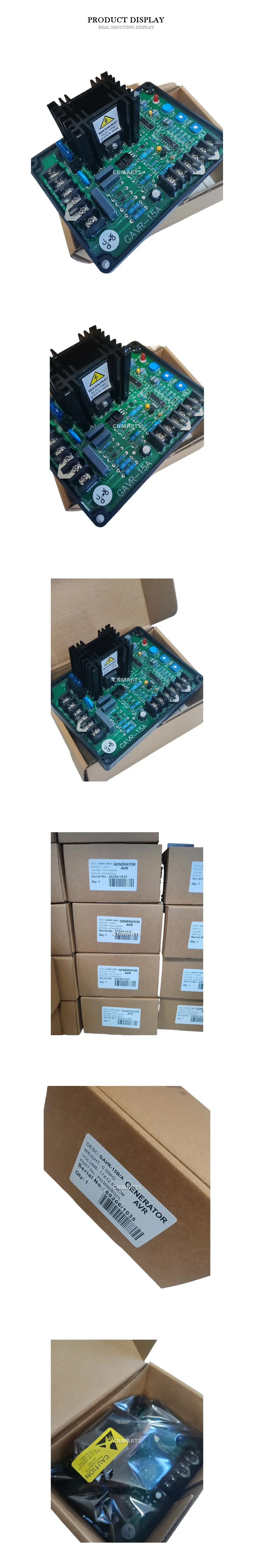

The GAVR-15A is a highly reliable, universal 15 Amp 1/2 Wave Dip Switch Programmable Automatic Voltage Regulator (AVR) designed specifically for brushless generator applications. Engineered for optimal thermal management and power dissipation, this module features a durable green PCB equipped with a large, heavy-duty aluminum heatsink. It ensures precise voltage control and system stability utilizing integrated blue potentiometers for Voltage (VOLT), Stability (STAB), and Under-Frequency (U/F) adjustments. Built with high-quality electronic components, the GAVR-15A provides exceptional performance, fast response times, and essential protection for your power generation system. It also includes secure screw terminal blocks for safe, straightforward input and output wiring.
Technical Specifications:
- Model: GAVR-15A
- Sensing Input Voltage: 220/400 VAC, 1 Phase 2 Wire
- Power Input Voltage: 180-240 VAC, 1 Phase 2 Wire
- Magnetic Field Output Voltage: Maximum 90 VDC at 240 VAC input
- Output Current: Continuous 6A, Intermittent 15A for 10 seconds
- Voltage Regulation Accuracy: < ±0.5% (with 4% engine governing)
- Voltage Build-up: Residual volts at AVR terminal > 5 VAC
- Adjustable Settings: Voltage (VOLT), Stability (STAB), and Under-Frequency (U/F) ratio
- Package Dimensions: 17 x 12.5 x 8 cm
- Weight: 0.55 KG
| Model | GAVR-15A |
|---|
Only logged in customers who have purchased this product may leave a review.
Shipping policy
If you are buying multiple items, please contact us before checking out so we can get you the best combined rate for shipping.
Our default shipping rate is $100, which is enough to cover the cost of most shipments, but it is not our expected shipping rate. Due to the varying weights and sizes of products and customer locations, please contact us with your location and the products you are interested in to get the best current shipping rates.
ENERAL DELIVERY INFORMATION
Orders will be processed and shipping during standard working hours (0830 – 1700 GMT+8) Monday to Friday (excluding Bank Holidays)
On rare occasions, your order may be handled and/or processed on a Saturday. However, we are unable to ship items on weekends, therefore any orders dealt with on the weekend will be send out the next following working day.
The cut-off point for orders to be shipped the same day is 14:00 – please contact us to confirm stock levels before placing your order
Any orders placed after the cut-off will ship the next working day assuming all parts are in stock and ready for dispatch.
All orders:
- must be paid for in full before any goods are dispatched
- require a signature upon delivery. Please ensure delivery can be made to an address where someone will be available to sign for the delivery
- are packaged with great care, ensuring your order and the contents it contains, makes it safely through the delivery network
GAVR-15A Generator AVR (Automatic Voltage Regulator)
Optimize your generator’s reliability with the universal GAVR-15A Automatic Voltage Regulator. This 15 Amp programmable AVR module delivers stable voltage output and features a heavy-duty aluminum heatsink, precise VOLT/STAB/U/F adjustments, and secure screw terminals. The perfect replacement part for brushless generator maintenance and repair.
