GE IC698PSA100E Power Supply Module
Shop the GE IC698PSA100E 100W Power Supply Module. Designed for PACSystems RX7i PLCs, it accepts 120/240VAC or 125VDC inputs and provides +5V, +12V, and -12V outputs. Rated for hazardous locations (Class I Div 2), this module ensures reliable performance for your industrial control systems.
Payment Methods:
-
Online Support 24/7
-
12 Months Warranty for New Products
-
30 Days Money Back Guarantee
GE IC698PSA100E Power Supply Module

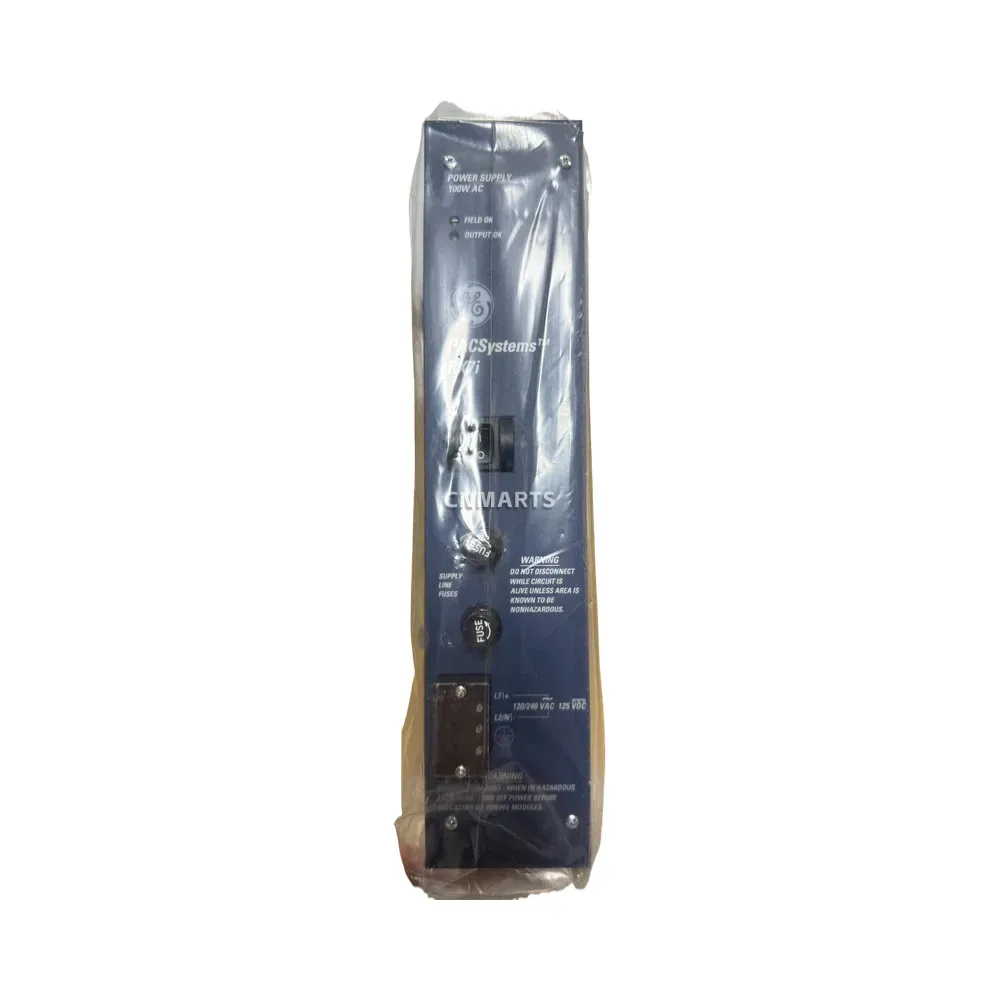

The GE IC698PSA100E is a highly reliable, 100-Watt power supply module designed for use in GE Fanuc / PACSystems RX7i programmable logic controller (PLC) systems. This versatile module supports a wide range of input voltages, including 120VAC, 240VAC, and 125VDC, making it adaptable for various industrial applications. It delivers stable output power across three rails: +5V at 20A, +12V at 2A, and -12V at 1A. Engineered for demanding environments, the IC698PSA100E is UL and CE certified, and approved for use in hazardous locations (Class I, Division 2, Groups A, B, C, D) with a T4 temperature code. Front panel LED indicators provide quick visual status for FIELD OK and OUTPUT OK, ensuring simplified troubleshooting and system monitoring.
Technical Specifications:
- Manufacturer: GE Intelligent Platforms / GE Fanuc
- Model Number: IC698PSA100E
- Total Output Power: 100 Watts
- Input Voltage: 120VAC at 1.3A / 240VAC at 0.7A (47-63Hz) / 125VDC at 1.2A
- Output Voltage / Current: +5V @ 20A, +12V @ 2A, -12V @ 1A
- Operating Temperature: 0°C to 60°C (Surrounding Air)
- Hazardous Location Rating: Class I, DIV.2, Groups A, B, C, D (Temp Code T4)
- Fuse Rating: 4A / 250V
- Wiring Requirements: 75°C Copper Conductors, Torque 12 in-lb (1.3 N-m)
- Certifications: UL US Listed, CE, Ex nA IIC T4 X, II 3 G
| Brand | GE |
|---|---|
| Model | IC698PSA100E |
