GF Signet 3-5700 pH/ORP Transmitter

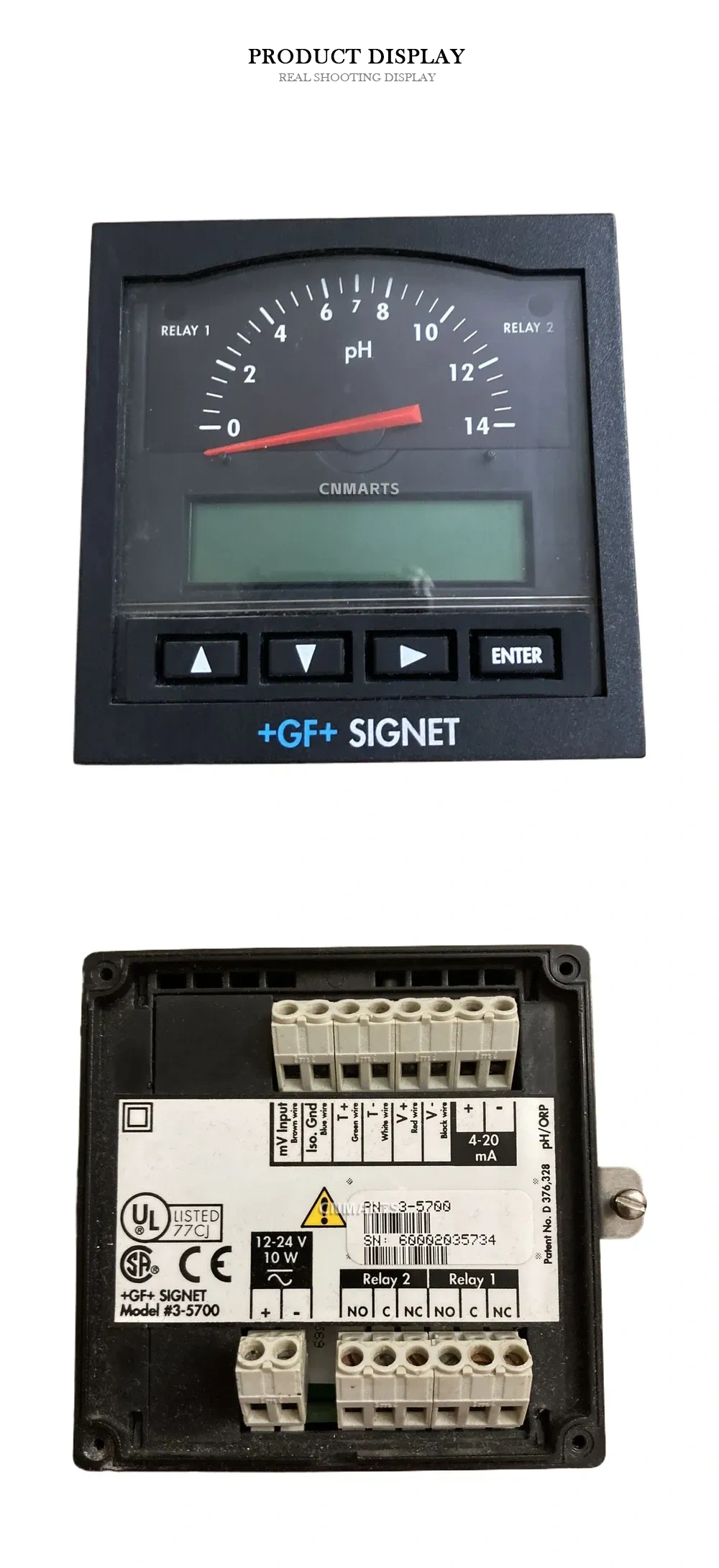

The GF Signet 3-5700 pH/ORP Transmitter is a highly reliable, panel-mounted instrument designed for precise water quality monitoring and process control. It uniquely combines an easy-to-read analog dial indicator (0-14 pH scale) with a clear LCD digital display, providing operators with both quick visual trends and exact measurements. Equipped with a simple four-key keypad, it allows for straightforward calibration and configuration. The unit features dual programmable relay outputs (NO/C/NC) for alarming or dosing control, alongside an isolated 4-20 mA analog output for seamless integration into PLCs and SCADA systems. Built for industrial environments, it operates on a versatile 12-24 V AC/DC power supply and carries UL, CSA, and CE certifications, making it an ideal choice for water treatment, chemical processing, and wastewater applications.
Technical Specifications:
- Brand / Model: GF Signet / 3-5700
- Power Supply: 12-24 V AC/DC, 10 W

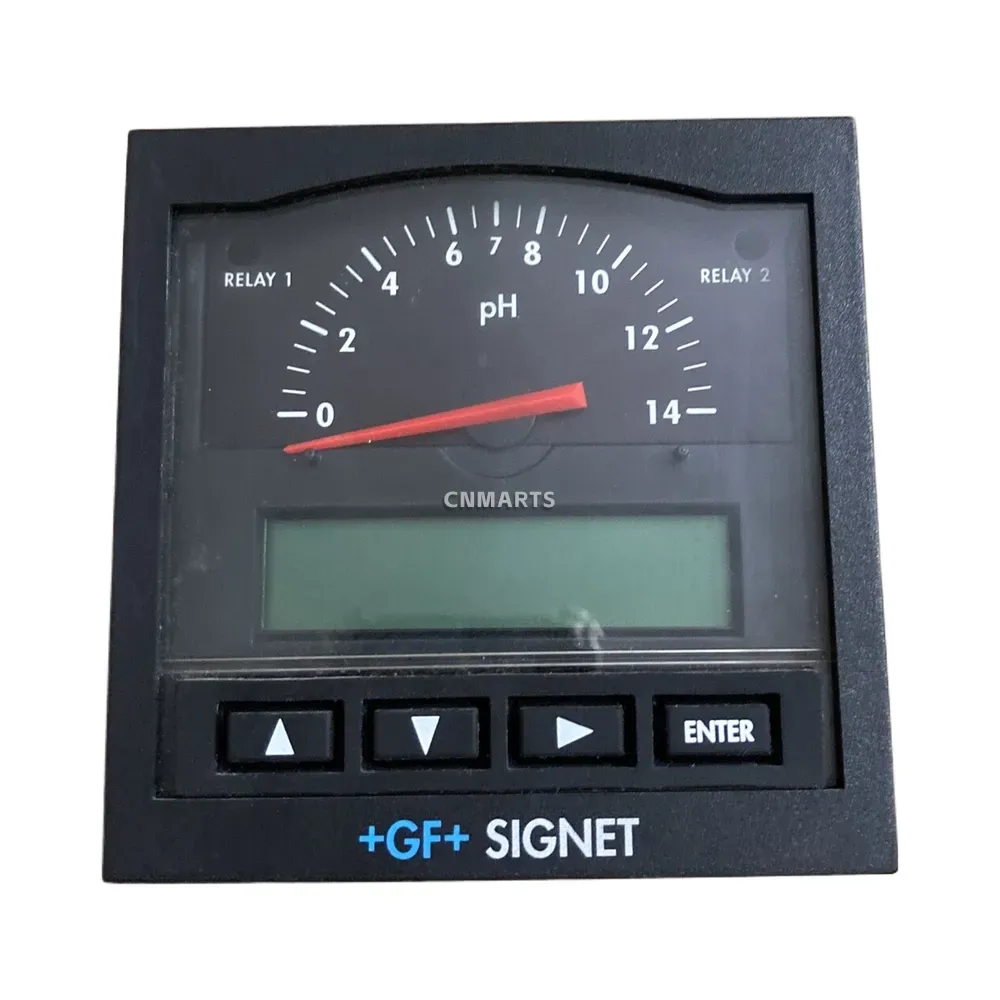

- Display Type: Dual display (Analog dial indicator for 0-14 pH scale & LCD digital display)
- User Interface: Four-key membrane keypad (Up, Down, Right, ENTER)
- Relay Outputs: Two relay outputs (Relay 1 and Relay 2) with NO/C/NC contacts
- Analog Output: 4-20 mA

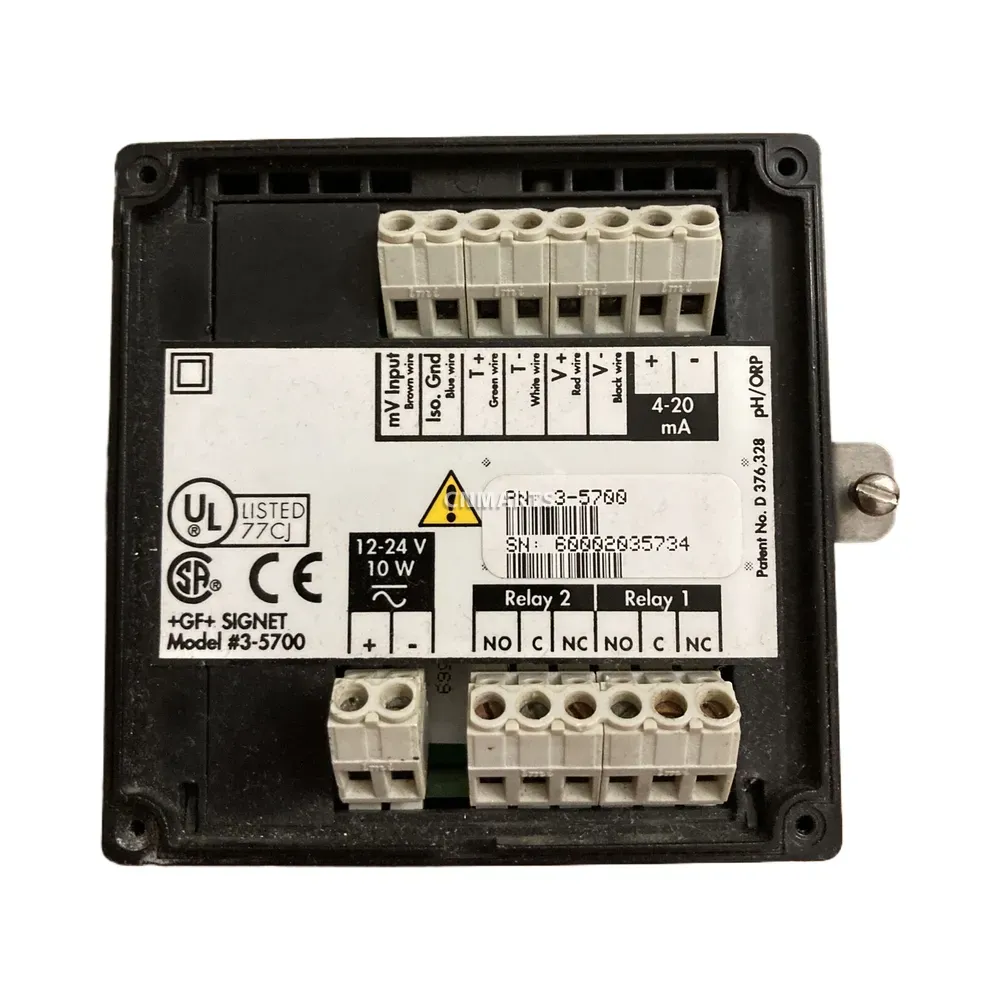

- Terminal Inputs: mV (Brown wire), Iso Gnd (Blue wire), T+ (Green wire), T- (White wire), V+ (Red wire), V- (Black wire)
- Mounting Style: Panel Mount
- Certifications: UL LISTED 77CJ, CSA, CE
| Brand | GF SIGNET |
|---|---|
| Model | 3-5700 |
