Hanyoung Nux DX9-PMWNR Temperature Controller
The Hanyoung Nux DX9-PMWNR is a highly reliable, panel-mounted PID temperature controller engineered for precision thermal management in industrial applications. Featuring a clear dual digital display, it allows operators to easily monitor both the Process Value (PV) and Set Value (SV) in real-time. This model is configured for a Pt100 Ω RTD input, offering a broad temperature measurement range from -199°C to 640°C. Equipped with a robust relay (RLY) main output and multiple alarm functions including ALH and ALL/LBA, it ensures optimal safety and process control. Operating on a universal 100-240 V a.c. power supply and carrying CE certification, the DX9-PMWNR is a versatile and dependable choice for automated manufacturing, heating, and cooling systems.
Technical Specifications:
- Brand: Hanyoung Nux
- Model: DX9-PMWNR

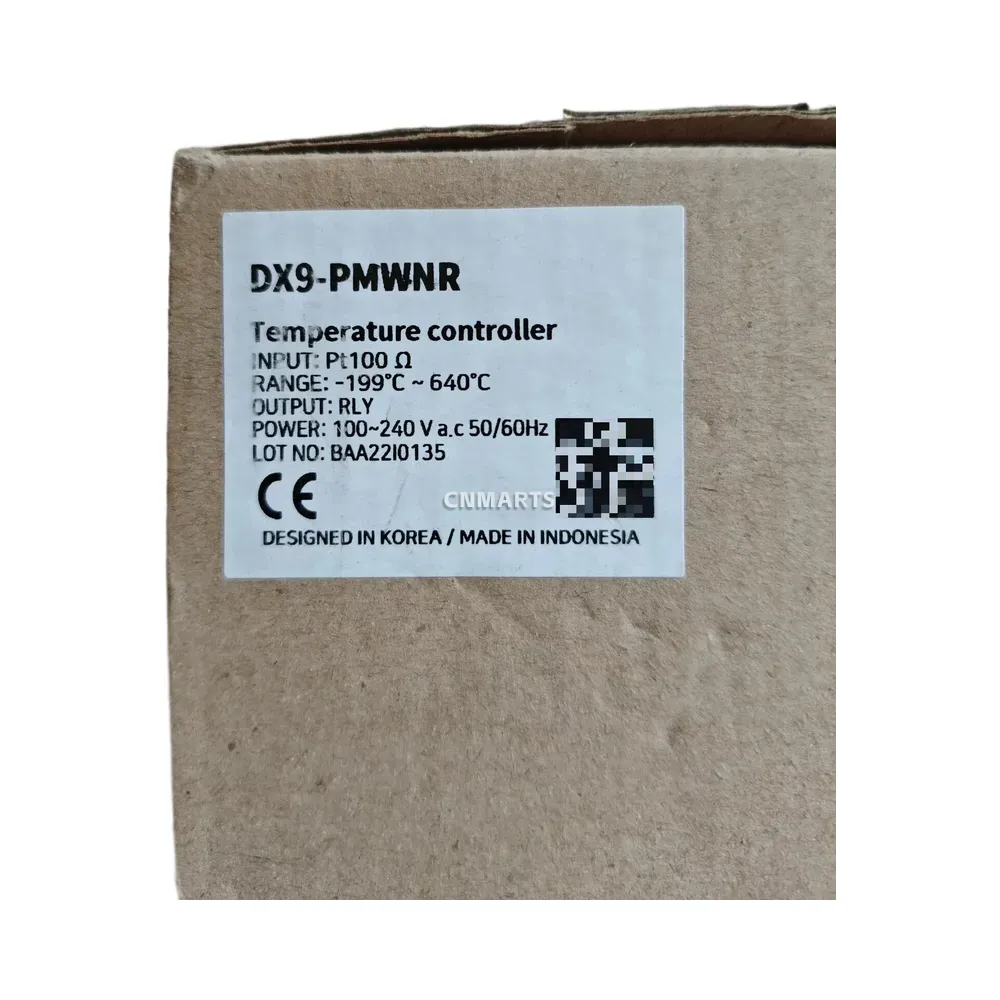

- Input Type: Pt100 Ω RTD
- Temperature Range: -199°C to 640°C
- Power Supply: 100 – 240 V a.c., 50/60 Hz, 12 VA
- Main Output (Relay): Contact Out: 5 A N.O. / 3 A N.C. 250 V a.c. Resistive

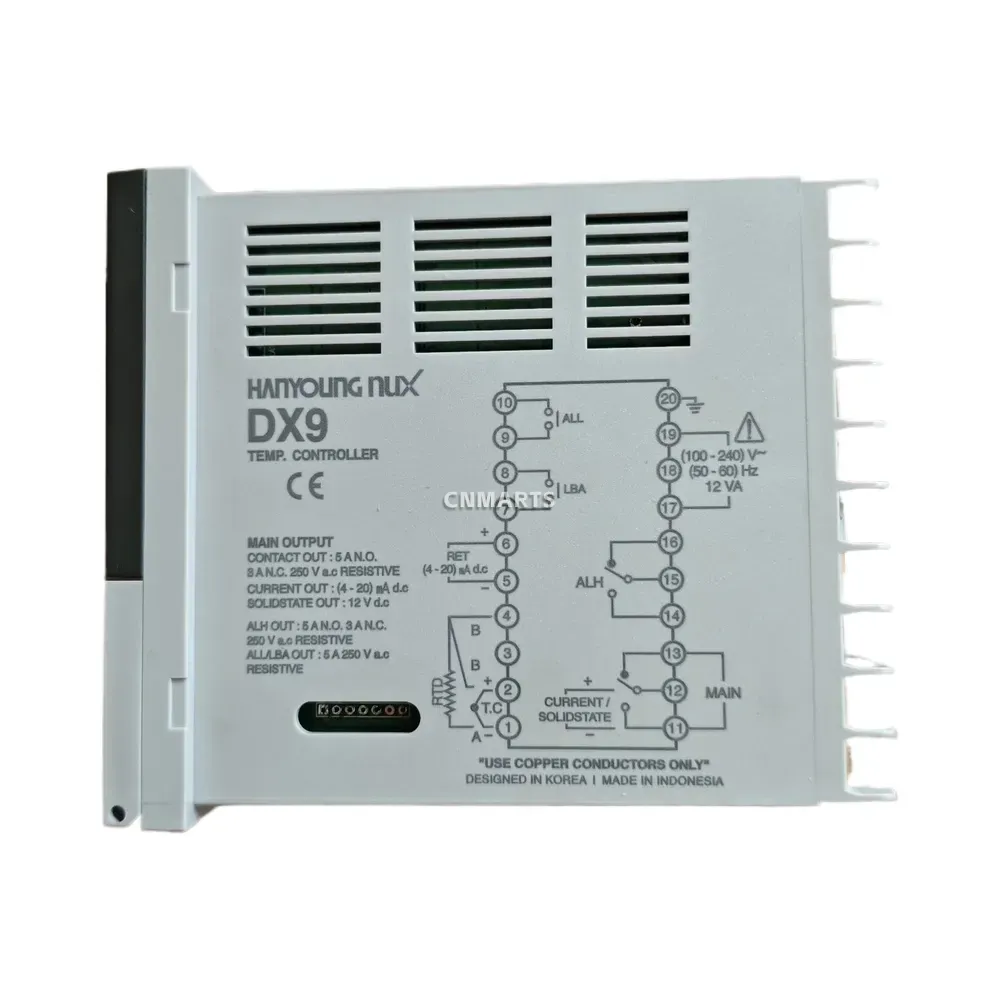

- Alarm Outputs: ALH Out: 5 A N.O. / 3 A N.C. 250 V a.c. Resistive; ALL/LBA Out: 5 A 250 V a.c. Resistive

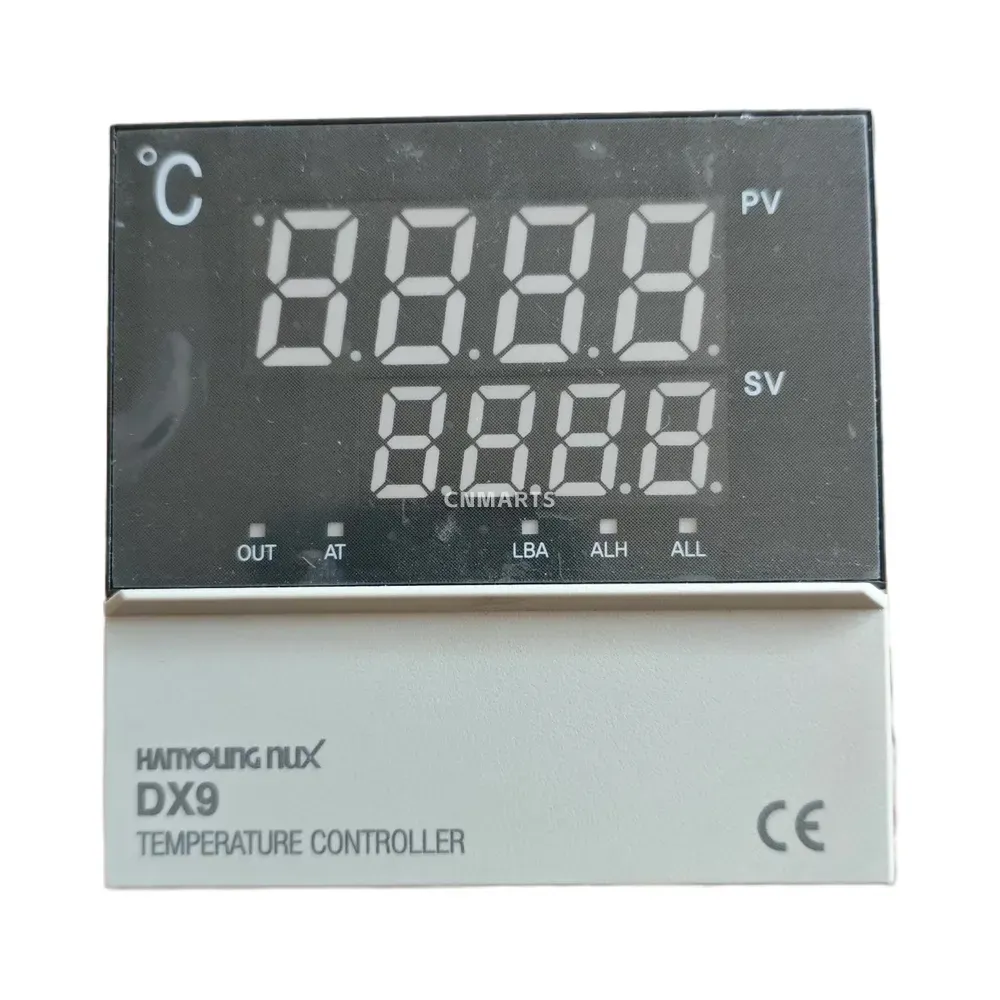

- Display: Dual digital display (PV/SV) in °C with OUT, AT, LBA, ALH, and ALL status indicators

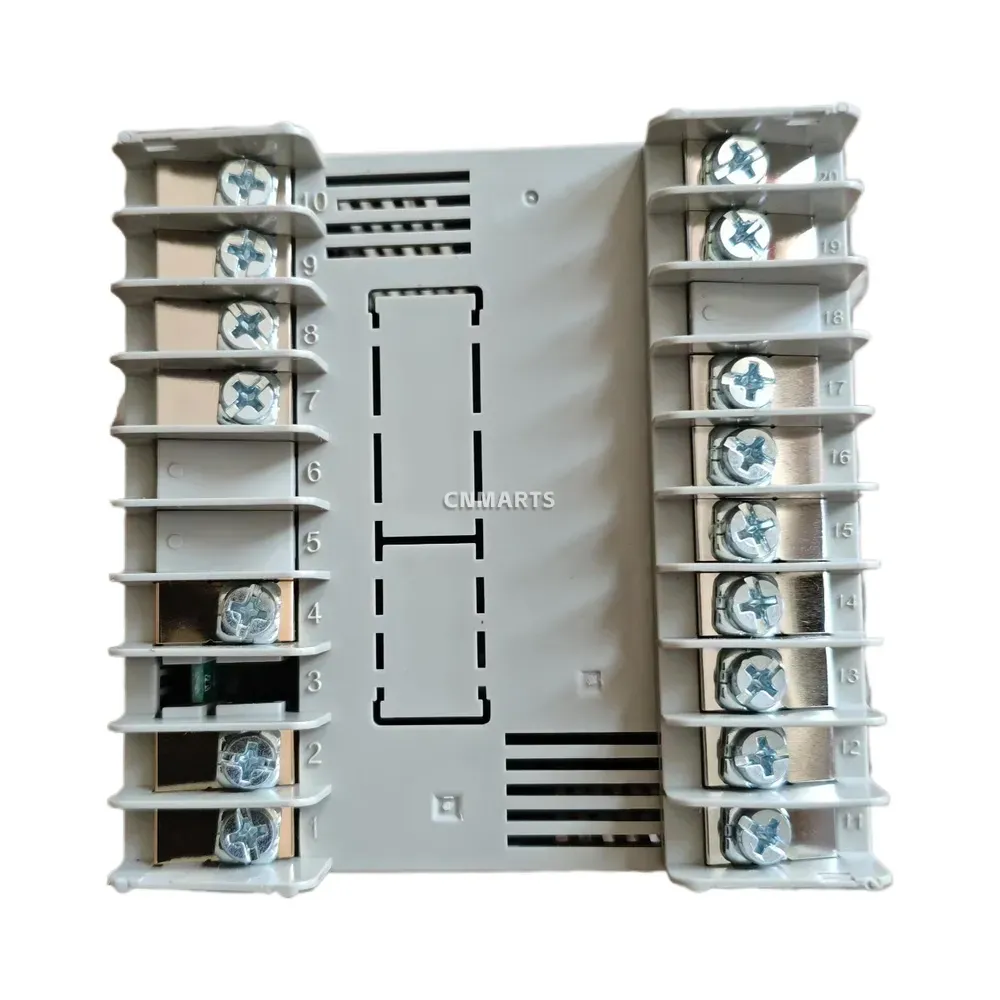

- Terminals: Screw terminal connections (Terminals 1-20, use copper conductors only)
- Certifications: CE Marked
| Brand | Hanyoung Nux |
|---|---|
| Model | DX9-PMWNR |
Only logged in customers who have purchased this product may leave a review.
Shipping policy
If you are buying multiple items, please contact us before checking out so we can get you the best combined rate for shipping.
Our default shipping rate is $100, which is enough to cover the cost of most shipments, but it is not our expected shipping rate. Due to the varying weights and sizes of products and customer locations, please contact us with your location and the products you are interested in to get the best current shipping rates.
ENERAL DELIVERY INFORMATION
Orders will be processed and shipping during standard working hours (0830 – 1700 GMT+8) Monday to Friday (excluding Bank Holidays)
On rare occasions, your order may be handled and/or processed on a Saturday. However, we are unable to ship items on weekends, therefore any orders dealt with on the weekend will be send out the next following working day.
The cut-off point for orders to be shipped the same day is 14:00 – please contact us to confirm stock levels before placing your order
Any orders placed after the cut-off will ship the next working day assuming all parts are in stock and ready for dispatch.
All orders:
- must be paid for in full before any goods are dispatched
- require a signature upon delivery. Please ensure delivery can be made to an address where someone will be available to sign for the delivery
- are packaged with great care, ensuring your order and the contents it contains, makes it safely through the delivery network
Hanyoung Nux DX9-PMWNR Temperature Controller
Upgrade your industrial process control with the Hanyoung Nux DX9-PMWNR PID Temperature Controller. Featuring a Pt100 RTD input, a wide -199°C to 640°C range, relay output, and a dual digital display. CE certified and compatible with 100-240V AC, this panel-mount controller delivers precise, reliable thermal management for your automation needs.
