HAWE DG5E-100 Electronic Pressure Switch

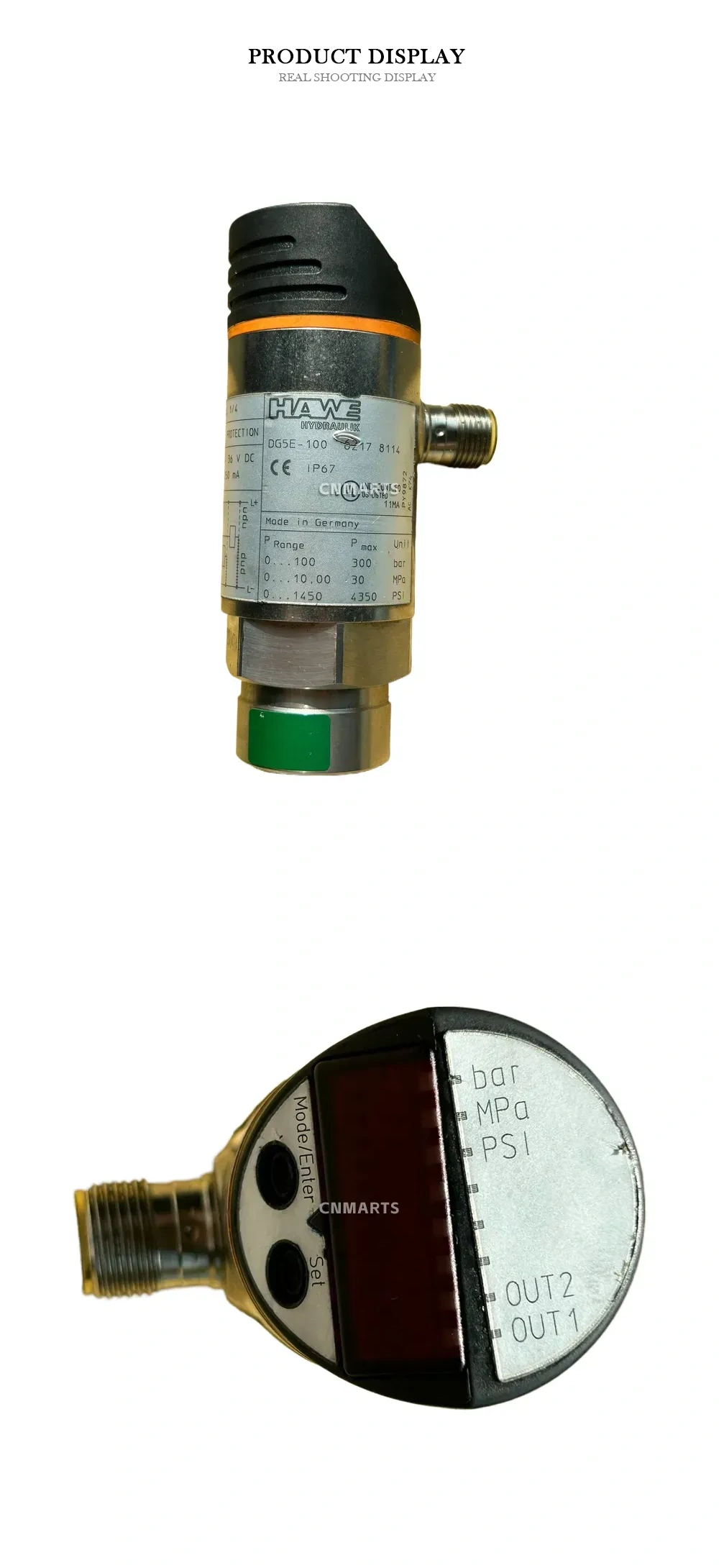

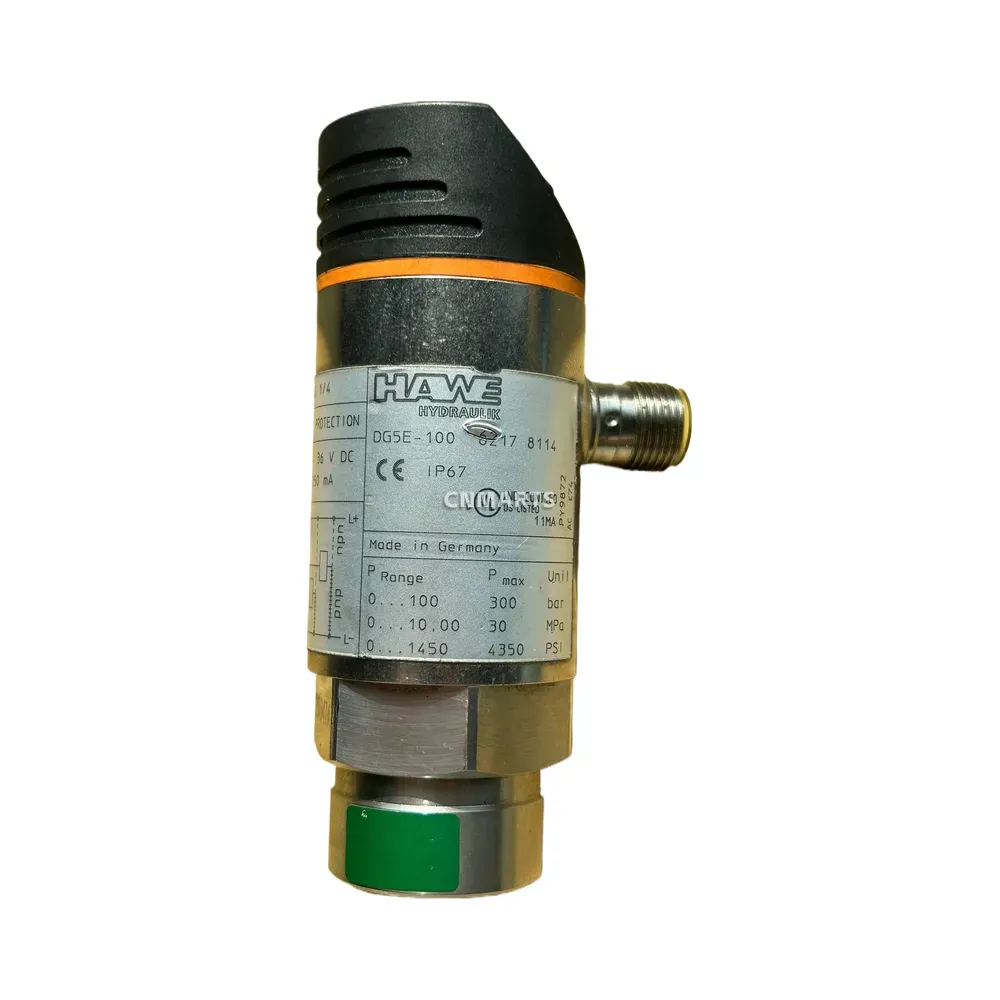

The HAWE DG5E-100 is a highly reliable electronic pressure switch engineered by HAWE HYDRAULIK for precise pressure monitoring and control in demanding hydraulic systems. Manufactured in Germany, this premium switch features a built-in digital display and intuitive configuration buttons (Mode/Enter, Set) for effortless field calibration and parameter adjustment. It offers exceptional versatility by supporting multiple pressure units (bar, MPa, and PSI) with a standard operating range of 0 to 100 bar and a robust maximum system pressure tolerance of up to 300 bar. Built to withstand harsh industrial environments, the DG5E-100 boasts an IP67 protection class, operates on a 24 V DC power supply, and carries both CE and UL certifications, ensuring optimal safety and global compliance.
Technical Specifications:
- Brand: HAWE HYDRAULIK
- Model: DG5E-100
- Operating Pressure Range: 0 – 100 bar / 0 – 10.00 MPa / 0 – 1450 PSI
- Maximum Pressure (P max): 300 bar / 30 MPa / 4350 PSI
- Supply Voltage: 24 V DC
- Current Consumption: 50 mA

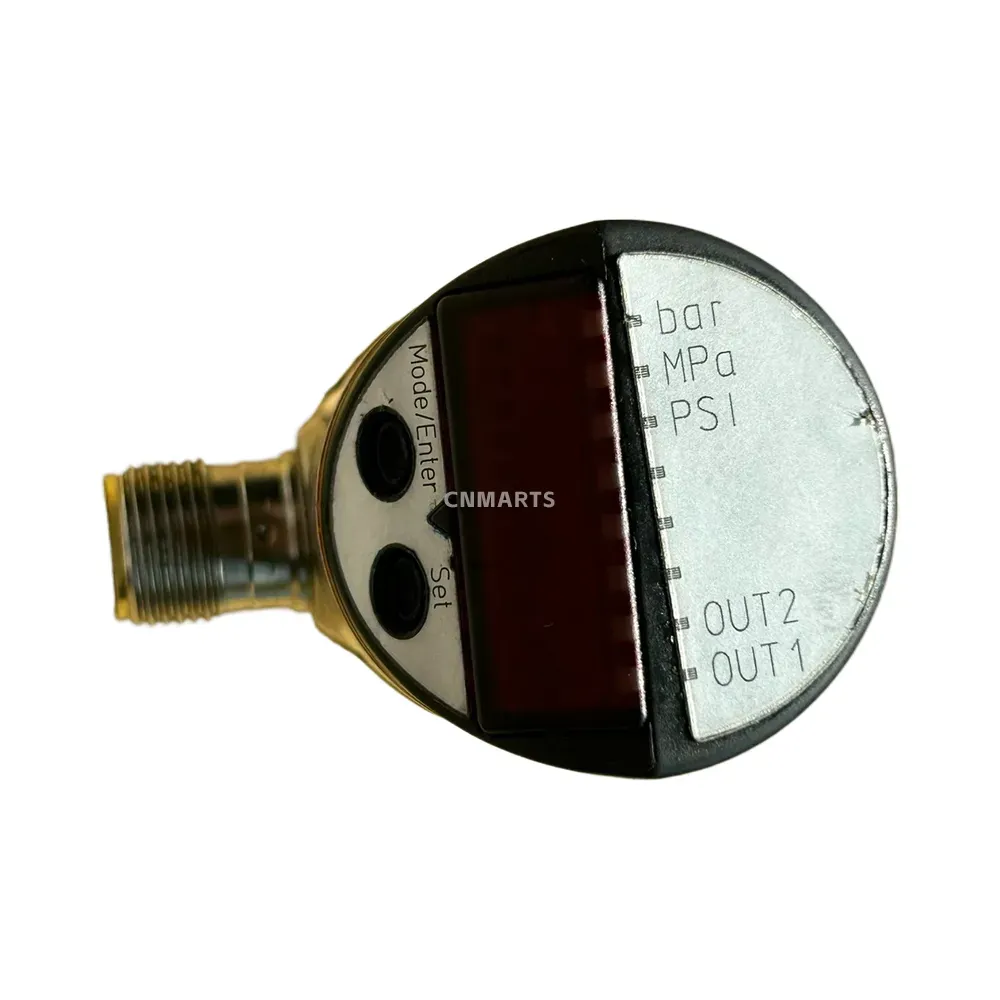

- Interface: Digital Display with Mode/Enter and Set buttons
- Protection Class: IP67
- Certifications: CE, UL Listed (IND. CONT. EQ)
- Country of Origin: Made in Germany
| Brand | HAWE |
|---|---|
| Model | DG5E-100 |
