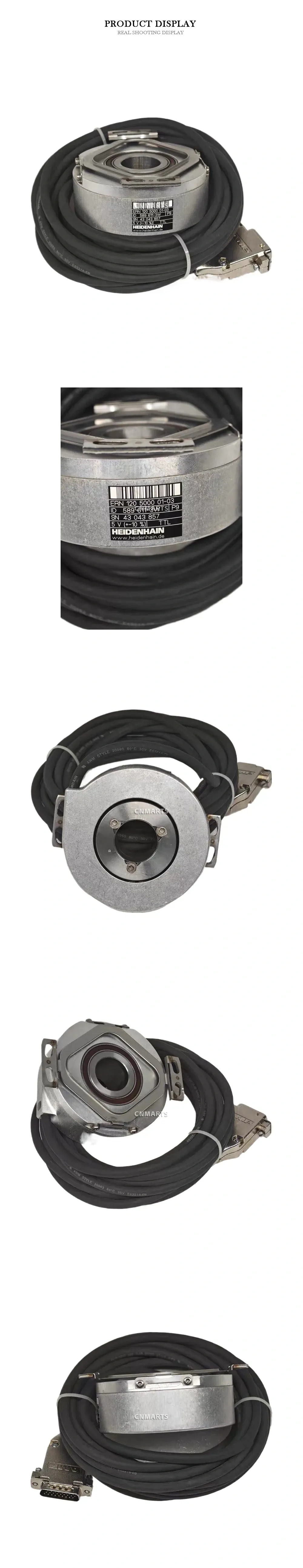

HEIDENHAIN ERN 120 5000 01-03 Incremental Rotary Encoder
The HEIDENHAIN ERN 120 5000 01-03 is a high-performance modular incremental rotary encoder engineered for precise position feedback and speed control in demanding industrial environments. Featuring a robust stator coupling design, this encoder minimizes mechanical play to deliver exceptional accuracy with a resolution of 5000 lines per revolution. It operates on a reliable 5V (±10%) power supply and transmits a clean, industry-standard TTL output signal, making it highly compatible with a wide range of CNC machinery, robotics, and automation control systems. The unit (ID: 589 611-3W) comes pre-equipped with an integrated cable terminating in a D-sub connector, ensuring a secure, plug-and-play installation process.
Technical Specifications:
- Brand: HEIDENHAIN
- Model: ERN 120 5000 01-03
- ID Number: 589 611-3W
- Encoder Type: Incremental Rotary Encoder
- Line Count / Resolution: 5000 lines per revolution
- Output Signal: TTL
- Supply Voltage: 5 V (±10 %)
- Mechanical Design: Modular with stator coupling
- Connection Type: Integrated cable with D-sub connector
| Brand | HEIDENHAIN |
|---|---|
| Model | ERN 120 5000 01-03 |
