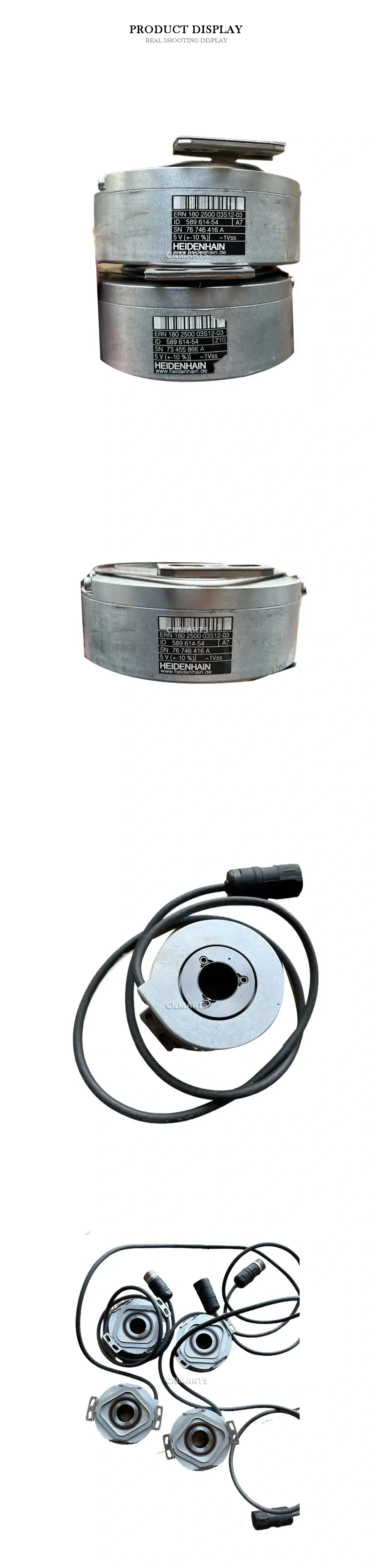

Heidenhain ERN 180 2500 03S12-03 Incremental Rotary Encoder
The Heidenhain ERN 180 2500 03S12-03 is a high-performance incremental rotary encoder engineered for precision in industrial automation and motor feedback applications. It features a high resolution of 2500 lines per revolution, ensuring accurate position and speed measurement. Designed with a convenient blind hollow shaft and a robust stator coupling, this encoder offers secure and reliable mounting directly to the drive shaft. Operating on a 5 V DC (± 10%) power supply and delivering standard ~1 Vss sinusoidal output signals, it is highly compatible with a wide range of drive systems and industrial controllers.
Technical Specifications:
- Brand: Heidenhain
- Model: ERN 180 2500 03S12-03
- ID Number: 589 614-54
- Resolution: 2500 lines per revolution
- Output Signal: ~1 Vss sinusoidal
- Supply Voltage: 5 V DC (± 10%)
- Mechanical Design: Blind hollow shaft
- Mounting: Stator coupling
| Brand | HEIDENHAIN |
|---|---|
| Model | ERN 180 2500 03S12-03 |
