Hyundai HiTH-22H Thermal Overload Relay
Protect your motors with the Hyundai HiTH-22H Thermal Overload Relay. Features an adjustable 12A-18A current range, selectable manual/auto reset, and integrated auxiliary contacts for reliable motor overload protection.
Payment Methods:
-
Online Support 24/7
-
12 Months Warranty for New Products
-
30 Days Money Back Guarantee
Hyundai HiTH-22H Thermal Overload Relay

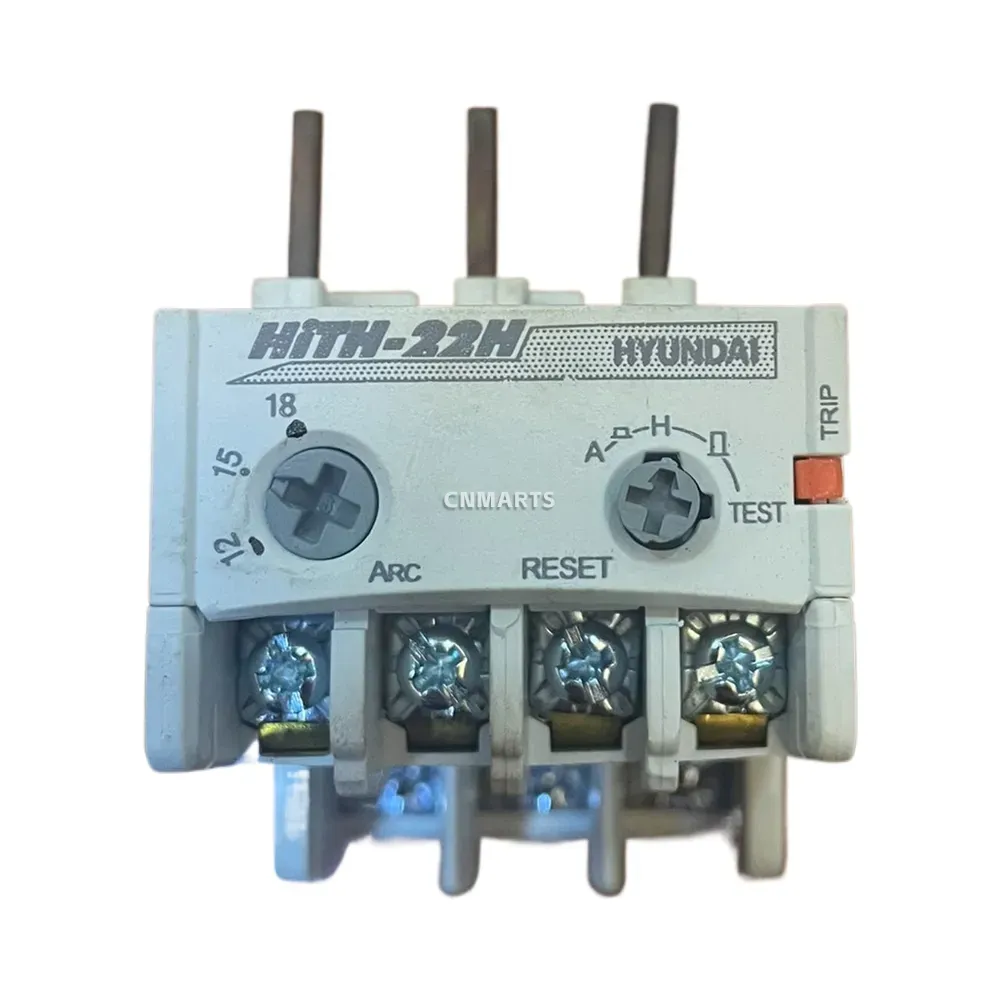

The Hyundai HiTH-22H is a high-performance thermal overload relay engineered for reliable motor protection against overcurrents and phase failures. It features a user-friendly, adjustable current setting dial with a clear range from 12A to 18A, allowing for precise configuration to match your motor’s full load current. This model offers operational flexibility with a selectable reset mode for either Automatic (A) or Manual (H) operation. For diagnostics and maintenance, it is equipped with a convenient TEST button and a visual TRIP indicator. The integrated auxiliary contacts, 1NO (97-98) for signaling and 1NC (95-96) for the trip circuit, ensure seamless integration into your control system. Manufactured in Korea and compliant with major international standards like IEC/EN 60947 and VDE 0660, the HiTH-22H provides a robust and dependable solution for industrial motor applications.
Technical Specifications:
- Model: HiTH-22H
- Brand: Hyundai
- Current Setting Range: 12A – 18A
- Rated Insulation Voltage (Ui): 690V~

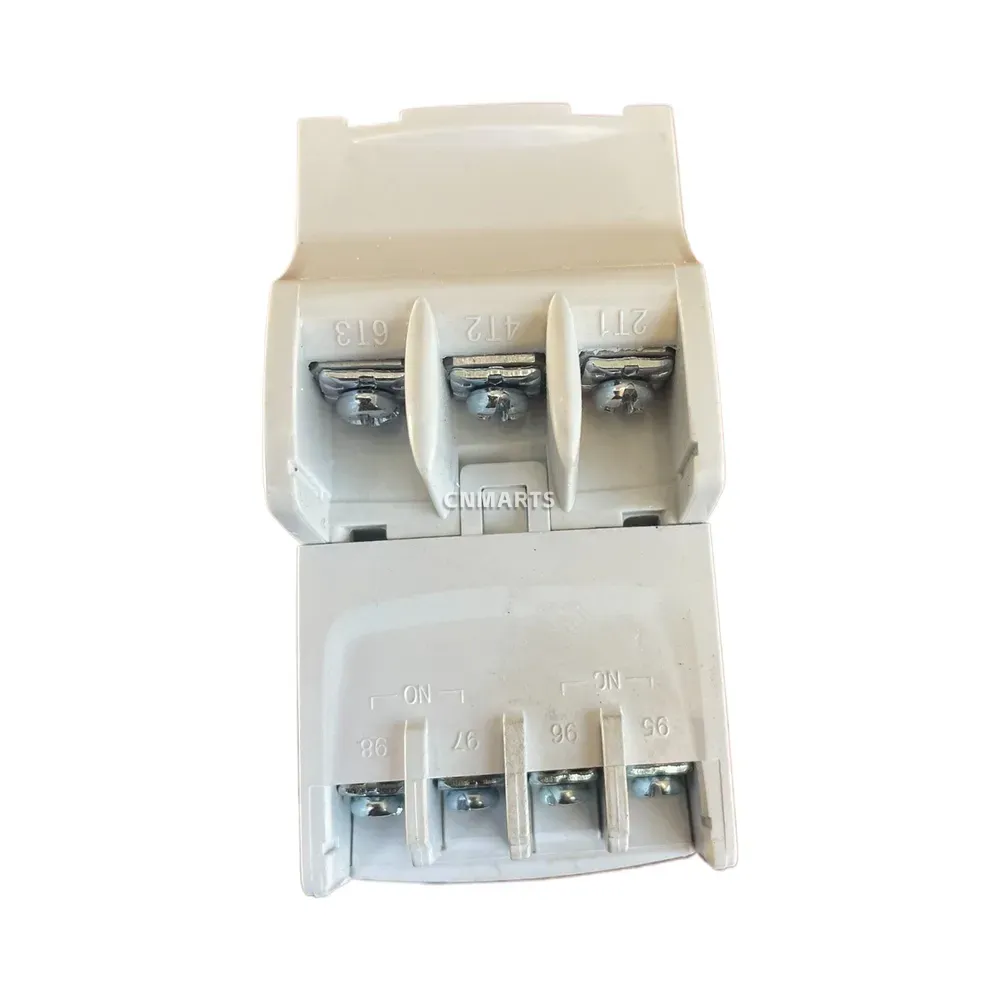

- Auxiliary Contacts: 1NO (97-98) + 1NC (95-96)
- Reset Mode: Manual (H) / Automatic (A) Selectable
- Standards: IEC/EN 60947, VDE 0660
| Brand | HYUNDAI |
|---|---|
| Model | HiTH-22H |
