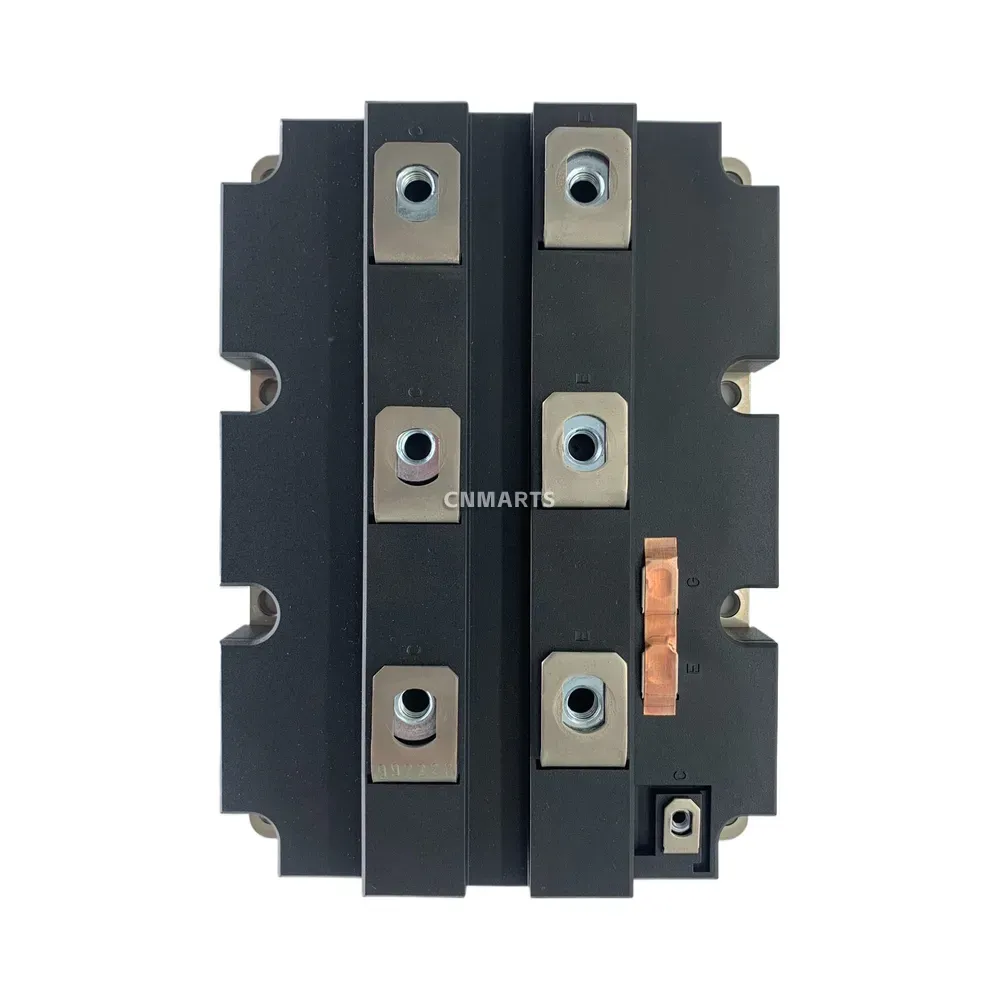

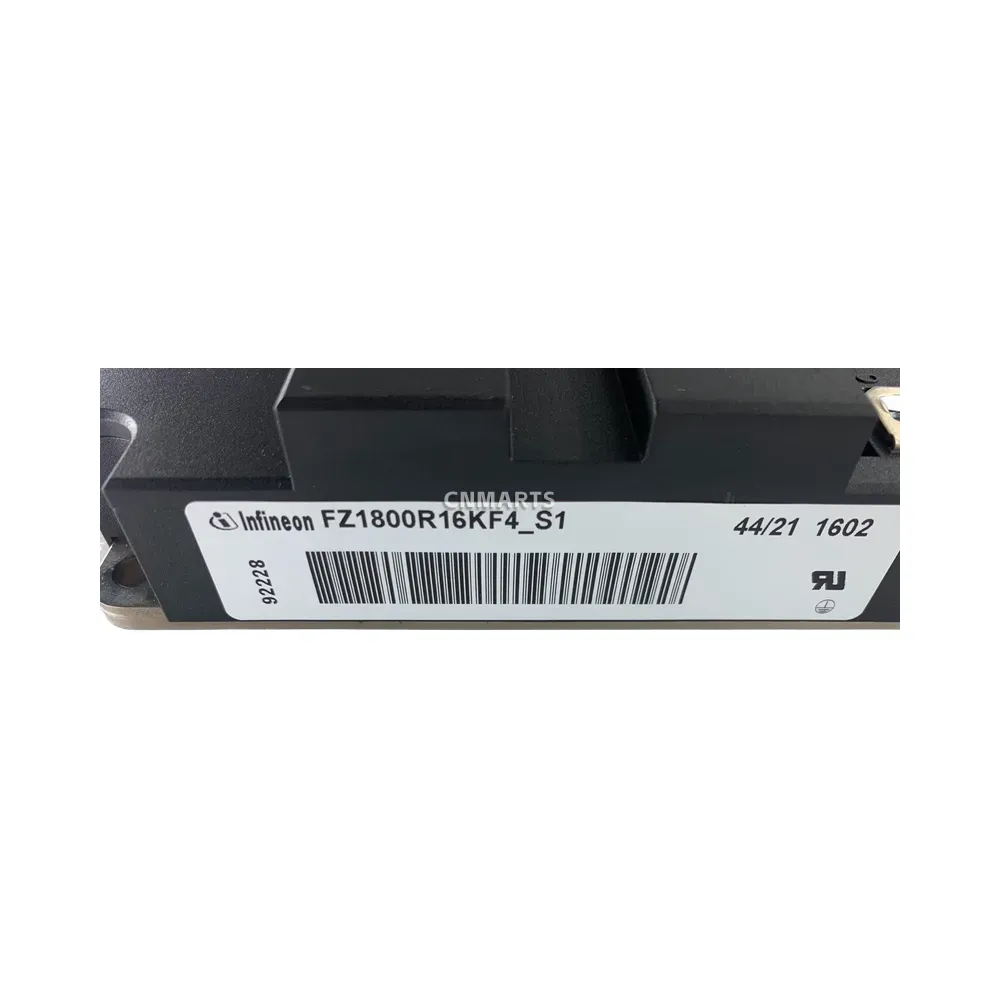

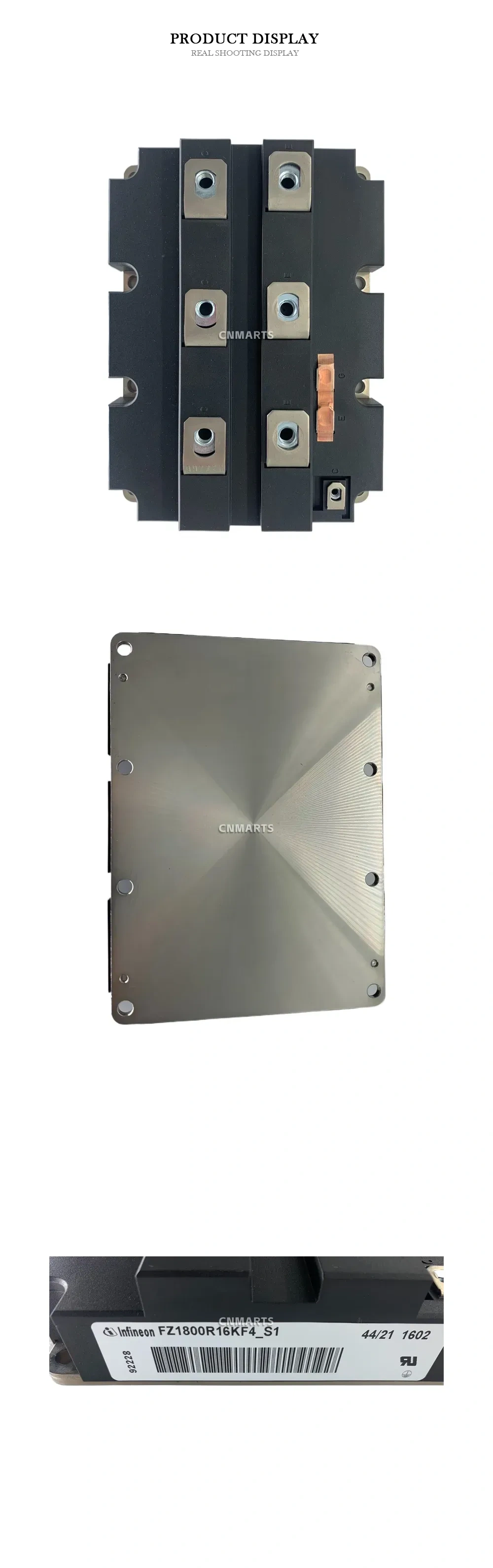

Infineon FZ1800R16KF4_S1 IGBT Module

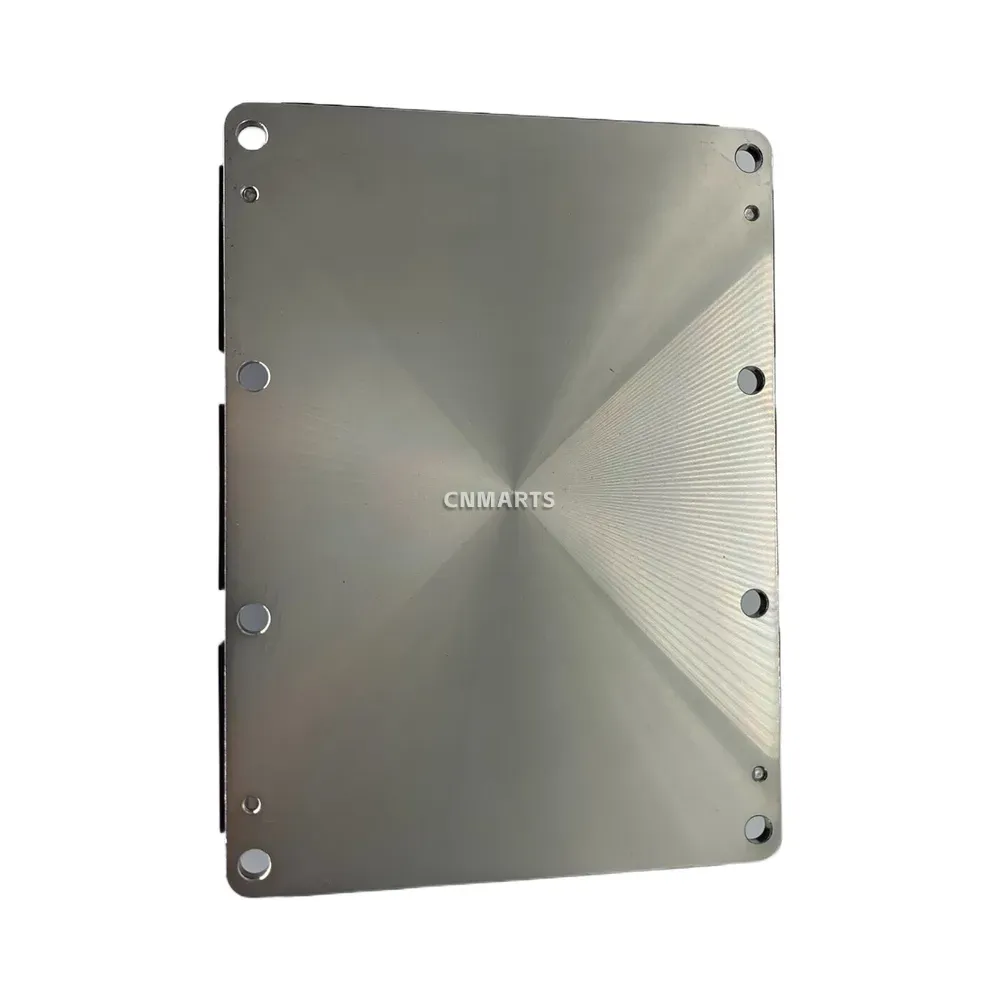

The Infineon FZ1800R16KF4_S1 is a high-power single-switch IGBT module designed for demanding industrial applications. Encased in an IHV-B package, this module delivers exceptional performance with a nominal current rating of 1800A and a blocking voltage of 1600V. It incorporates advanced Trench/Fieldstop IGBT4 technology and a soft, fast-recovery diode, ensuring low switching losses and high efficiency. The robust design, featuring a large clearance and creepage distance and an isolated baseplate, makes it ideal for high-reliability systems such as industrial motor drives, high-power converters, renewable energy inverters, and traction applications.
Technical Specifications:
- Collector-Emitter Voltage (V_CES): 1600 V
- Continuous Collector Current (I_C nom): 1800 A (@ T_C = 80°C)
- Total Power Dissipation (P_tot): 16.0 kW (@ T_C = 25°C)
- Gate-Emitter Voltage (V_GES): ±20 V
- Housing / Package: IHV-B
| Brand | Infineon |
|---|---|
| Model | FZ1800R16KF4_S1 |
