Jetter JL3-0250-25-3RVP 3-Phase PM Servo Motor
Optimize your industrial automation with the Jetter JL3-0250-25-3RVP 3-Phase PM Servo Motor. Featuring 2.5Nm nominal torque, 4500 RPM, 320V DC operation, and an IP65 protection rating, this robust motor delivers exceptional precision and reliability for demanding motion control applications.
Payment Methods:
-
Online Support 24/7
-
12 Months Warranty for New Products
-
30 Days Money Back Guarantee
Jetter JL3-0250-25-3RVP 3-Phase PM Servo Motor

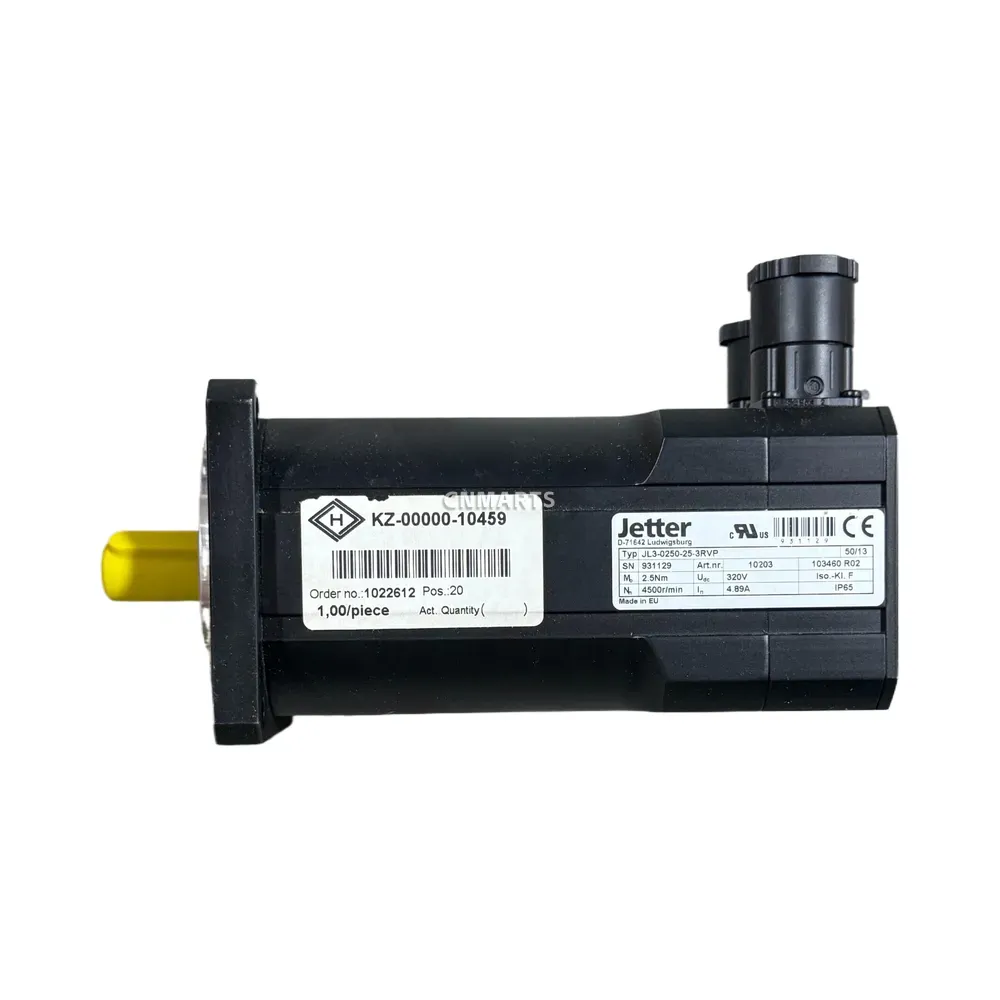

The Jetter JL3-0250-25-3RVP is a high-performance 3-phase permanent magnet (PM) servo motor engineered for precision industrial automation and advanced motion control. Manufactured in the EU, this robust motor delivers a nominal torque of 2.5 Nm and achieves a nominal speed of 4500 r/min, ensuring dynamic and highly accurate operational performance. Driven by VPWM, it operates efficiently at a DC voltage of 320V with a nominal current of 4.89A and a stall current of 5.8A. Built to withstand demanding factory environments, the JL3-0250-25-3RVP features an IP65 protection rating against dust and low-pressure water jets, Class F insulation for excellent thermal resistance, and is rated for an ambient operating temperature of up to 40°C.
Technical Specifications:
- Brand: Jetter
- Model: JL3-0250-25-3RVP
- Motor Type: 3-Phase Permanent Magnet (PM) Servo Motor
- Nominal Torque (Mn): 2.5 Nm
- Nominal Speed (Nn): 4500 r/min
- Nominal Current (In): 4.89 A
- Stall Current (Io): 5.8 A
- DC Voltage (Udc): 320 V
- Drive Type: VPWM driven
- Protection Rating: IP65
- Insulation Class: F
- Ambient Temperature (Tamb): 40°C
- Origin: Made in EU
| Brand | Jetter |
|---|---|
| Model | JL3-0250-25-3RVP |
