JRCS SRS-HNPSJ-3 AC440V SRS Timer (Time Delay Relay)
The JRCS SRS-HNPSJ-3 is a highly reliable AC440V SRS Timer engineered for precision in demanding industrial and marine electrical control systems. Manufactured by JRCS MFG CO.LTD., this PCB module type time delay relay offers exceptional versatility with a built-in 2-position range set switch, allowing operators to easily select between four timing ranges spanning from 0.2 seconds to 60 minutes. The unit is designed with dual contact functionality, featuring one instant contact (1c) and one time delay contact (1c) to support complex circuit operations. For streamlined maintenance and monitoring, it includes intuitive visual diagnostics: a green LED to confirm 440V AC power supply and a red LED to indicate active on-delay operation.
Technical Specifications:
- Manufacturer / Brand: JRCS MFG CO.LTD.
- Model Number: SRS-HNPSJ-3

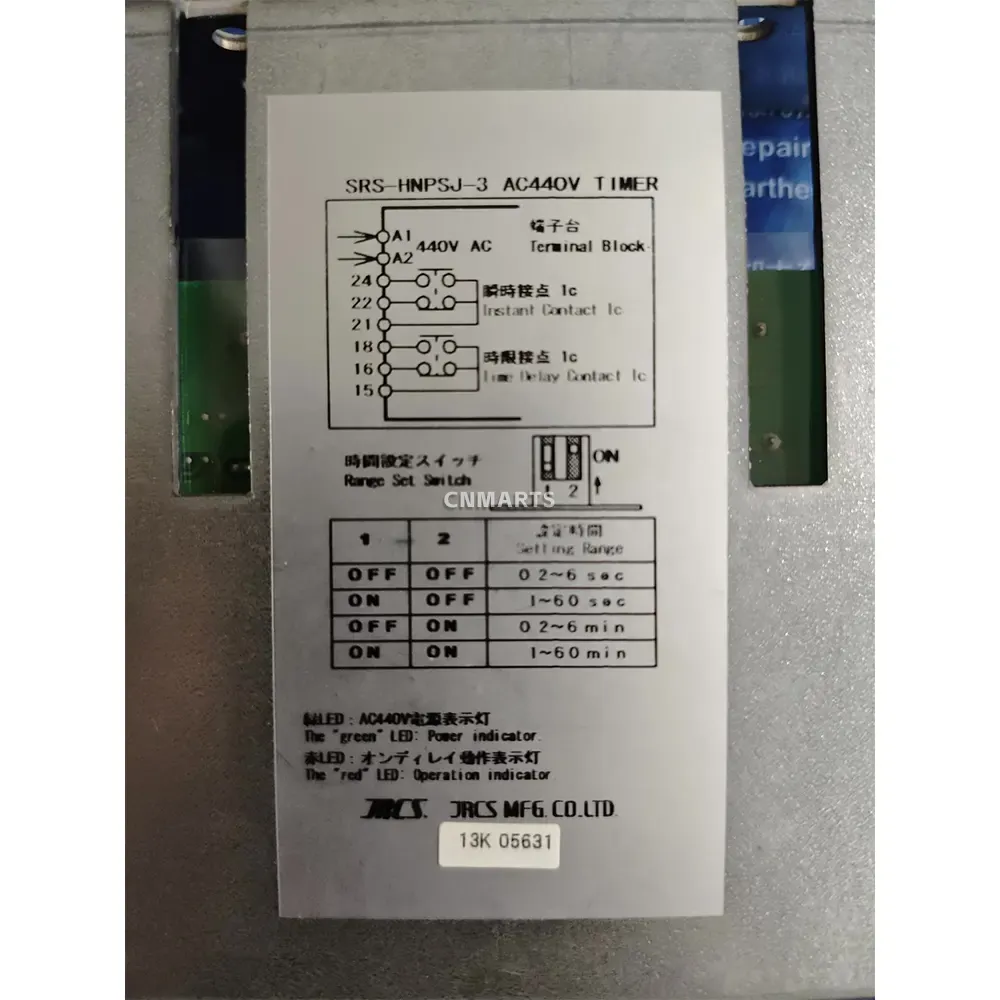

- Power Supply / Rated Voltage: 440V AC (Terminal Block A1/A2)
- Contact Configuration: 1 Instant Contact 1c (Terminals 24-22-21) and 1 Time Delay Contact 1c (Terminals 18-16-15)
- Time Setting Ranges: 0.2-6 sec, 1-60 sec, 0.2-6 min, 1-60 min (Selectable via 2-position switch)
- LED Indicators: Green LED (AC440V Power Indicator) and Red LED (On-Delay Operation Indicator)

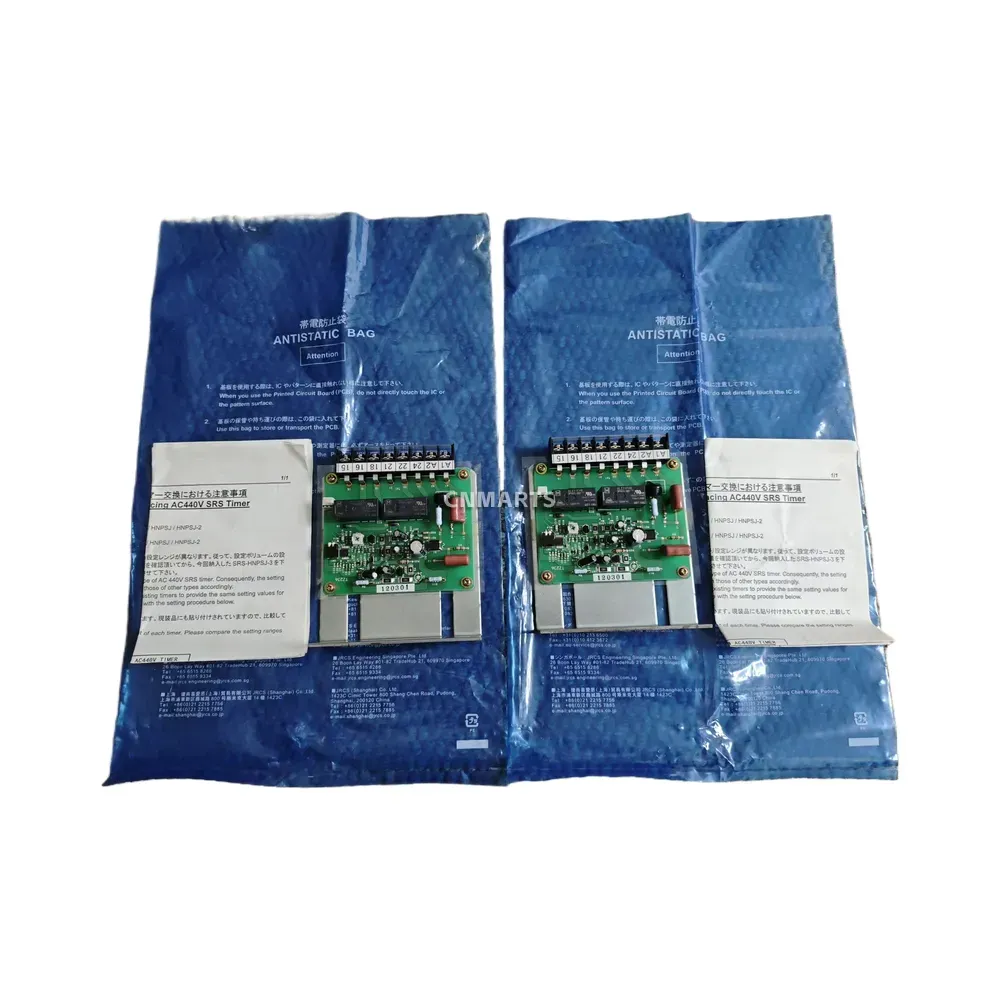

- Module Type: PCB Module Type with Terminal Block
| Brand | JRCS |
|---|---|
| Model | SRS-HNPSJ-3 |
