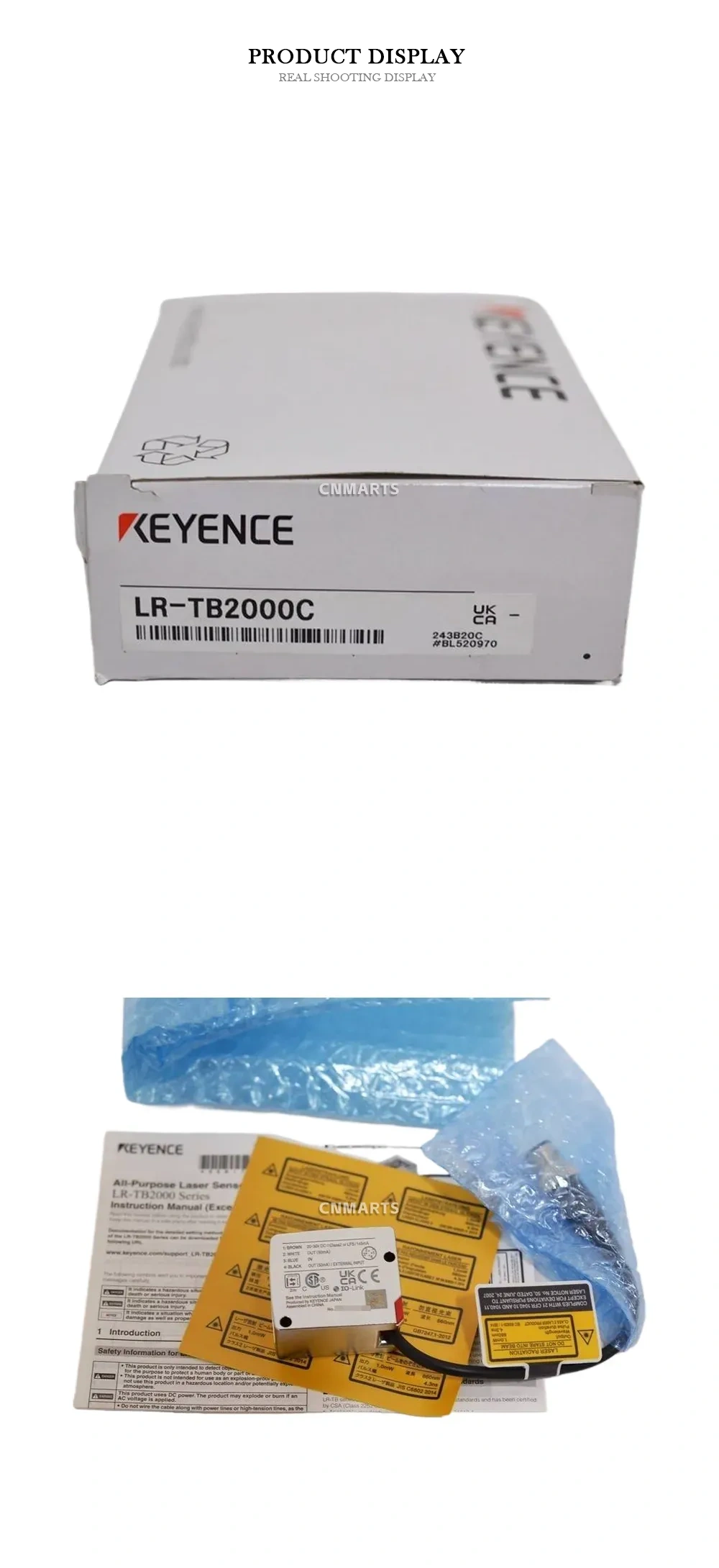

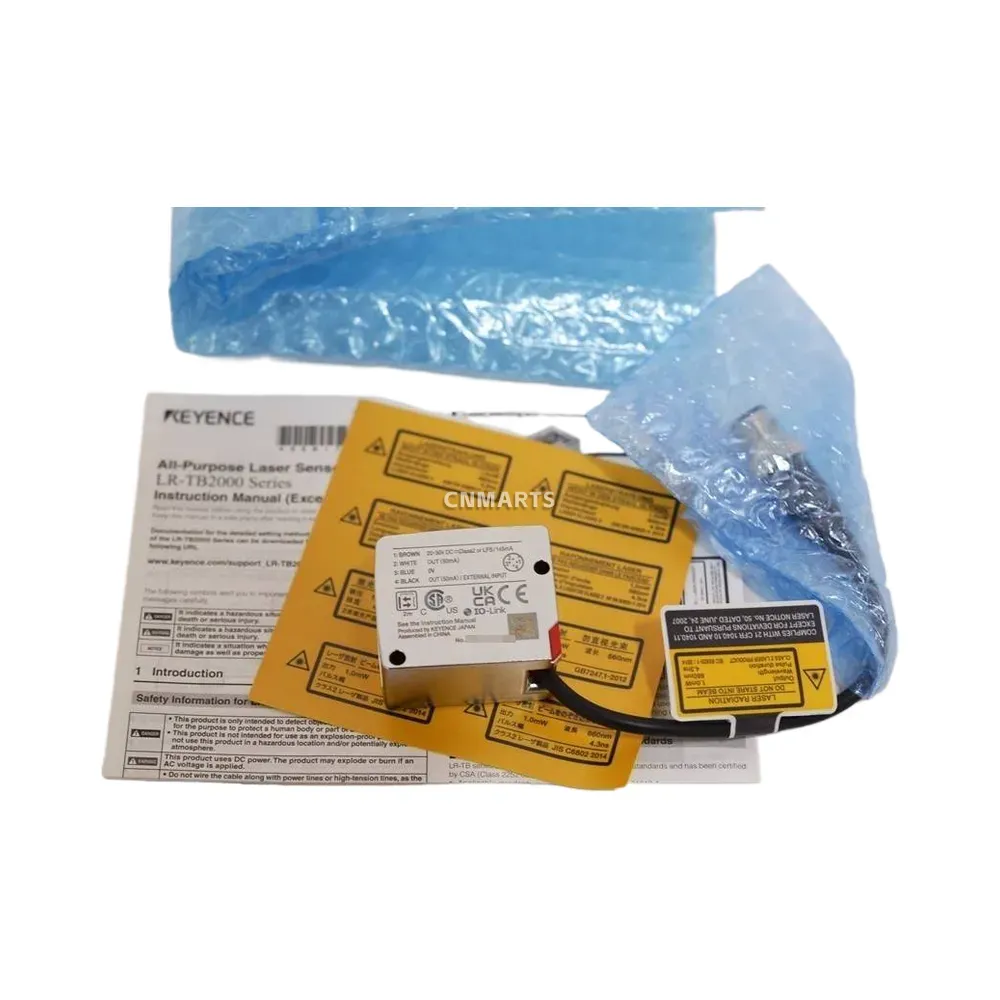

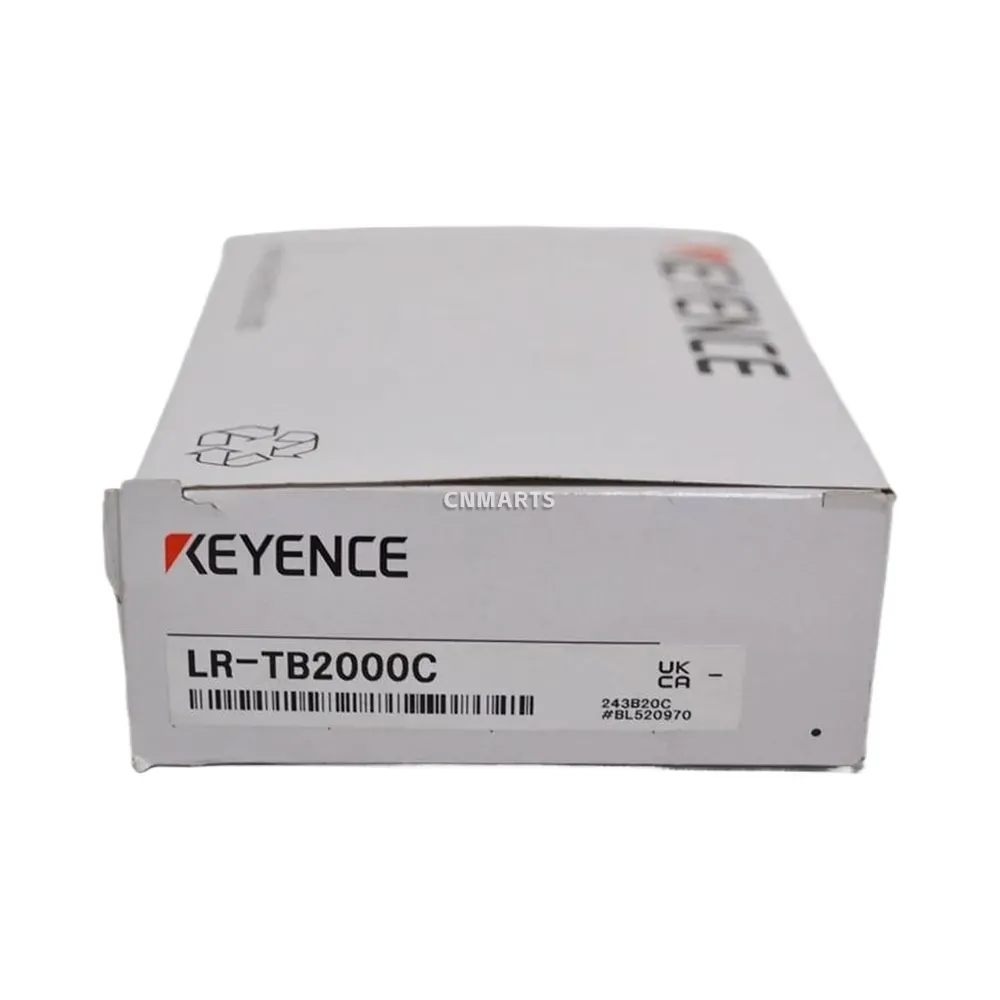

KEYENCE LR-TB2000C TOF Laser Sensor with Built-in Amplifier
The KEYENCE LR-TB2000C is an all-purpose Time-of-Flight (TOF) laser sensor designed to deliver highly stable and accurate detection for a wide range of industrial automation applications. Equipped with a built-in amplifier and IO-Link compatibility, this sensor allows for seamless integration into smart manufacturing systems while providing real-time data and diagnostics. It utilizes a Class 1 visible red laser (650 nm peak wavelength) to ensure safe operation and precise target detection regardless of object color, surface finish, or angle. Operating on a 10-30 VDC power supply, it features highly configurable outputs and external input capabilities via a standard 4-pin connector. The LR-TB2000C meets stringent global standards, including CE, UKCA, UL/CSA, and FDA laser safety regulations, making it a reliable choice for global deployment.
Technical Specifications:
- Manufacturer / Brand: KEYENCE
- Model Number: LR-TB2000C
- Sensor Type: All-purpose Time-of-Flight (TOF) Laser Sensor with Built-in Amplifier
- Power Supply: 10-30 VDC (Class 2 or LPS), 100 mA max
- Light Source: Class 1 Laser Product (Peak wavelength: 650 nm, Pulse duration: 4.7 ms, Output: 1.5 mW)
- Wiring / Pin Configuration: Pin 1 (Brown): 10-30V DC | Pin 2 (White): OUT (50mA) | Pin 3 (Blue): 0V | Pin 4 (Black): OUT (50mA) / External Input
- Interface / Communication: IO-Link Compatible
- Certifications: CE, UKCA, UL/CSA, GB7247.1-2012, 21 CFR 1040.10 and 1040.11
| Brand | KEYENCE |
|---|---|
| Model | LR-TB2000C |
