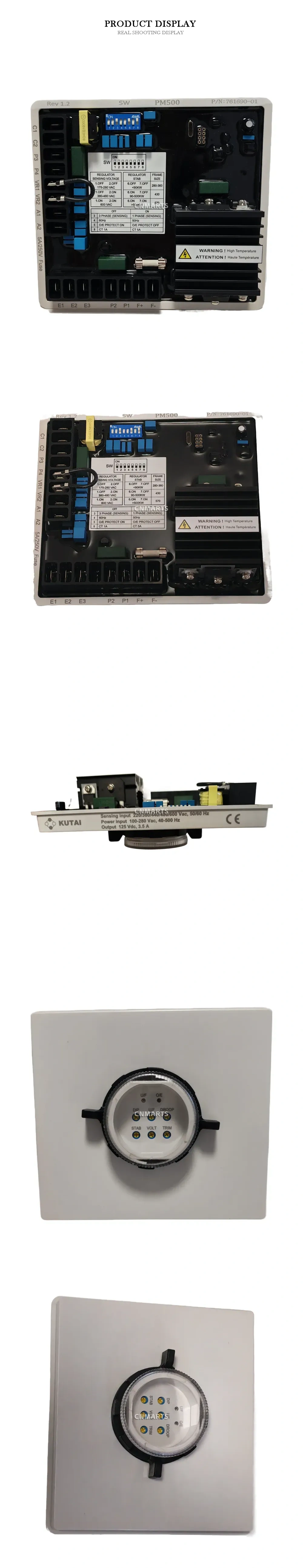

KUTAI PM500 Automatic Voltage Regulator
The KUTAI PM500 is a highly reliable and versatile Automatic Voltage Regulator (AVR) designed for optimal generator performance and voltage stability. It features a comprehensive 8-position DIP switch configuration, allowing users to precisely adjust the regulator sensing voltage (175-600 VAC), stability based on generator frame size (from under 90KW to over 500KW), phase sensing (1 or 3 phase), frequency (50/60 Hz), and CT settings (1A or 5A). Equipped with built-in adjustment potentiometers for STAB, VOLT, TRIM, DROOP, and U/F, the PM500 ensures highly customized and stable power delivery. Additional safety features include over-excitation (O/E) protection, a high-temperature warning indicator, and a built-in 5A/250V fuse. CE certified and built for durability, it is an excellent choice for demanding industrial generator applications.
Technical Specifications:
- Sensing Input: 220/380/440/480/600 Vac, 1 or 3 Phase, 50/60 Hz
- Power Input: 100-280 Vac, 40-500 Hz
- Excitation Output: 125 Vdc, 3.5 A
- DIP Switch Configurations: Sensing Voltage (175-600 VAC), Stability (500KW), Phase (1/3), Frequency (50/60Hz), O/E Protection (ON/OFF), CT (1A/5A)
- Potentiometer Adjustments: STAB (Stability), VOLT (Voltage), TRIM, DROOP, U/F (Under Frequency)
- Protection & Safety: High Temperature Warning, Over-Excitation (O/E) Protection, 5A/250V Fuse, CE Certified
| Brand | KUTAI |
|---|---|
| Model | PM500 |
