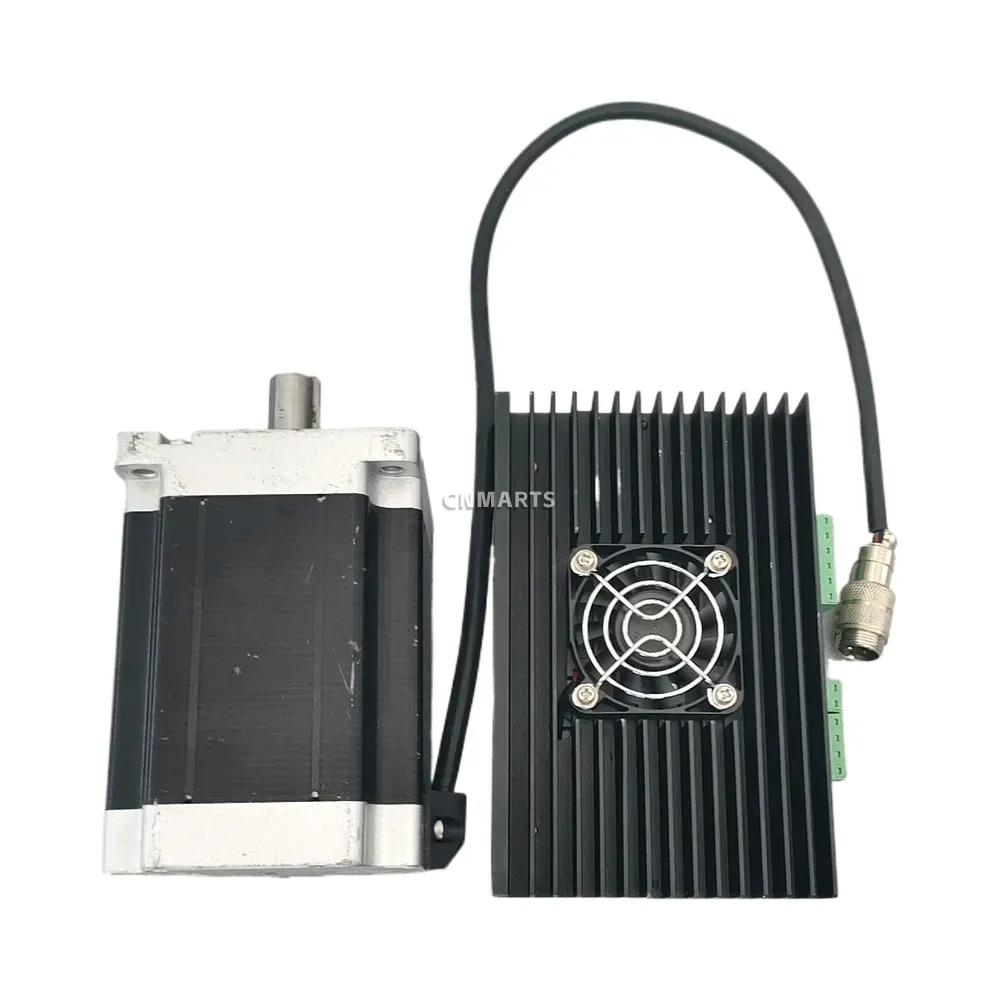

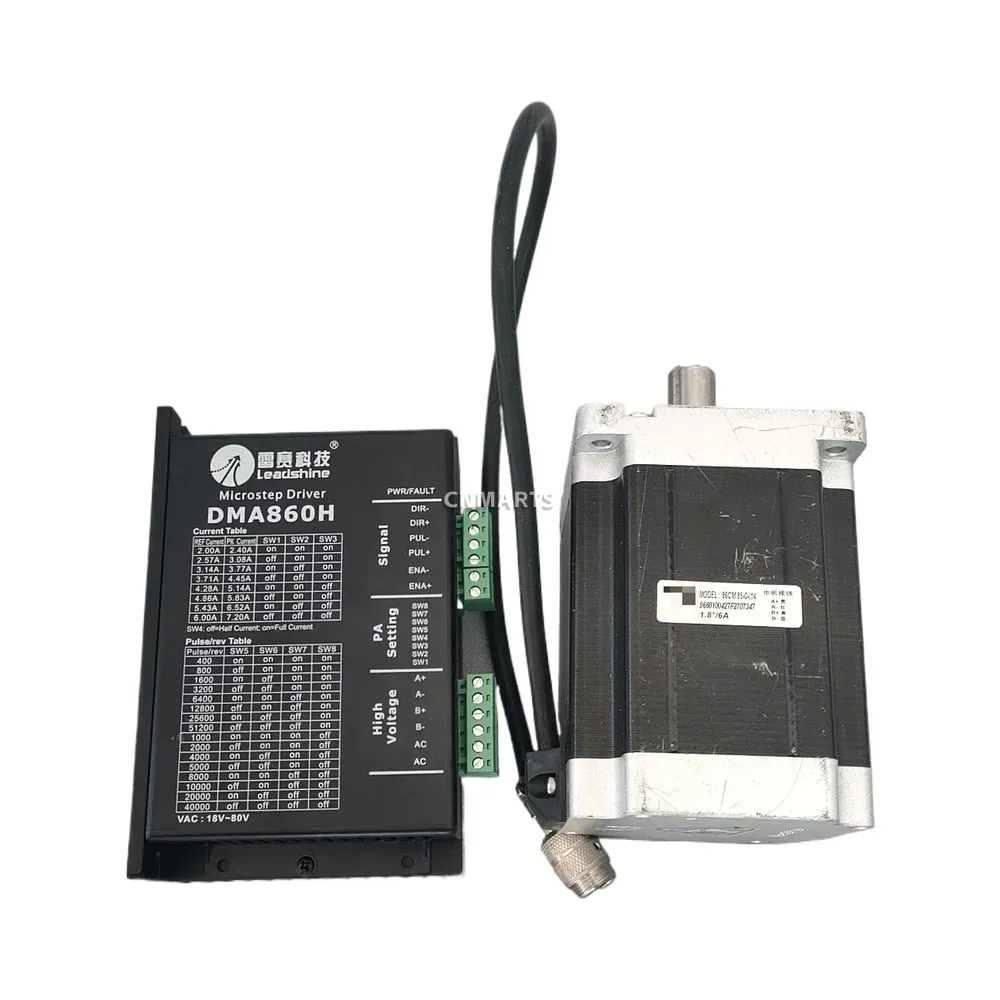

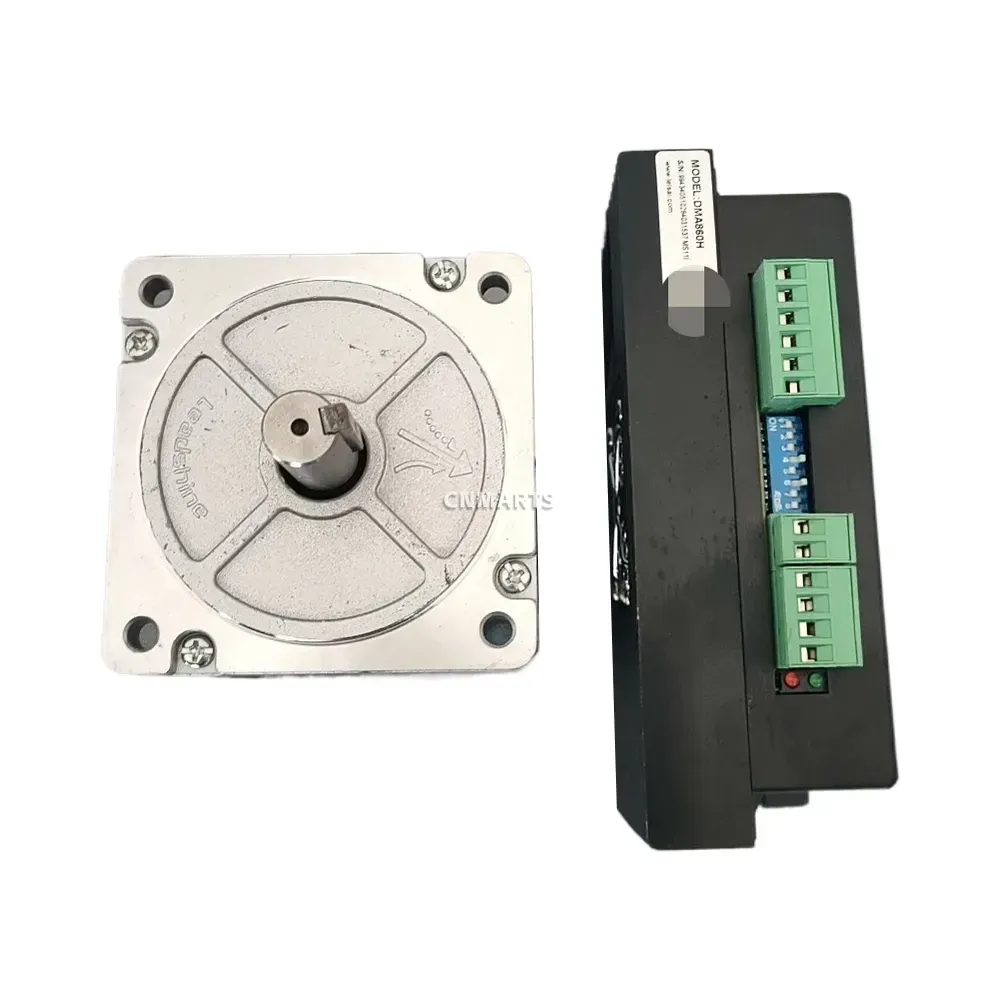

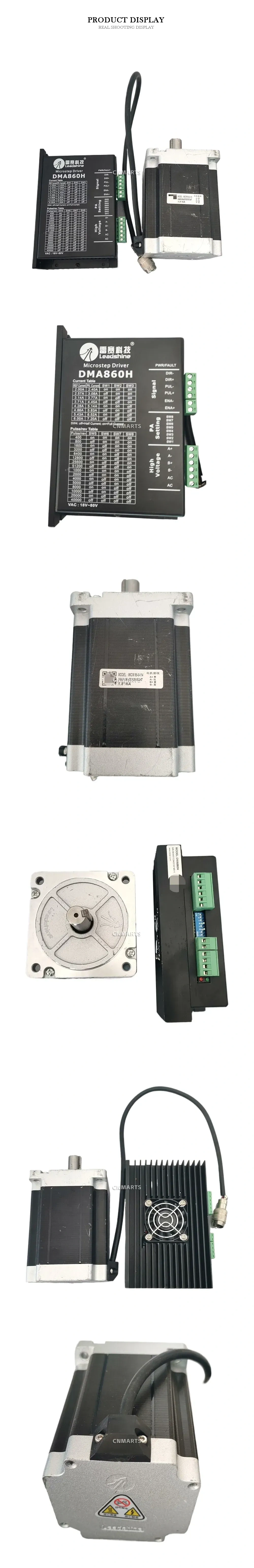

Leadshine DMA860H / 86CM85-6-J14 Stepper Motor and Driver Kit
Optimize your CNC routing and automation with the Leadshine DMA860H Driver and 86CM85-6-J14 NEMA 34 Stepper Motor Kit. Featuring an 18V-80V AC input, 6A motor rating, and up to 51,200 microstepping resolution, this kit guarantees smooth, precise, and high-torque motion control.
Payment Methods:
-
Online Support 24/7
-
12 Months Warranty for New Products
-
30 Days Money Back Guarantee
Leadshine DMA860H / 86CM85-6-J14 Stepper Motor and Driver Kit
Upgrade your CNC machinery and industrial automation systems with the high-performance Leadshine DMA860H Microstep Driver and 86CM85-6-J14 NEMA 34 Stepper Motor Kit. Designed for ultimate precision and reliability, the DMA860H driver accommodates a wide input voltage range of 18V to 80V AC, delivering exceptional high-speed performance and optimal torque output. Featuring easily accessible DIP switches, users can effortlessly fine-tune the output current from 2.00A to 6.00A RMS (up to 7.20A Peak) and select microstepping resolutions ranging from 400 to 51,200 pulses per revolution. The perfectly paired 86CM85-6-J14 NEMA 34 stepper motor delivers robust power with a 6A rated current and a precise 1.8-degree step angle, ensuring smooth motion, low heating, and minimal vibration for your most demanding applications.
Technical Specifications:
- Brand: Leadshine

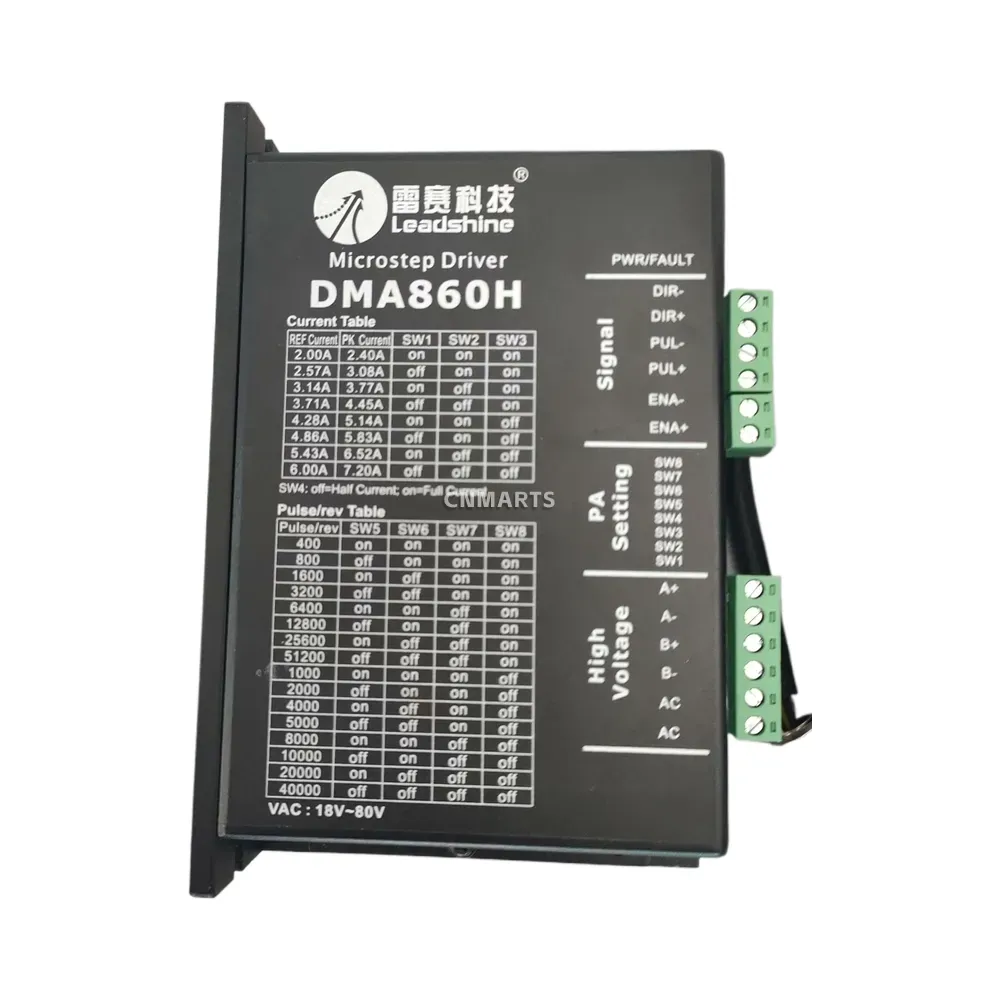

- Driver Model: DMA860H Microstep Driver

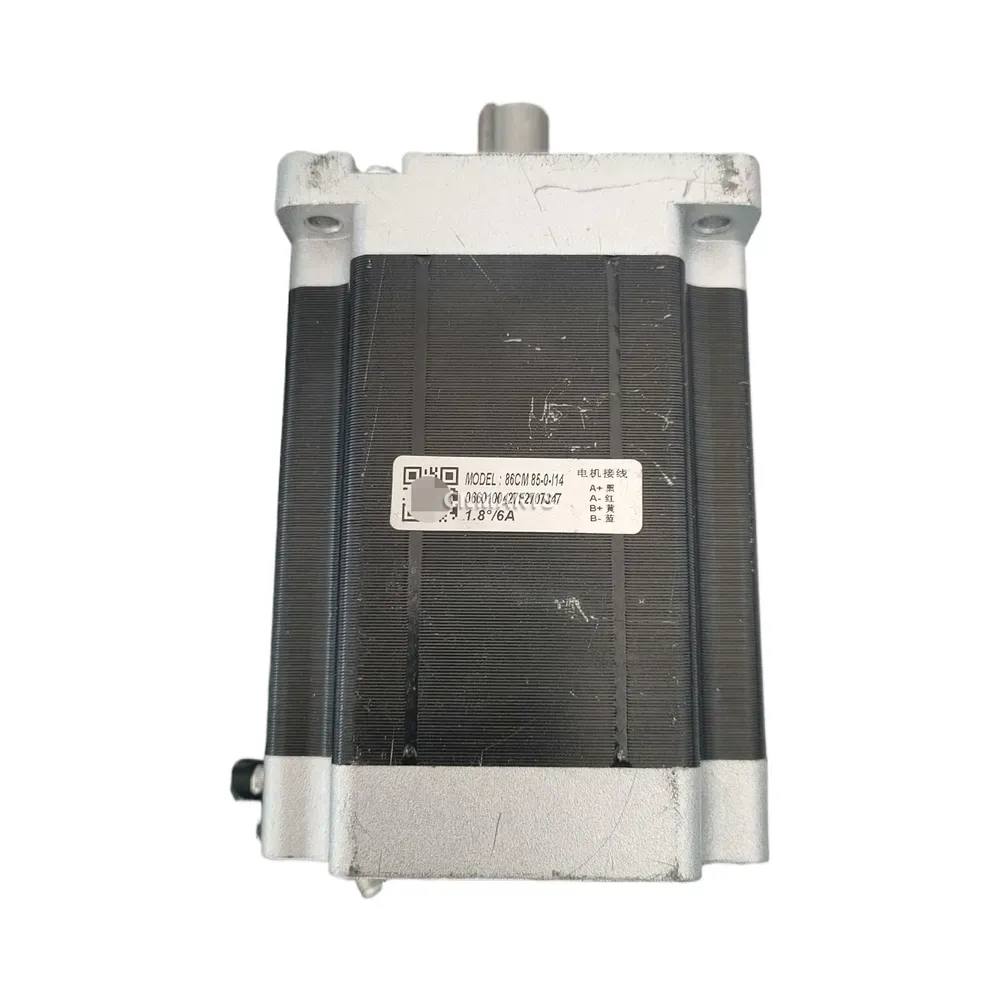

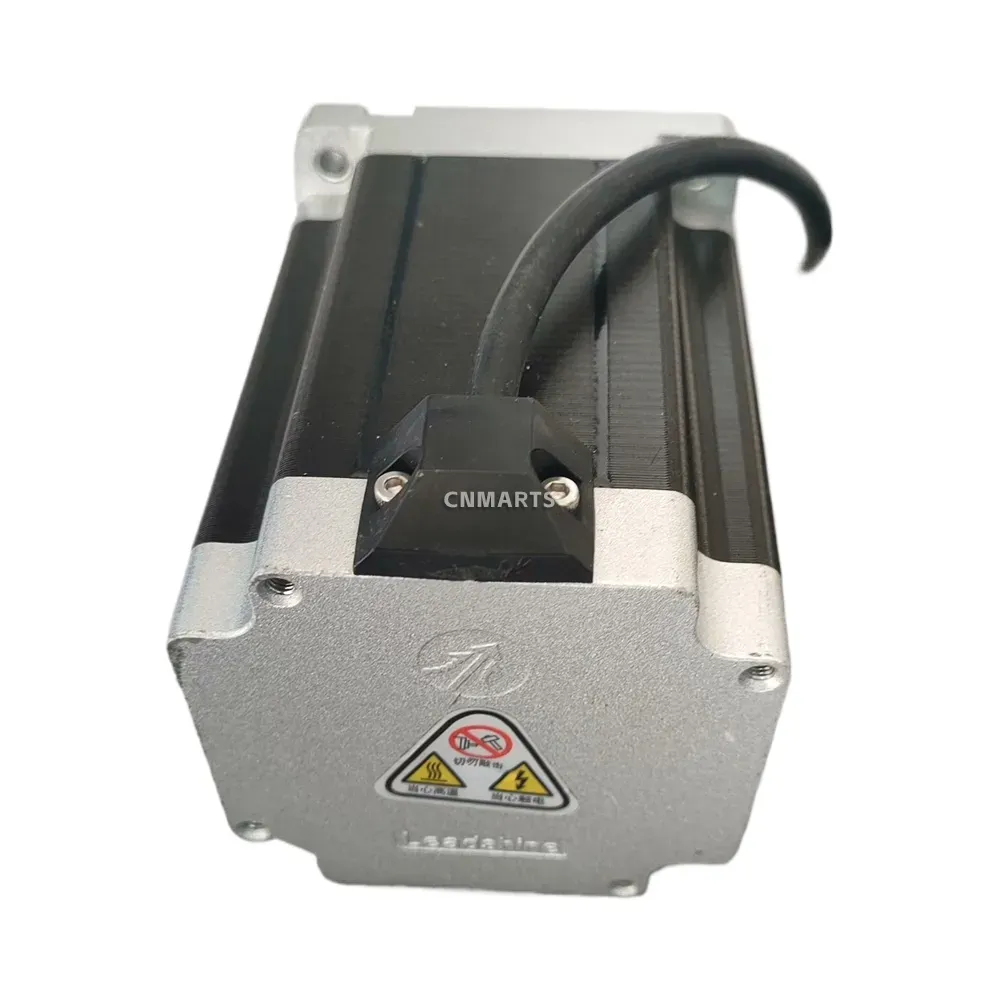

- Motor Model: 86CM85-6-J14 (NEMA 34 Stepper Motor)
- Driver Input Voltage: AC 18V – 80V
- Driver Output Current: 2.00A to 6.00A RMS (2.40A to 7.20A Peak), Adjustable via DIP switches
- Microstepping Resolution: 400 to 51,200 pulses/rev (16 selectable settings)
- Motor Step Angle: 1.8 Degrees
- Motor Rated Current: 6A
- Motor Wiring Configuration: A+ (Black), A- (Red), B+ (Yellow), B- (Blue)
- Current Modes: Selectable Half Current (SW4=off) or Full Current (SW4=on)
| Brand | Leadshine |
|---|---|
| Model | DMA860H / 86CM85-6-J14 |
