LEM LF 505-S Current Transducer

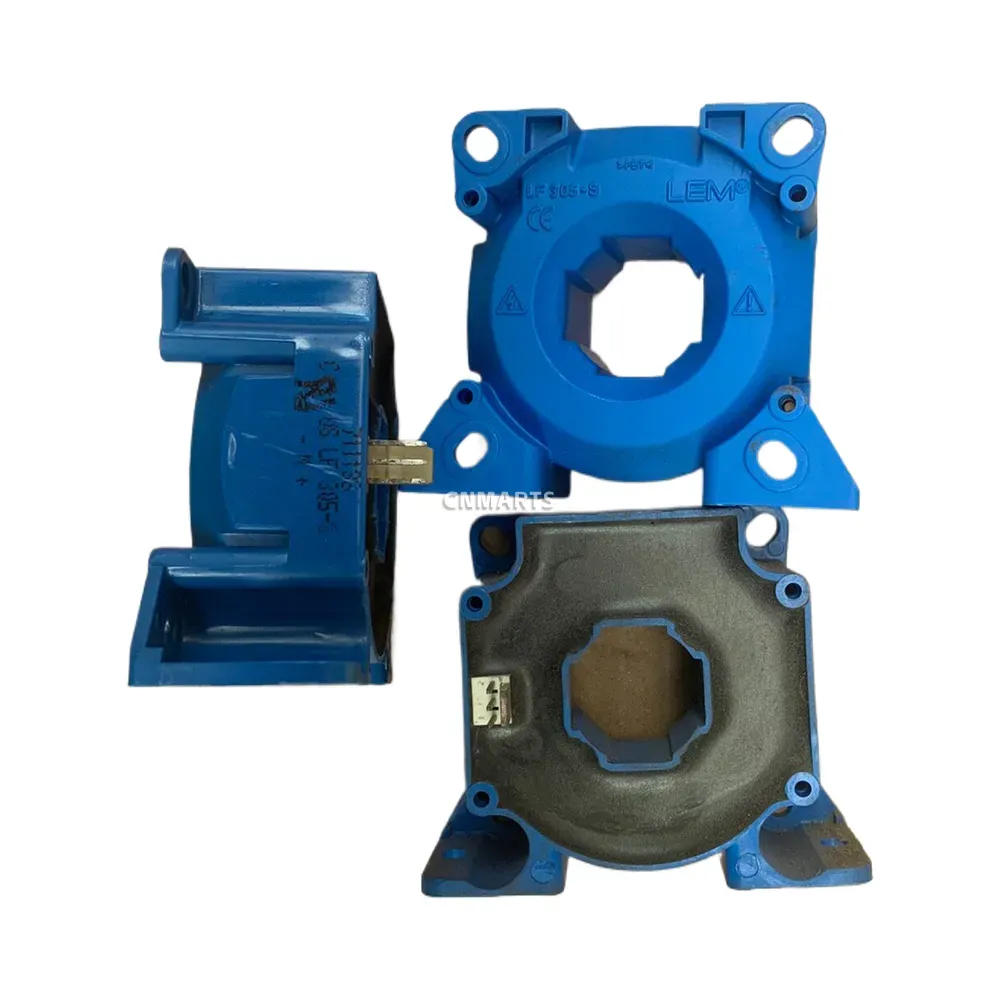

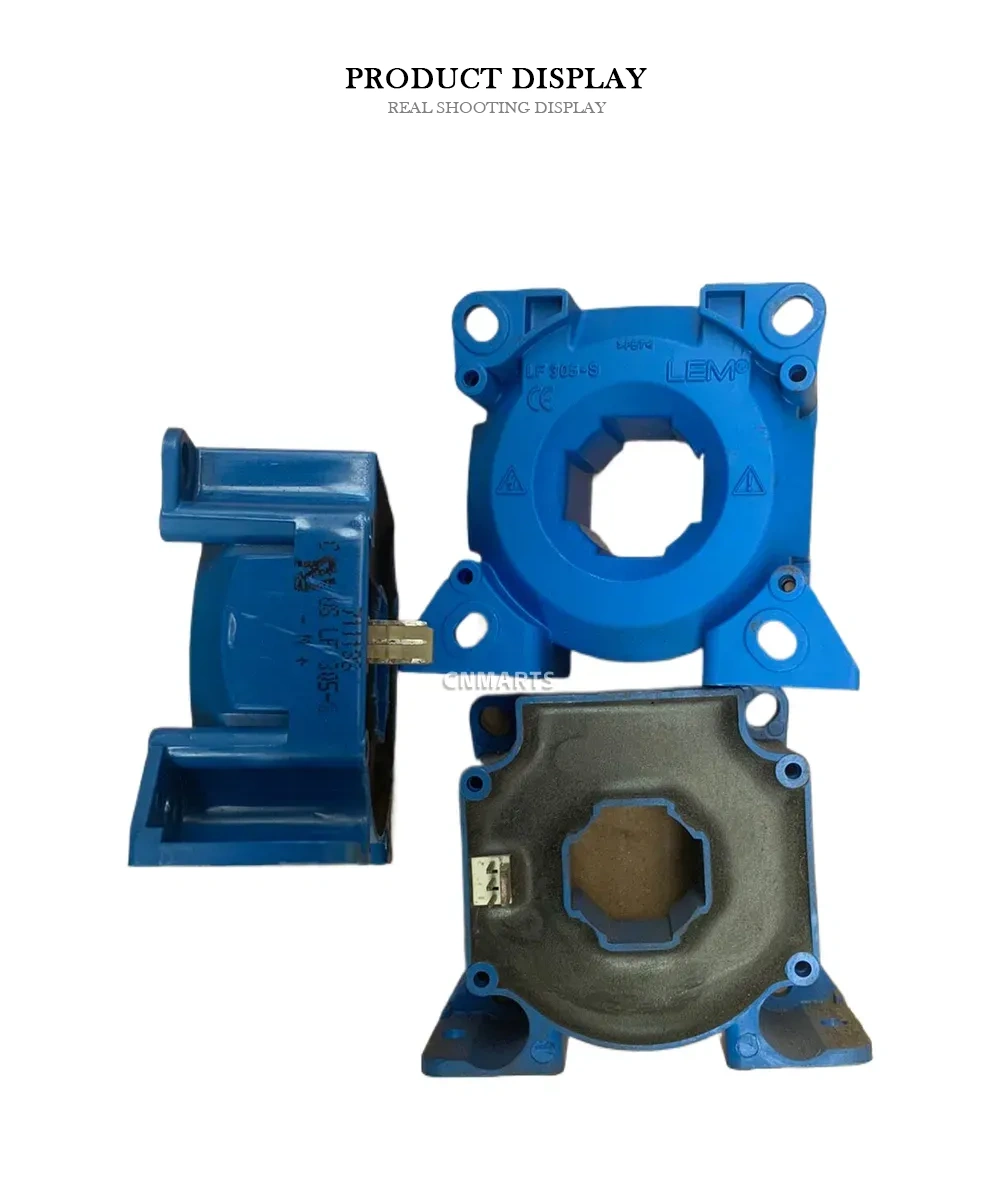

The LEM LF 505-S is a high-performance closed-loop (compensated) current transducer that operates on the Hall effect principle. It is engineered for the precise electronic measurement of DC, AC, and pulsed currents, providing complete galvanic separation between the primary high-power circuit and the secondary electronic circuit. Housed in a robust blue plastic case, its design facilitates easy panel mounting. The LF 505-S is ideal for demanding industrial applications, including AC variable speed drives, static converters for DC motor drives, battery-supplied applications, and uninterruptible power supplies (UPS), where accuracy and reliability are critical.
Technical Specifications:
- Primary Nominal RMS Current (I_PN): 500 A
- Primary Current Measuring Range: 0 .. ± 700 A
- Supply Voltage (V_C): ± 15 V (± 5 %)
- Overall Accuracy @ I_PN, T_A = 25°C: ± 0.6 %
| Brand | LEM |
|---|---|
| Model | LF 505-S |
