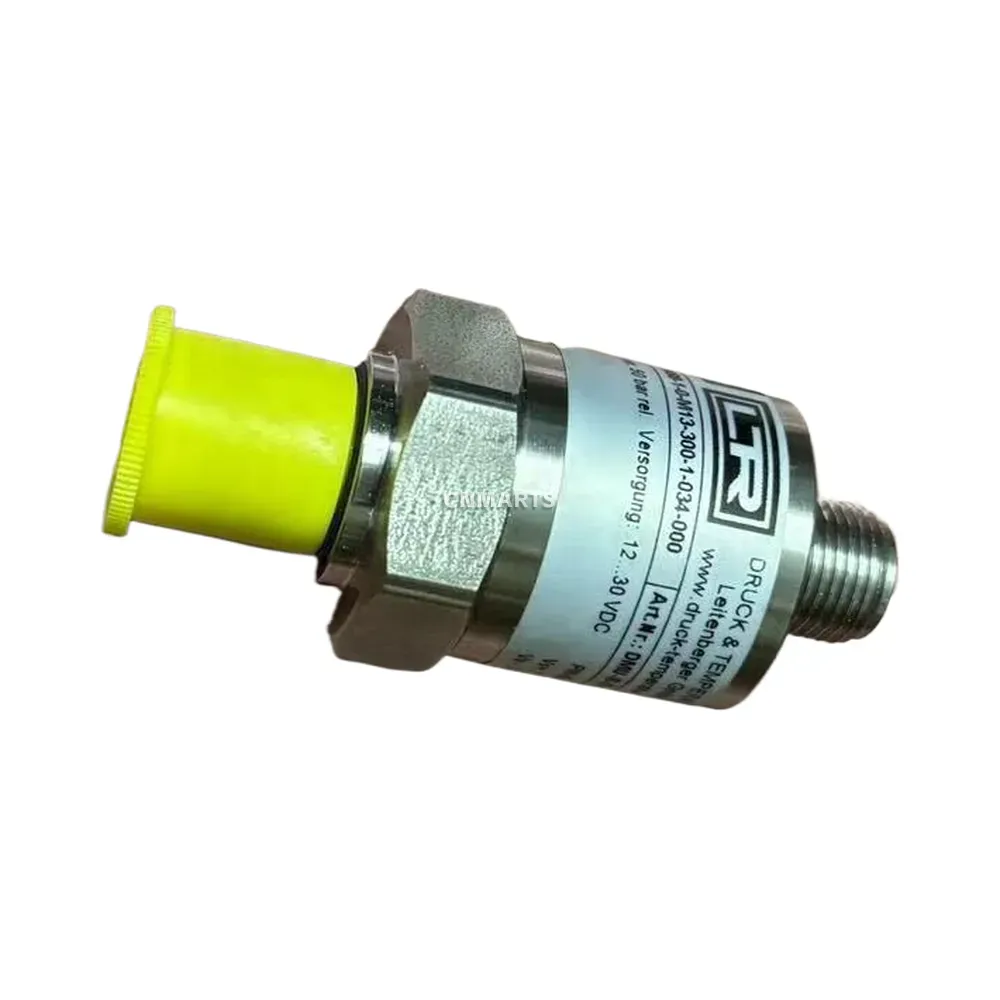

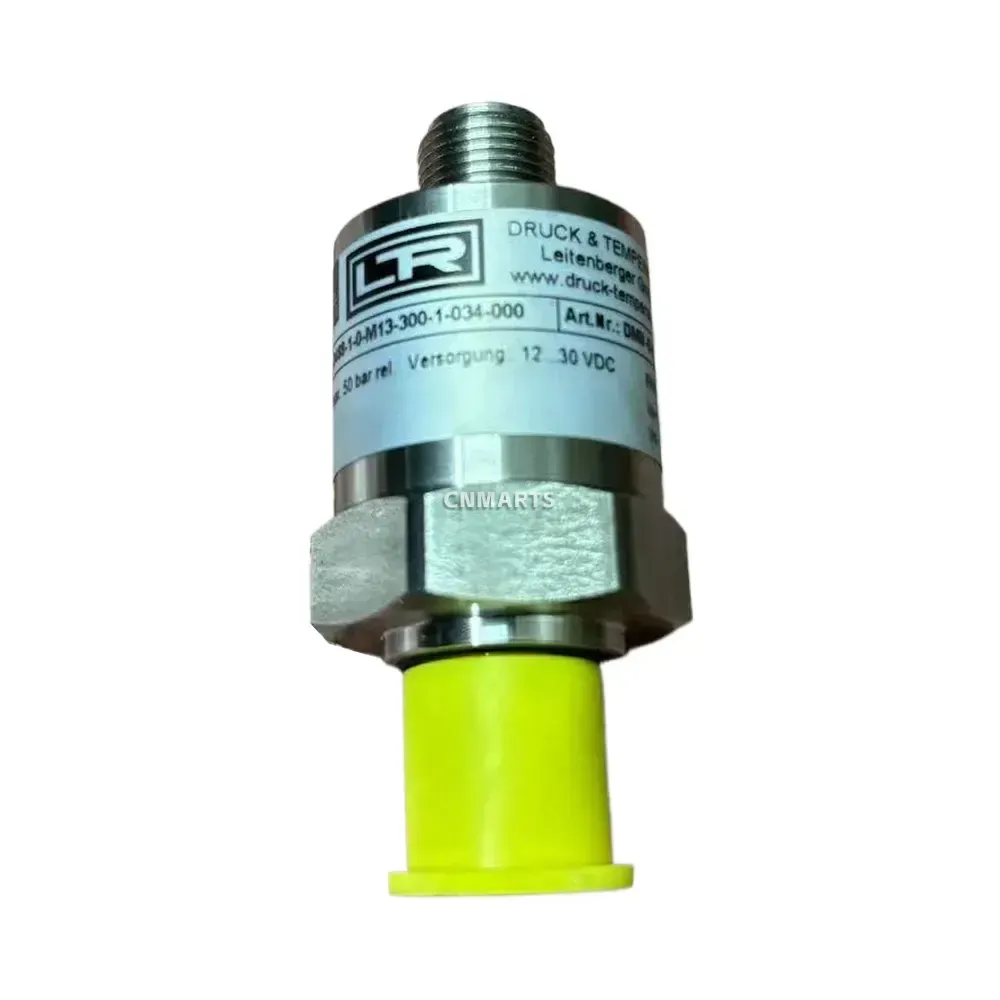

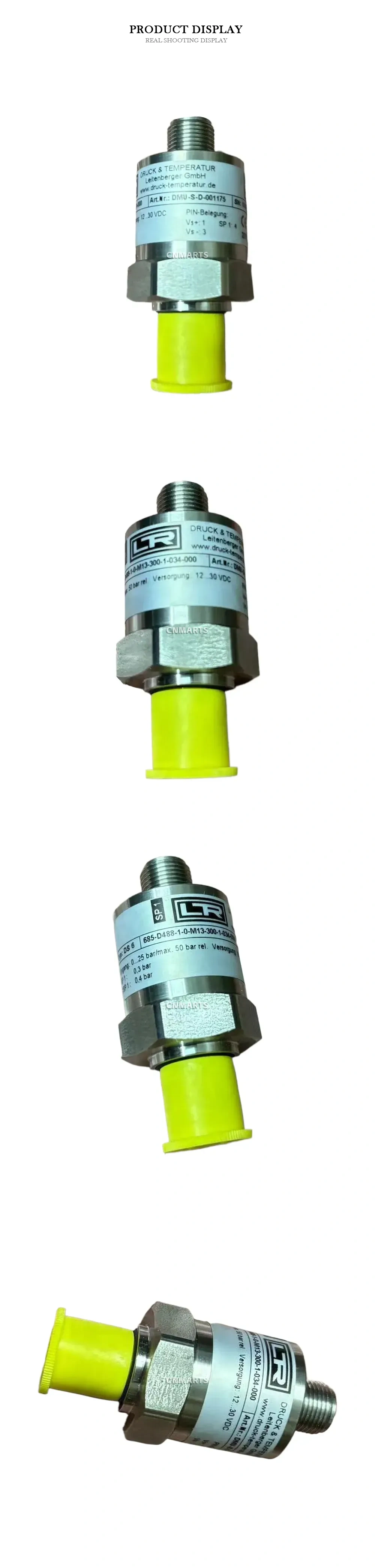

LTR (Leitenberger / Druck & Temperatur) 685-D488-1-0-M13-300-1-034-000 Pressure Sensor
The LTR (Leitenberger / Druck & Temperatur) 685-D488-1-0-M13-300-1-034-000, also designated as Type DS 6, is a robust and highly accurate industrial pressure sensor and transmitter designed for demanding fluid and gas monitoring applications. Constructed with a durable stainless steel housing and featuring a secure threaded process connection, it is engineered to withstand rigorous industrial environments. This transmitter delivers precise measurements within a 0 to 25 bar relative range and provides excellent safety with a maximum overload capacity of 50 bar relative. Operating on a 12 to 30 VDC supply voltage, it integrates seamlessly into automated control systems via its standardized pin configuration and reliable switching output capabilities.
Technical Specifications:
- Brand: LTR (Leitenberger / Druck & Temperatur)
- Model: 685-D488-1-0-M13-300-1-034-000 (Type: DS 6)
- Article Number (Art.Nr.): DMU-S-D-001175
- Measuring Range: 0…25 bar relative
- Maximum Overload: 50 bar relative
- Supply Voltage: 12…30 VDC

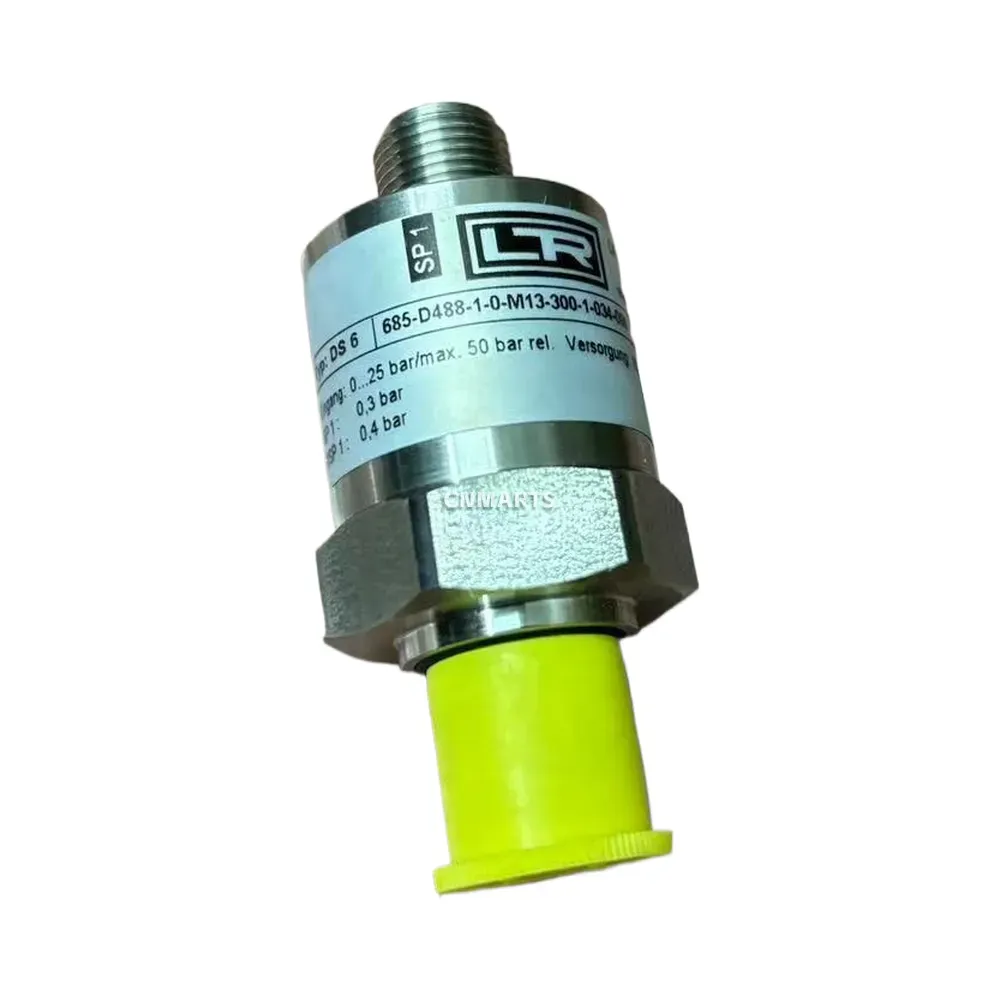

- Switching Points (SP1): 0.3 bar / 0.4 bar

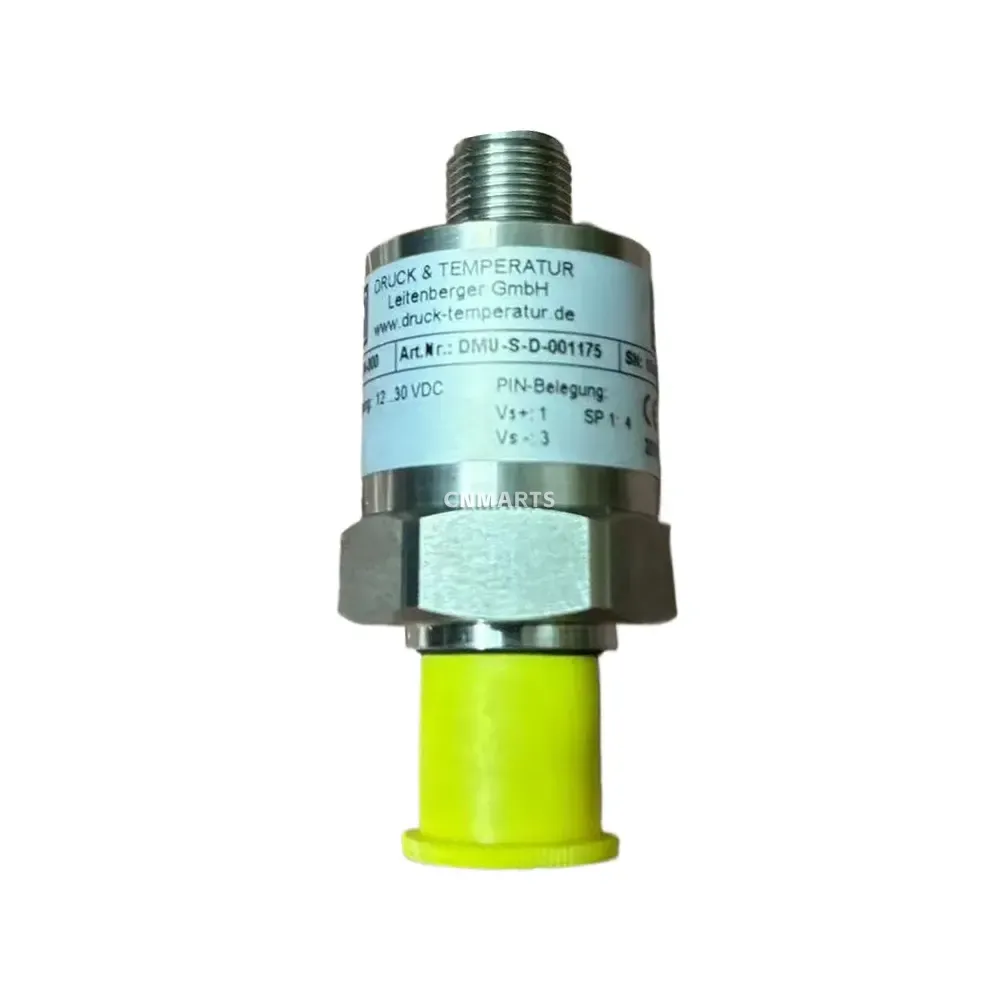

- Pin Assignment: Vs+ = Pin 1, Vs- = Pin 3, SP1 = Pin 4
- Housing Material: Stainless steel with hexagonal mounting nut
| Brand | LTR (Leitenberger / Druck & Temperatur) |
|---|---|
| Model | 685-D488-1-0-M13-300-1-034-000 |
