M28A-T PCB Assembly
M28A-T PCB Assembly
M28A-T PCB Assembly
M28A-T PCB Assembly
    M28A-T PCB Assembly
    M28A-T PCB Assembly
    M28A-T PCB Assembly
    M28A-T PCB Assembly

    M28A-T PCB Assembly

    The M28A-T PCB Assembly (P/N: 1.14.12.1365, Rev.A) is an industrial-grade printed circuit board engineered for reliable control, data processing, and hardware interfacing. Built on a durable green PCB with a strict 94V-0 flammability rating (UL E207844), this module is driven by a Silicon Motion SC667379CVM4B controller to ensure efficient system management. It is fully equipped with high-performance memory components, including Spansion MLC1G2008H00 flash memory for secure firmware retention and ISSI IS43DR16640C-3DBLI DDR2 DRAM for rapid operational caching. Additionally, the board features integrated power regulation circuitry, a precision crystal oscillator, and dual edge connectors to guarantee stable and seamless integration with compatible host systems.

    Technical Specifications:

    • Model & Part Number: M28A-T / P/N: 1.14.12.1365 (160307 Rev.A)
    • Main Controller: Silicon Motion SC667379CVM4B
    • Flash Memory: Spansion MLC1G2008H00
    • System Memory (DRAM): ISSI IS43DR16640C-3DBLI (DDR2)
    • PCB Specifications: STM-5 standard, 94V-0 flammability rating, UL File E207844
    • Hardware Features: Onboard power regulation, crystal oscillator, and dual edge connectors for interfacing

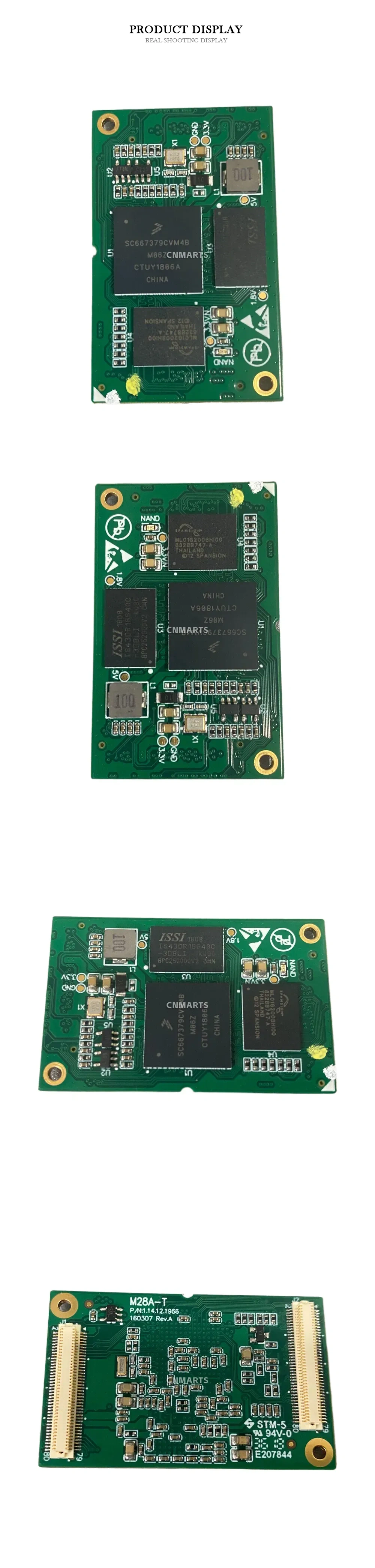

    M28A-T PCB Assembly Description

    ModelM28A-T
