maxon motor DEC 50/5 Digital Amplifier
The maxon motor DEC 50/5 is a high-performance, 1-quadrant digital amplifier designed for the efficient speed control of brushless DC (EC) motors with Hall sensors. This compact and cost-effective controller operates in speed control mode (closed loop) and can be easily configured without complex software. Adjustments for speed, current limits, and operational modes are made directly on the unit via potentiometers and DIP switches. Its wide input voltage range and 5A continuous current rating make it a versatile solution for a variety of motion control applications where precise speed regulation is required.
Technical Specifications:
- Amplifier Type: 1-Quadrant Digital Speed Controller
- Supply Voltage (Vcc): 10 VDC to 50 VDC
- Max. Continuous Output Current: 5 A
- Motor Compatibility: Brushless DC (EC) motors with Hall sensors
- Set Value Input (Speed): Analog, 0 to +5 V

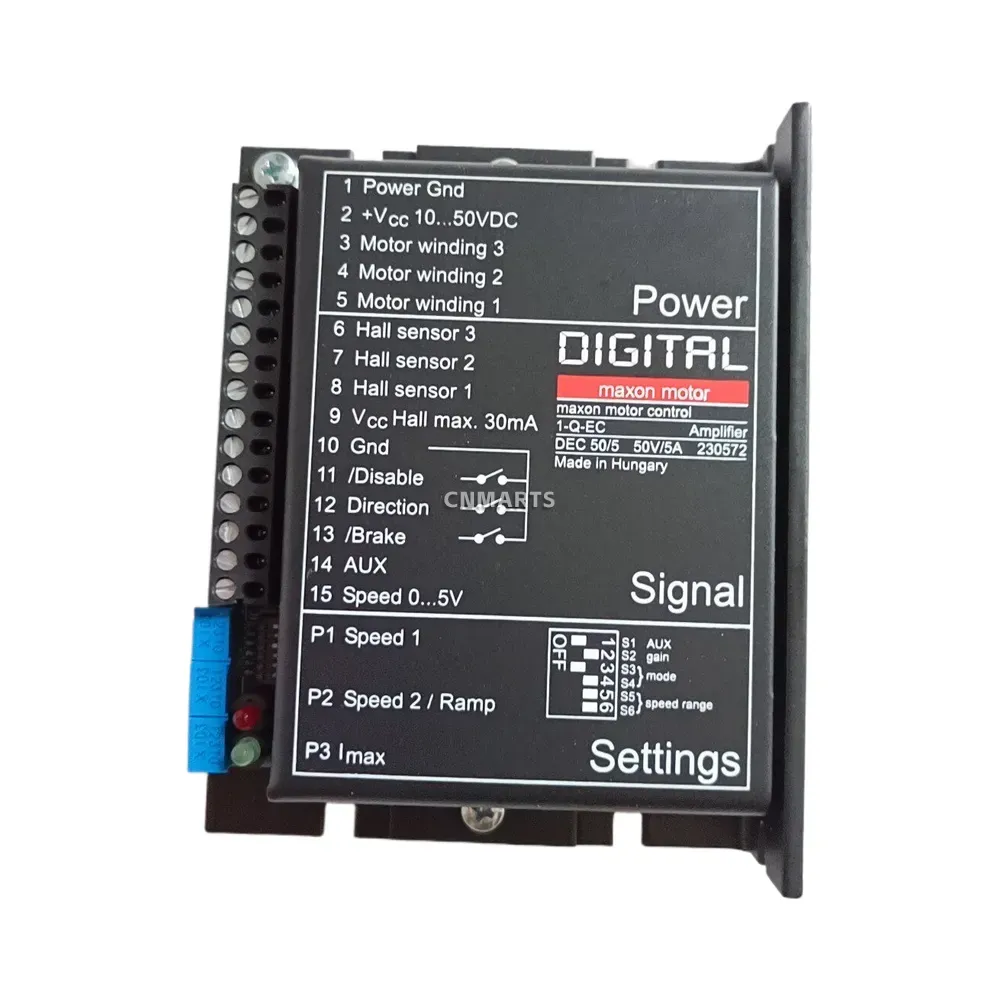

- Configuration: Potentiometers for Speed 1, Speed 2/Ramp, and Max. Current (Imax)
- Digital Inputs: Enable, Direction, Brake
| Brand | maxon motor |
|---|---|
| Model | DEC 50/5 |
